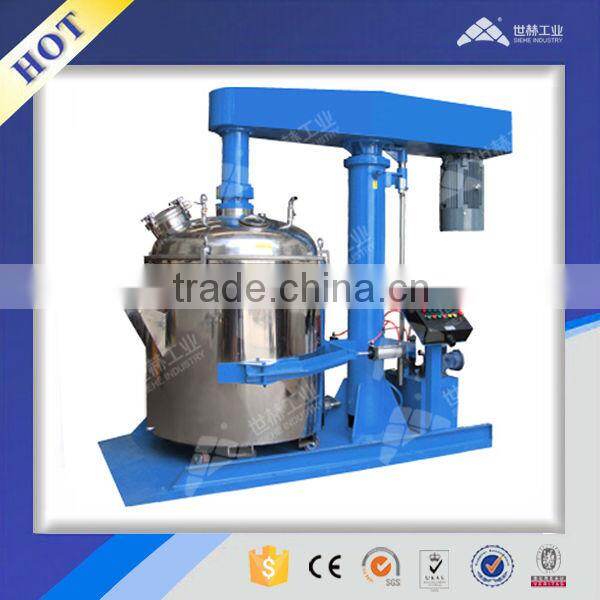

Vacuum/closed High Speed Disperser
- Vacuum High-speed Disperser is a functional machine developed based on the standard High-speed Disperser. A closed lid, with spring seal ring mounted in a milling groove of the cover flange, is completely closed with tank and ensures no air leakage under vacuum operation surroundings.
- Vacuum pumps are option whose limited vacuum degree can be -0.0998mpa(20mbar). It shows excellent performance during special dispersing condition such as vacuum defoaming, vacuum charging, inert gases protection and etc..
- [Materials Viscosity]: ≤100000 cps
- [Production Capacity]: 50-10000L
- [Application Industry]Prefect meet the requirement of dispersing and mixing materials in industries such as biology, pharmaceuticals, food, paint, ink, adhesive, pigment, pesticide and etc..
- [Application Materials]Good for all kinds of slurries with viscosity less than 100,000cps, and solid content less than 60%, such as emulsion paint, industrial paint, water-based ink, pesticide, adhesive and etc.
Technique Parameters:
Model | Capacity(L) | Power | Speed | Disc Dia(mm) | Lift(mm) | Hydraulic Power(kw) | Weight(kg) |
SFSM-1.5 | ≤50 | 1.5 | 0-1450 | 150 | 600 | 0.55 | 500 |
SFSM-4 | ≤200 | 4 | 0-1450 | 200 | 800 | 0.55 | 700 |
SFSM -7.5 | ≤400 | 7.5 | 0-1450 | 230 | 900 | 0.55 | 800 |
SFSM -11 | ≤500 | 11 | 0-1450 | 250 | 900 | 0.55 | 1100 |
SFSM -15 | ≤700 | 15 | 0-1450 | 280 | 900 | 0.55 | 1200 |
SFSM -18.5 | ≤800 | 18.5 | 0-1450 | 300 | 1100 | 0.75 | 1400 |
SFSM -22 | ≤1000 | 22 | 0-1450 | 350 | 1100 | 0.75 | 1600 |
SFSM -30 | ≤1500 | 30 | 0-1450 | 400 | 1100 | 0.75 | 1800 |
SFSM -37 | ≤2000 | 37 | 0-1450 | 400 | 1600 | 1.1 | 2000 |
SFSM -45 | ≤2500 | 45 | 0-1450 | 450 | 1600 | 1.1 | 2400 |
SFSM -55 | ≤3000 | 55 | 0-1450 | 500 | 1600 | 1.1 | 2600 |
SFSM -75 | ≤4000 | 75 | 0-950 | 550 | 1800 | 2.2 | 2800 |
SFSM -90 | ≤6000 | 90 | 0-950 | 600 | 1800 | 2.2 | 3200 |
SFSM -110 | ≤8000 | 110 | 0-950 | 700 | 2100 | 3 | 3500 |
SFSM -132 | ≤10000 | 132 | 0-950 | 800 | 2300 | 3 | 4000 |
Remarks:
*The above listed Max. processing capacity is calculated as per water as medium. The model selection should depend on the comprehensive factors such as materials viscosity, specific gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc, correct data is required for correct model selection.
*If any changes of the data and picture,no further notice is provided.Correct parameter is based on the real object provided.
*The sheet is not including all the products.To know more information,Pls feel free to contact our sales engineers.
