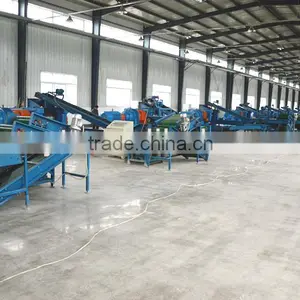

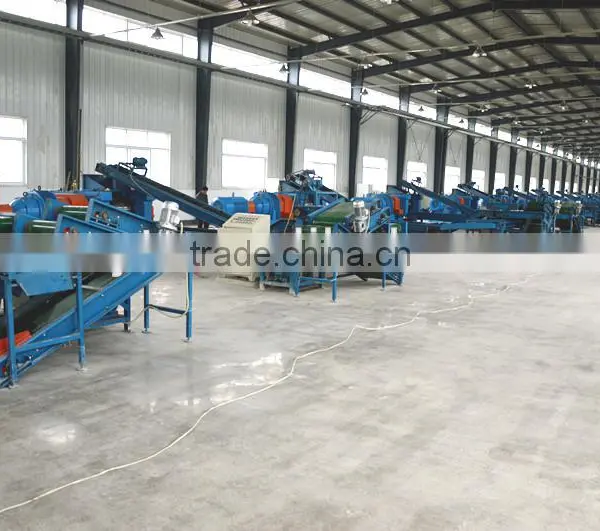

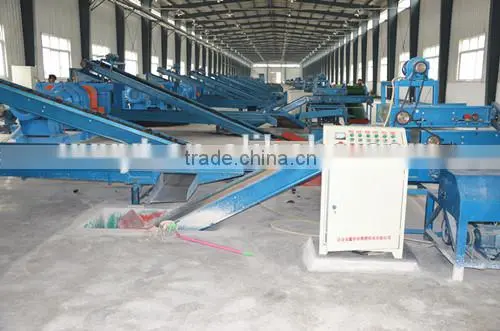

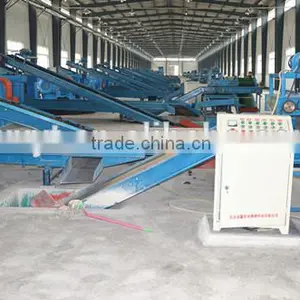

Rubber raw material machinery line
Process flow chart
ring cutter-strips cutter-blocks cutter-bead wire separator-xkp series crusher-shaking screen-conveyor-steel magnetic separating conveyor-fiber separator
Self-introduction respectively
QKF 1150 Ring cutting machine
Specification:
ring cutter is used for cutting the used tire into three parts, two sidewalls and one tread.
Main parameter:
| Model | Motor | Processing range | Weight | Dimension | Production |
| QKF1150 | 2.2 | 750-1200 | 400 | 1500*1150*1480(l*w*h) | 2ton/hour |
QT380 Cuting Strips Machine
Specifications:
strips cutter is used for cutting the sidewalls and tread into rubber strips.
Main paremeter:
| Model | Processing range(mm) | Dimension | Weight | Dimension | Production |
| QT380 | 4 | 750-1200 | 900 | 1300*750*1580(l*w*h) | 1ton/hour |
QK200 Cutting blocks machine
Specifications:
the machineis used for cutting rubber strips into rubber blocks.
Main paremeter:
| Model | Motor | Weight(kg) | Dimension | Production | processing range |
| QK200 | 7.5 | 900kg | 800*810*1070(l*w*h) | 1ton/hour | 750-1200 |

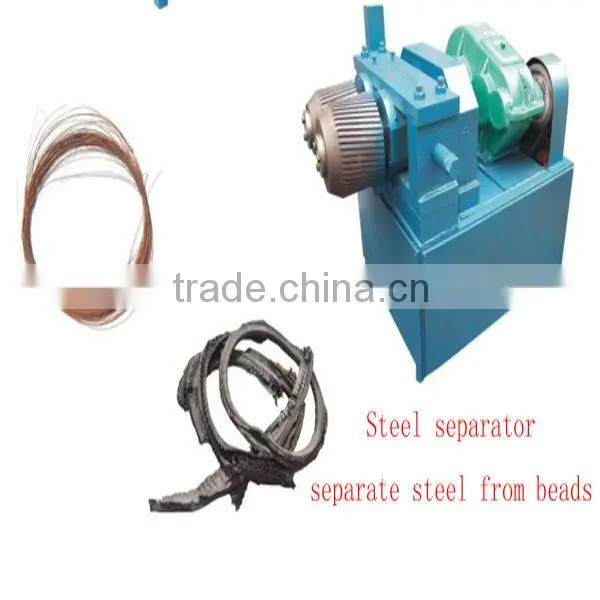

GF240 steel separator
Specifications:
bead wire separator is to separate the whole steel circle from bead.
Main paremeter:
| Model | Model | Processing range(mm) | Weight | Dimension | Production |
| GF240 | 15 | Bead wire | 2000 | 1520*1180*1200(l*w*h) | 30pieces/hour |

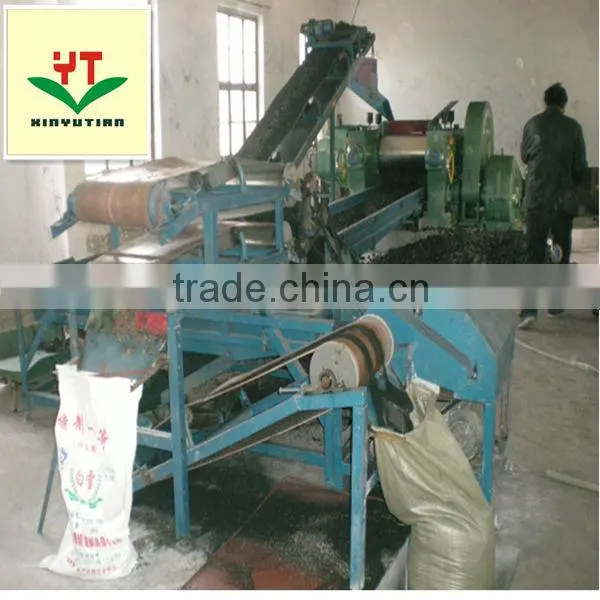

SKPseries tire crusher unit
Use: rubber powder producing plant(xkp series) is to crush rubber blocks into rubber powder(0.6-3mm)
| Model | Motor | Processing range | Weight(kg) | Dimension(mm) |
the diameter of roller*lenght(mm ) |
Speed Radio of two rollers | Working speed of front roller(m/min) | Max clearance(mm) | Production |
| XKP-400 | 45 | Rubber(<5cm) | 7500 | 4210*1850*1925 | 400*600 | 1:1.38 | 17.16 | 10 | 180kg/h |
| XKP-450 | 60 | Rubber(<5cm) | 11000 | 4550*1970*1860 | 450760 | 1:1.38 | 23.43 | 10 | 250kg/h |
| XKP-560 | 90 | Rubber(<5cm) | 19000 | 5620*260*1900 | 560*800 | 1:1.38 | 27.14 | 15 | 500kg/h |
KF 1200Fiber seperator
Use: The machine is to separate the fiber (20-24mesh)from rubber powder.
Main parameter :
| Model | Motor(kw) | Weight(kg) | Processing range Dimension | Dimension | Production |
| KF100 | 6.25 | 2200 | rubber powdr | 14601500*4200(l*w*h) | 500kg/h |

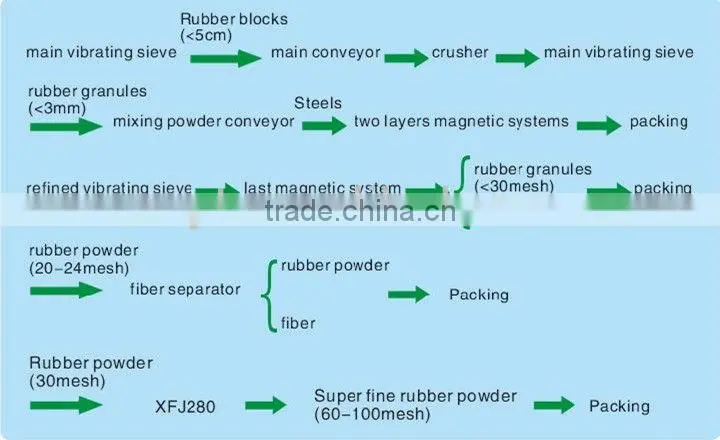

The flow chart of waste tire crusher machines:

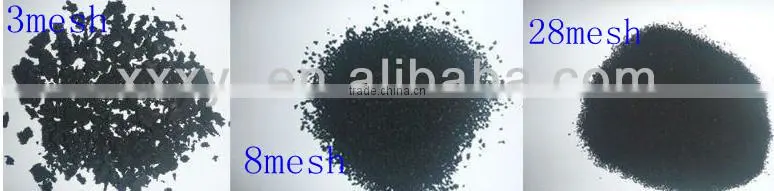

final products by recycling waste tire :
Application example of rubber powder
1.Rubber products(safety cushion,road islation barrier,rubber tube,rubber sheet,rubber sole)
2.Auto industry(tire,vibration absorbing material,shock absorber)
3.Athletic sports ground(runway,rubber title,court)
4.Building material(rubber tile,rubber floor brick,waterproof)
5.Road engineering and bitumious road surfacing(to be mixed with asphalt,be used for surfacing roads or underground railway)

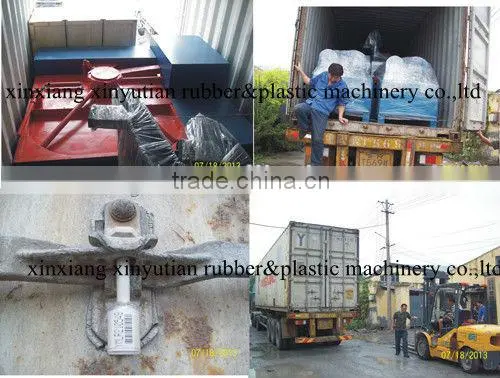

Rich experience of dispatch
we export to India,Indonesia,Malaysia,Pakistan,Kwait,Qatar,Saudi arabia,Iran,Uz,Russia,Mexcio,Brzail,Australia by 40'container,40'HQ,open 40'container .

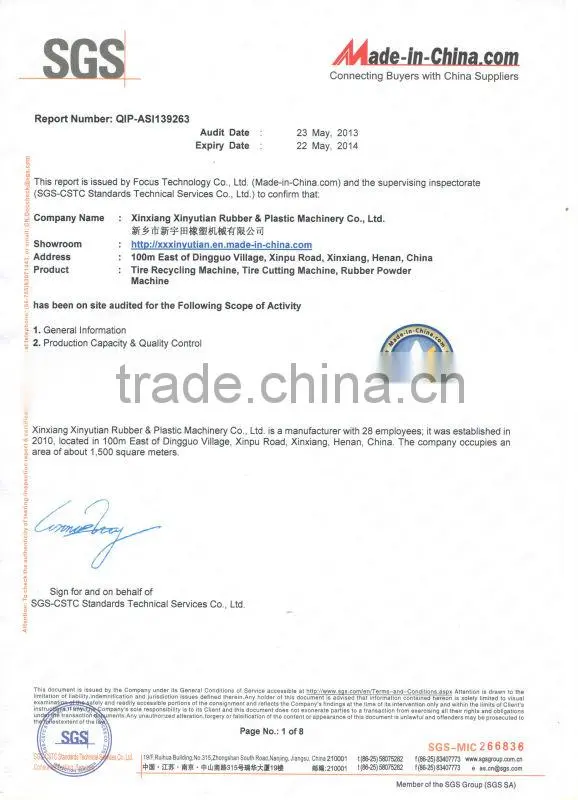

About Xinyutian
Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop waste tire recycling equipments that have been sold all over the world.what is more,we got great feedback from our customers in Asia,Central Asia,North Europe and South America.
Customers abroad(Pakistan,Iraq,USA)
Advantages of Xinyutian
1. Rich experience of export , such as Asia,Central Asia,North Europe and South America
2. Independent research&development team
3. Good after-sale service
4. Accurate analysis with clients about use and maintence.
5. Good reception and service
6. Short and flexible delivery time
7. Professional manufacturer in Rubber$&Plastic Machinery
FAQ
Delivery time
Within 10 days after we get your 30% down payment.
Terms of payment
30%of the total contract value to be paid by T/T as down payment, and the balance 70% should be paid by T/T before delivery the goods
Transportation
LCL
Warranty period and after sales
One year. In the warranty period, except human factors and vulnerable parts ,one year free guarantee, one year later, we still be responsible for the machine ,but the costs shall be borne by the buyers.
Welcome inquiry from overseas friends,Contact us at any time!
URL:
Tel:+86(0)373 3033288
Fax: +86(0)373 3692059
mobile:+86 15936531984
skype:wjangelabaibai
Address:Xinpu Road,Xinxiang City,Henan Pro.China
