2014 China 30% save energy crumb rubber making machine for pyrolysis

Specifications

30% save energy crumb rubber making machine for pyrolysis
1.special manufacturer
2.rich experience of export

 ---Solutions to doubts

would you like to recycle used tire?

would you like to get pure rubber for making rubber products?

would you like to get rubber from used tire within lowest cost and consuming?

now  30% save energy crumb rubber making machine for pyrolysis can do it.



---Brief introdution

this machine is to recycle different types tire(radial tire,nylon tire) into rubber powder(<30mesh)free of steel and fiber.



Constitute

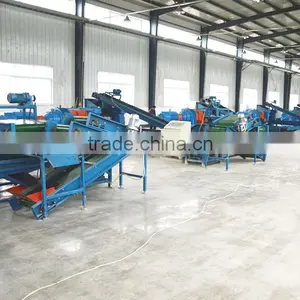

ring cutter-strips cutter-blocks cutter-bead wire separator-XKPseries crusher-shaking screen-conveyor-steel magnetic separating conveyor



1.ring cutter,strips cutter,blocks cutter,bead wire separator(alternative)



output is 30-50mm rubber blocks, 1 labor needed.

capacity:10ton/8hours



New GF240A bead wire separator can process rings(sidewalls) and bead,bead wire can be separated completely automatically

capacity:30pieces tire/h

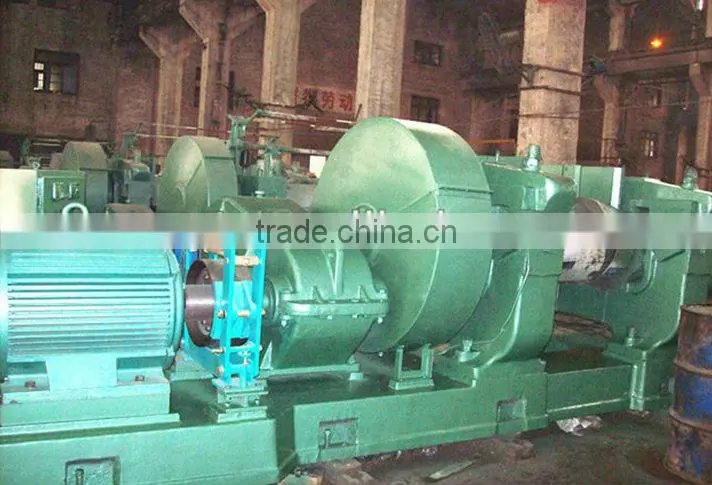

2.XKPseries tire crusher,3 models can be choosed for producing different capacity.



structure:base,front and rear rollers,gears,reducer,motor,safety device,electric cabinet,cooling water device,clearance adjust device,transmission device,safety brake.

Type	diameter of rollers *length(mm)	speed ratio of rollers	max distance between two rollers (mm)	numbers of revolutions	motor power(kw)	dimensions (mm)	weight  (kg)	capacity(kg/h)
XKP400	400*600	1:1.38	10	13.65	45	4210*1850*1925	7500	120-150
XKP450	450*760	1:1.38	10	16.57	55	4550*1970*1860	11000	200-300
XKP560	560*800	1:1.38	15	15.5	75	5620*2260*1900	19000	300-500

improvement details for XKPseries crusher

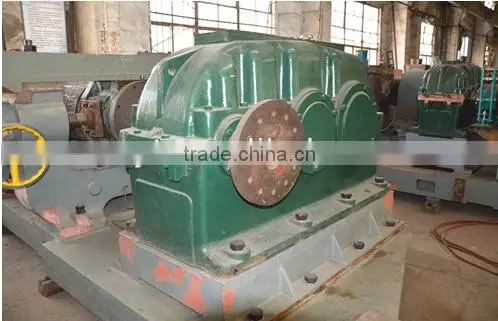

1.gearing reducer has been replaced by hardened reducer,gear ratio has been raised that lower noise to the environment.

2.motor power can be rasied to 110kw.

3.material of rollers---cast iron and cast steel can be choosed based on client'request.

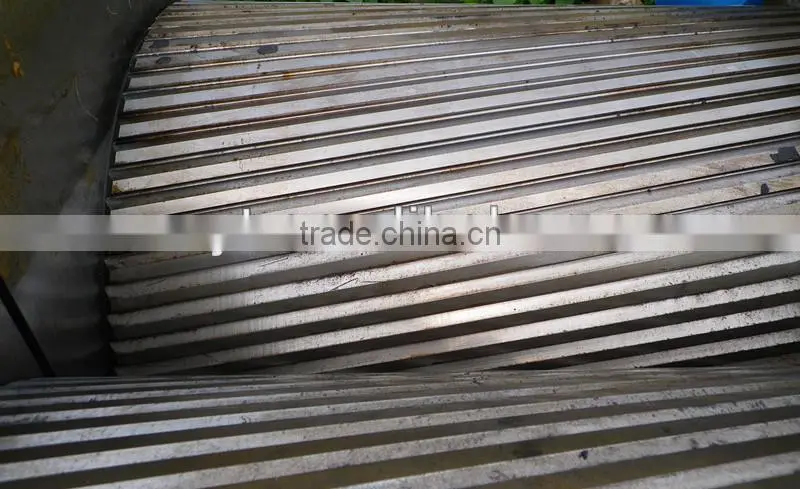

4.smooth or groove rollers can be choosed based on need.







3.shaking screen,steel magnetic separate conveyors,conveyor





(1)shaking screen:stainless steel bar web or stainless steel circle web can be choosed if raw material is radial tire or nylon tire.

(2)steel magnetic separate conveyors:strong magnetic separate power to remove steel,ratio can reach 95%.

(3)conveyor:complete PVC annular conveyor wihout any joint.



 ---Final output





---Successful case

(16sets XKP560 tire cusher for producing rubber powder 50000ton per year)





---About Xinyutian factory



Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop tire recycling rubber powder plant.our machines have been sold all over the world,what is more,we got great feedback from our customers in Asia,Central Asia,North Europe and South America







---Advantages of Xinyutian

1.special manufacturer that has professional producing team and technical support

level sale teams to communicate with clients by email,telephone,face to face.

fessional explanation to clients about machines(techonogy,apply,using guide and so on)

4.best after sale---follow the whole producing situation,provide photos of machines loaded into containers, track the operating and using situation of client in case of any problems occur.

5.reasonable price

6.flexible delievery time

7.more than 15 years of experience of exporting ability

Welcome inquiry from overseas friends,Contact us at any time!
