-Solutions to doubt
would you like to crush waste tire?
would you choose XKPseries crusher?maybe you find out its disadvanges,like poor stability,too much noise?
now our machine can help you do it!
---Brief introduction
XKPseries tire crusher rubber powder is to crush rubber blocks into rubber granule.3 models can be choosed for producing different capacity.
structure:base,front and rear rollers,gears,reducer,motor,safety device,electric cabinet,cooling water device,clearance adjust device,transmission device,safety brake.
Type |
diameter of rollers *length(mm) |
speed ratio of rollers |
max distance between two rollers (mm) |
motor power (kw) |
dimensions (mm) |
weight (kg) |
capacity(kg/h) |
|
XKP400 |
400*600 |
1:1.38 |
10 |
45 |
4210*1850*1925 |
7500 |
120-150 |
|
XKP450 |
450*760 |
1:1.38 |
10 |
55 |
4550*1970*1860 |
11000 |
200-300 |
|
XKP560 |
560*800 |
1:1.38 |
15 |
75 |
5620*2260*1900 |
17000 |
300-500 |
XKP610 |
610*800 |
1:2 |
16 |
132 |
5739*2270*1560 |
17500 |
700-1000 |
---Improvement details
1.gearing reducer has been replaced by hardened reducer,gear ratio has been raised that lower noise to the environment.
2.motor power can be rasied to 132kw.
3.material of rollers---cast iron and cast steel can be choosed based on client'request.
4.smooth or groove rollers can be choosed based on need.

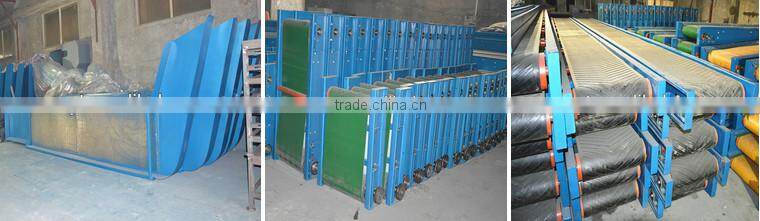

--- Auxiliary equipment for XKP series tire crusher
1.ring cutter,strips cutter,blocks cutter,bead wire separator(alternative)
2.shaking screen,wire magnetic conveyors,conveyor
(1)shaking screen:stainless steel bar web or stainless steel circle web can be choosed if raw material is radial tire or nylon tire.
(2)steel magnetic separate conveyors:strong magnetic separate power to remove steel,ratio can reach 95%.
(3)conveyor:complete PVC annular conveyor wihout any joint.

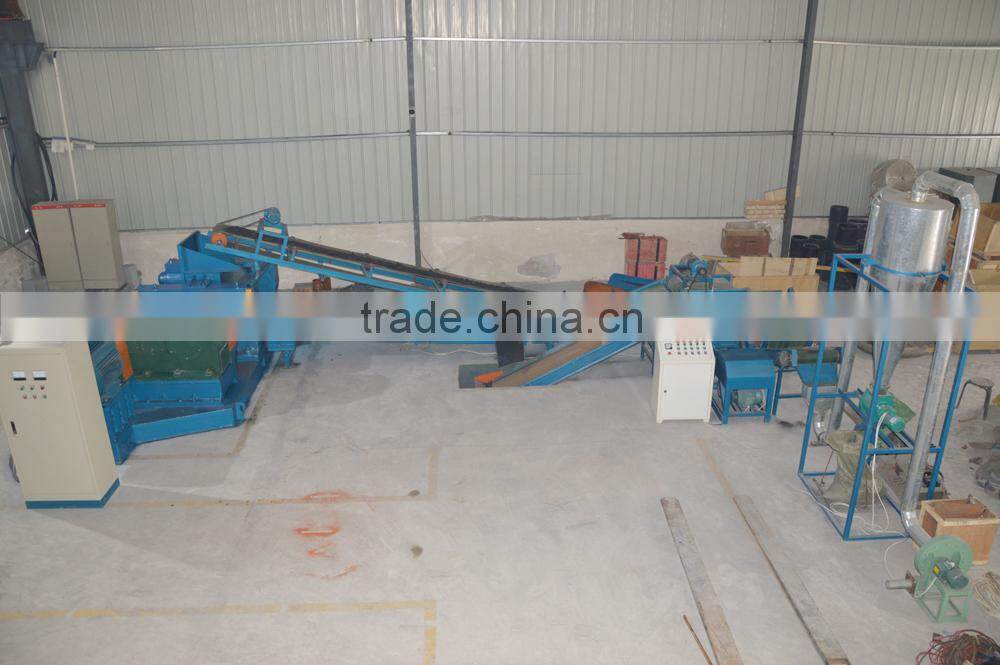

---Assembled production line runnig in our workshop for customers watching at any time
---Delivery

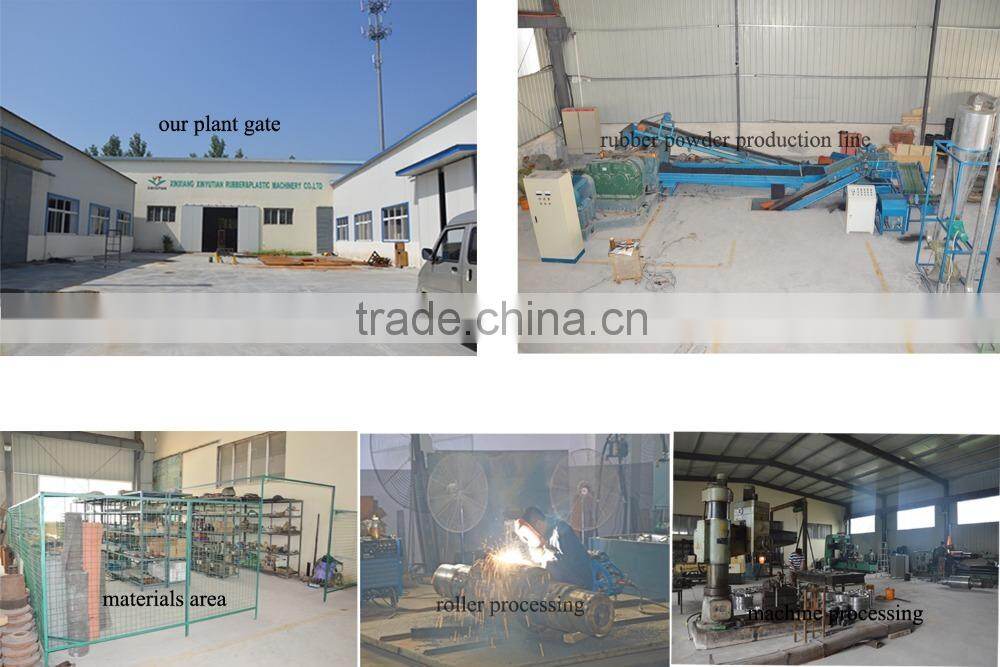

---About Xinyutian factory
Xinxiang Xinyutian Rubber&Plastic Machinery Co.,ltd locates in the important industry area of Yubei.Our enterprise is dedicated to research and develop waste tire recycling equipments that have been sold all over the world.what is more,we got great feedback from our customers in Saudi arabia,Egypt,Iran,Philipine,Malaysia,Romania,Spain,UK,Russia,Uzbekistan,
Kazakhstan,India,Australia,Panama,Brazil,Chile and Peru.
Pre sales
1.customizes to suit customers’exact needs
2.recommend suitable machines configuration accordance to actual situation from customers.
After deal
vide details building factory plan
vide technical service like foundation making drawing,layout drawing(CAD drawing)
After sale
1.warranty for one year
2. provide technical tracking and service
e up with best solution within 24hours whenever customers have any questions.(specifi video,photos will be provided for explain)

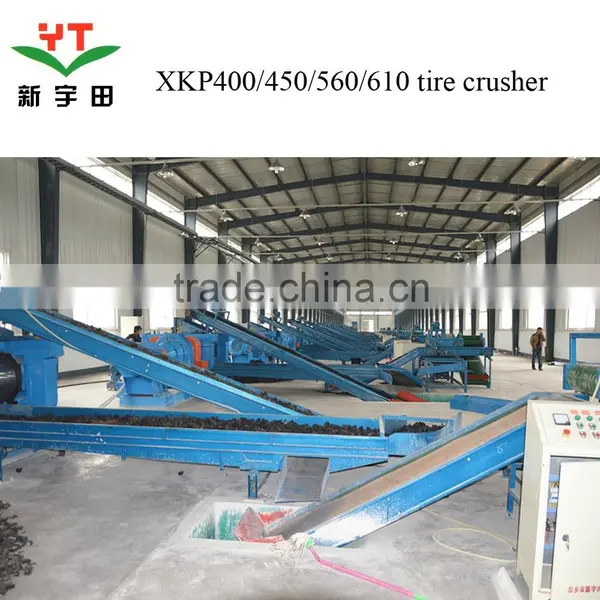

---Successful case
(16sets XKP560 tire cusher for producing rubber powder 50000ton per year)
---Customers cooperated
Welcome inquiry from overseas friends,Contact us at any time!
URL:
Tel:+86(0)373 3033288
Fax: +86(0)373 3692059
mobile:+86 15936531984(whatsapp ID)
skype:wjangelabaibai
Address:Xinpu Road,Xinxiang City,Henan Pro.China
