---Solutions to doubt
would you like to make modified bitumen to pave the road by 60-100mesh fine rubber powder?
how to make such fine rubber powder by waste tire?
now Splendid tire rubber grinder/rubber tire grinding machine has come out!
---Brief introduction
this machine is developed adopting advanced technology from domestic and overseas rubber industry. Lower power consumption, low noise, output fineness, high efficiency, small size, easy operation and pollution free are its main features. It enjoys great popularity in rubber industry.

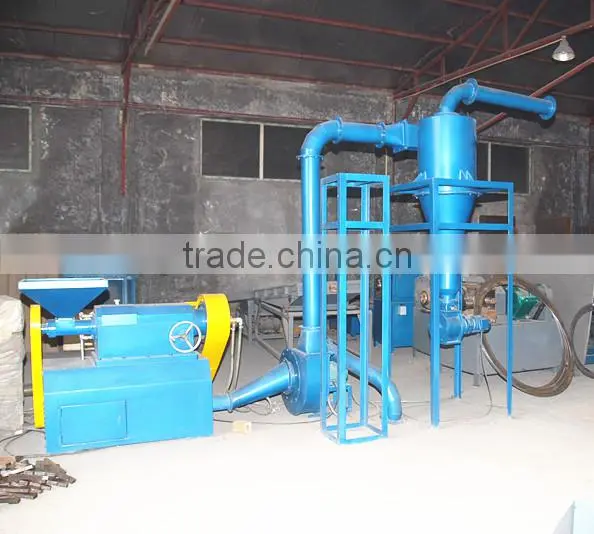

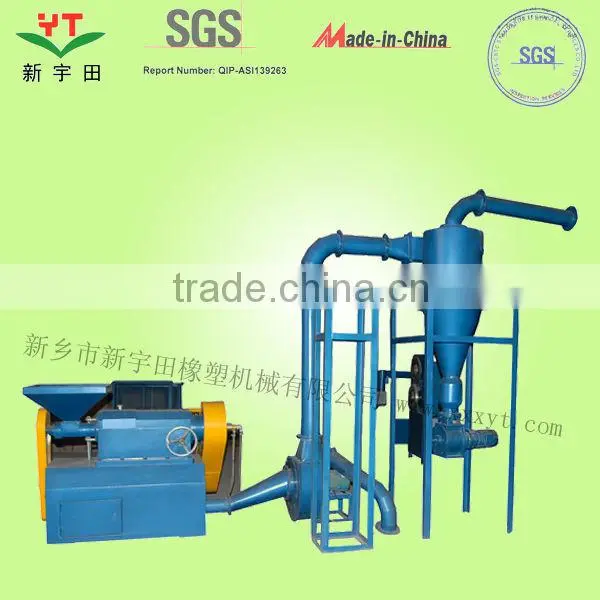

Structure:main crusher,fan machine,air puller and cooling system.
principle:10-30mesh rubber powder are grinded into 60-80mesh rubber powder by the relative movement of two discs.one is fixed grinding disc,another is rotary grinding disc.The cooling system control the working temperature of two discs.
main parameter:
| Model | Capacity | Input size | Output size | power | grinding temperature |
| XFJ-280 | 60-120kg/h | 10-30mesh | 60-80mesh | 32KW | ‹80°c |
--- Tire recycling rubber powder plant(output<30mesh)
1.ring cutter,strips cutter,blocks cutter,bead wire separator(alternative)
output is 30-50mm rubber blocks, 1 labor needed.
capacity:10ton/8hours
New GF240A bead wire separator can process rings(sidewalls) and bead,bead wire can be separated completely automatically
capaicty:30pieces tire/h
2.XKP series crusher,shaking screen,wire magnetic conveyors,conveyor
(1)shaking screen:stainless steel bar web or stainless steel circle web can be choosed if raw material is radial tire or nylon tire.
(2)steel magnetic separate conveyors:strong magnetic separate power to remove steel,ratio can reach 95%.
(3)conveyor:complete PVC annular conveyor wihout any joint.
---Successful case
(16sets XKP560 tire cusher for producing rubber powder 50000ton per year)
