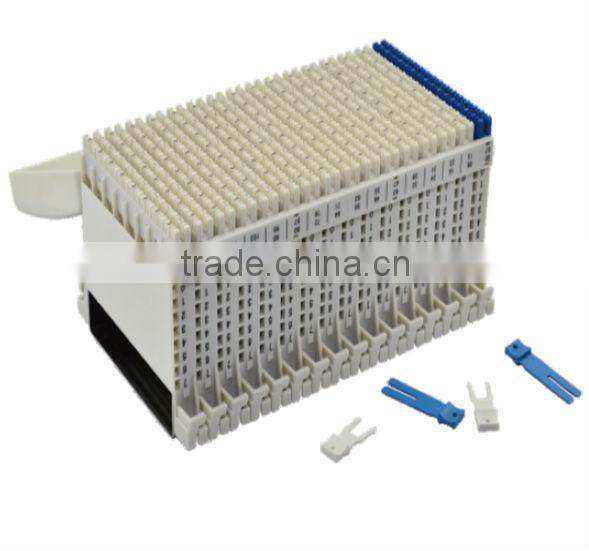

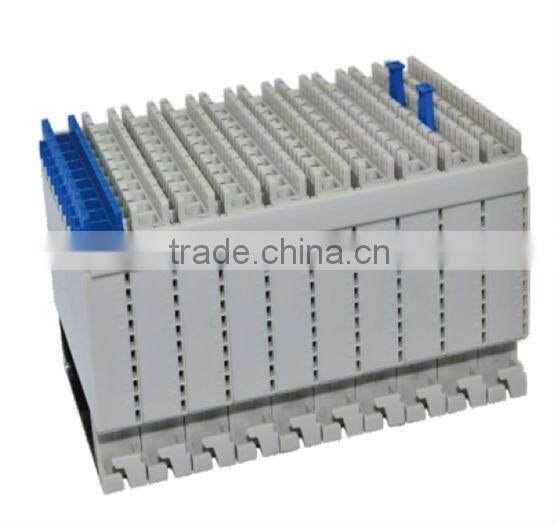

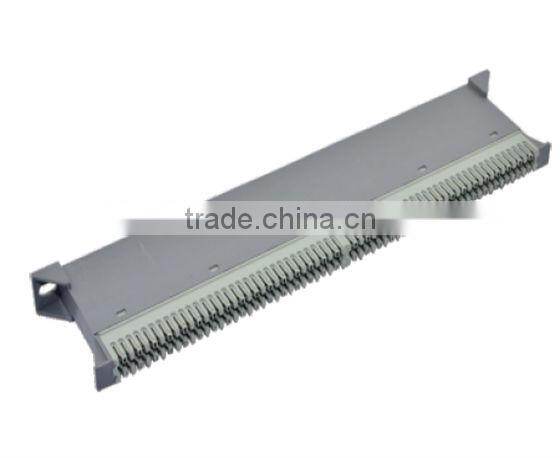

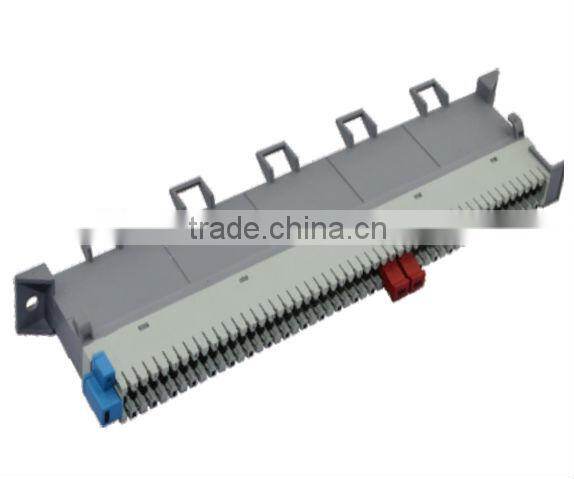

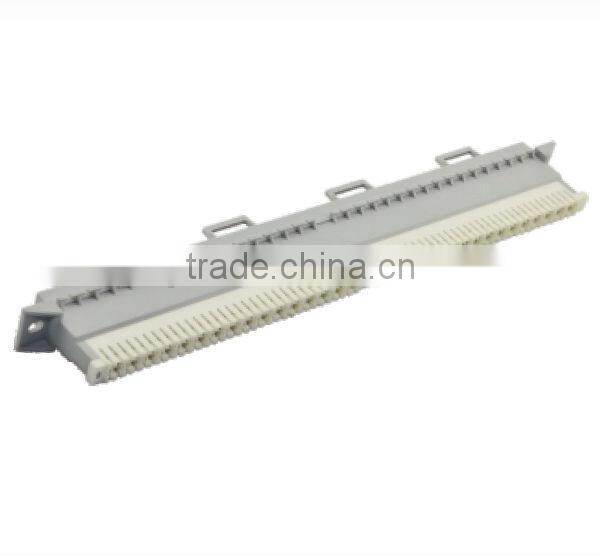

Help Center25 Pair Protection Connection Block
Related Products
Specifications
1).Good Quality2).Experienced Manufacturer
3).ISO 9001:2008 Certified
4).Competitive Price
1.Protect connection block.
2.Main Distribution Frame have horizontal and vertical types.
Summary
Main Distribution Frame constitute by the frame body, connection block, test module, alarm systems, test equipment, protection unit and so on, MDF is use to connection with the switch and the user cable, patch cord, over current, over voltage protection and alarm test function, the implementation of YD/T694-2004 standard products.
Features:
1. All aluminum alloy frame, rigid, elegant appearance, a variety of cable connecting all with Built-in card access methods, safe and reliable.
2. There are many dimensions, structure for the use of protection unit and connection block to meet the new, update, modification, maintenance needs.
3. With four-grade alarm, can use access control, security and other system monitoring the implementation of centralized control or centralized alarm remote interfaces.
4. Contact reed plated with gold or bright tin, flame retardant engineering plastic used. Has a good over-voltage protection and over-current failure to protect.
5. The frame has perfect grounding system.
Technical parameters:
1. Work conditions:
(1) Working temperature: -5 ~ +40 (degree) (2) Relative humidity: < 85% (30 degrees)
(3) Atmospheric pressure: 70 ~ 106 (kpa)
4) Storage temperature: -25 ~ - +55 (degrees)
2. Performance parameters:
(1) Insulation Resistance ≥ 1000MΩ
(2) high-voltage protection> 3000V (DC) / mm without breakdown, no arc.
(3) Contact Resistance ≤ 7mΩ between reed wire and terminal into the connection between the contact resistance ≤ 3mΩ
(4) Pull strength: ≥ 25N
Our Company is a professional manufacturer of telecommunication products with an experience of 17 years.
If you haven't found the exact item you are looking for in our website, please send u s details,we can develop moulds on our own.
We would like to establish long term business relationships with your company.
Honesty+Professional+Best Service+Competitive Price+Qualified Product =Long-term Cooperation
Welcome to our website ! If you have any questions , pls do not hesitate to contact with me!
