2channel switch optical converter with data
- 5000000 Unit / Units per Month
- optical converter be shipped from Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
-
ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
-
ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
-
ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
-
ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
-
ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
-
ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | Baudcom-optical converter | Model Number: | BD-OP-2S/RS232 |
Product Description

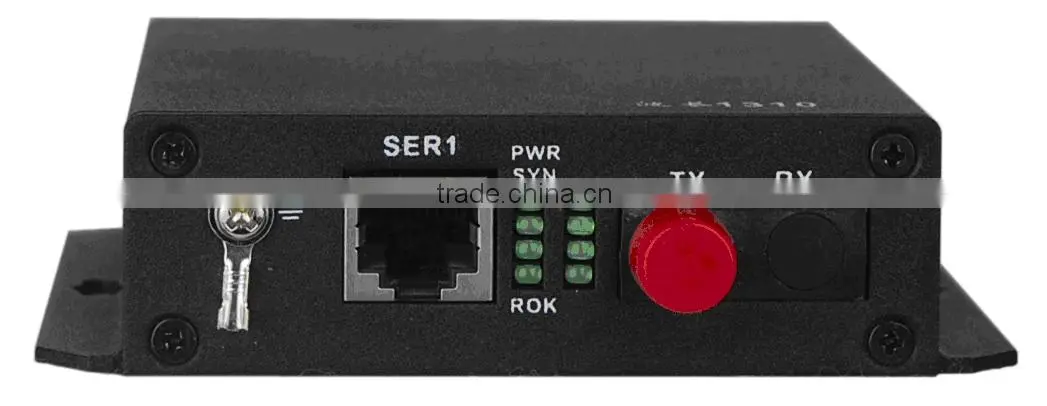

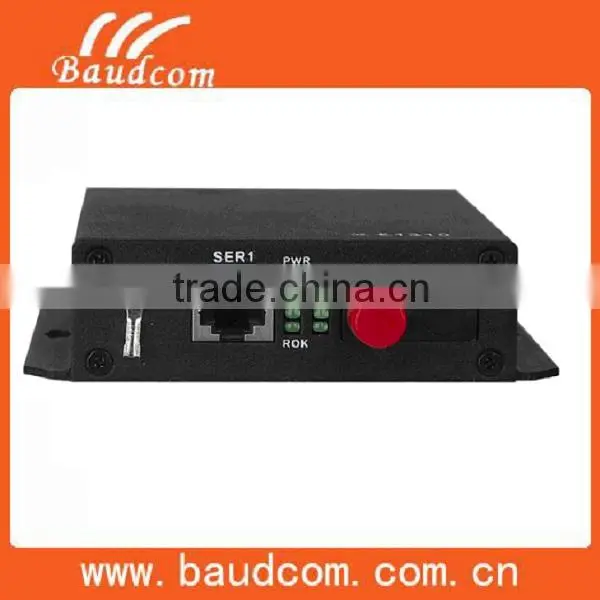

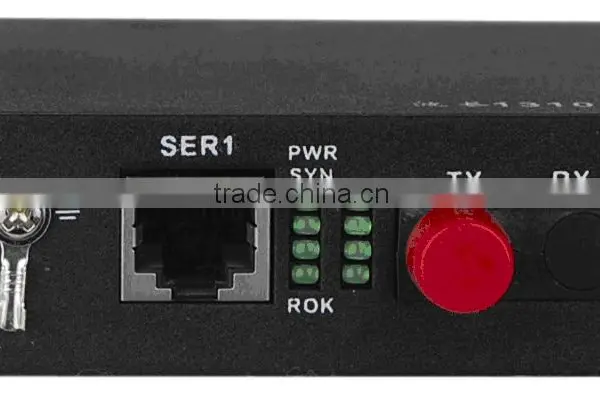

Product: 2channel switch optical converter with data
The High Quality Data provide 2channel Switch Video Optical Modem provides 2channel switch and 1channel serial data(RS232/422/485) over fiber tansmission. The fiber modem also can provide only 4 one-way switch over fiber transmission.
The product solve the electromagnetic interference, ground loop interference and lightning damage problems, improve the reliability, security and confidentiality of the data communication. The High Quality Data provide 2channel switch Video Optical Modem can be widely used in various industrial control, process control, and traffic control and other occasions, especially for banking, electricity and departments have special requirements for electromagnetic interference environment and systems.
High Quality Data provide 2channel switch Video Optical Modem
Based on the integrated circuit intellectual property rights;
The input switch normally open and close automatically, when the input state, switch output that is why state, convenient opening;
The switch quantity of other switch state stability in the boot state or fiber no access, no chaos motion state;
Provide 1 way switch and RS485 data;
A switch interface lightning reaches IEC61000-4-5 (8/20 μ S) differential mode: 6KV, impedance (2); common mode: 6KV, impedance (2) standard;
The optional AC 220V, DC -48V, DC +24V, DC power supply positive and negative pole points (this device supports only DC +5V supply).
| Fiber | Multi-mode Fiber | 50/125µm, 62.5/125µm,Maximum transmission distance: 2KM@62.5/125um single mode fiber, attenuation (3dbm/km) Wave Length: 820nm Transmitting power: -12dBm (Min) ~-9dBm (Max) Receiver sensitivity: -28dBm (Min) Link budget: 16dBm |
| Single-mode Fiber | 8/125µm, 9/125µm, Transmission distance: 40KM,9/125µm, single mode fiber, attenuation (0.35dbm/km) Wave Length: 1310nm Transmitting power: -9dBm (Min) ~-8dBm (Max) Receiver sensitivity: -27dBm (Min) Link budget: 18dBm | |
| Switch | Response time | <2ms |
| Delay time | 0.5ms | |
| Switch signal | 30VDC/0.5A | |
| Connector | RJ45 | |
| Frequency response | 20HZ/S | |
| power | Voltage | DC:5V |
| Consumption | ≤5W | |
| size | (L×W×H) | 103×93×28(mm) |
| Working Environment | Working temperature | -10°C ~ 50°C |
| Working Humidity | 5%~95 % (no condensation) | |
| Storage temperature | -40°C ~ 80°C | |
| Storage Humidity | 5%~95 % (no condensation) |

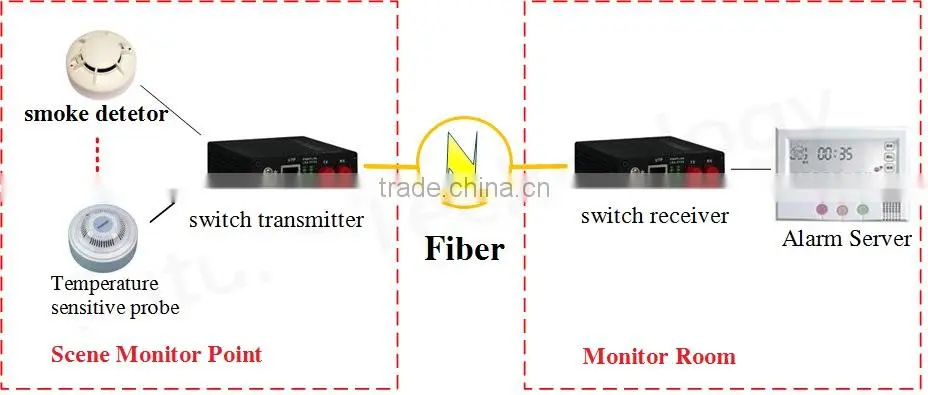

Application diagram
WHY CHOOSE US Baudcom
1. Baudcom has been working hard in supplying various SFP products for 7 years
2. Getting trusted by more and more customers home and abroad
3. One of the most reliable Video Optical Modem distributors for brands like Cisco Finsar brocade etc in China
4. Stable channel ensures the products quality and competitive pricing
5. Regularly 20K sets of Video Optical Modem inventory available for the instant delivery anytime when necessary
6. Professional team provides you with excellent buying experience, help you sort out all the concerns through out this process
We look forward to reaching a cooperation with esteemed your company, by providing the top-class quality products and 100% whole-hearted services!
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
| Order Information | BD-OP-2S/RS232 | switch fiber modem,2channel switch value,1channel RS232,Single fiber,SC,20KM,power AC220V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
