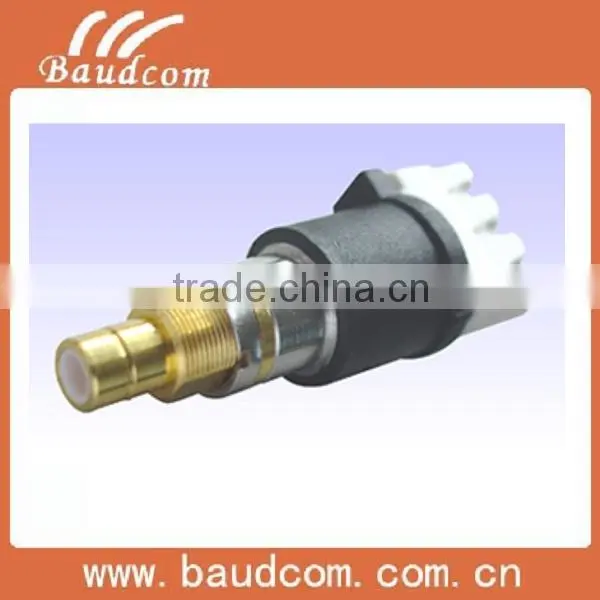

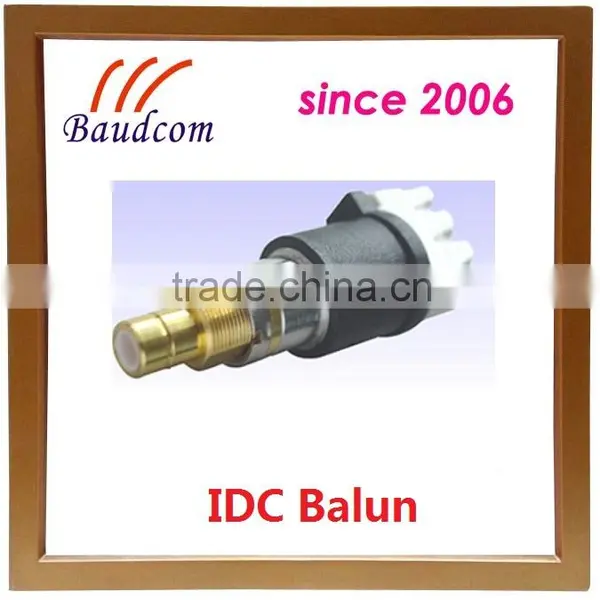

Product: 1.6/5.6 Male IDC Balun
Overview:
The IDC Balun - new G.703/G.704 toolless insulating displacement connecting (IDC) module baluns are ideal for carriers seeking a cost-effective, space-efficient, and proven method of impedance matching 75-Ohm coax to 120-Ohm single-conductor connections. The IDC Balun provide transparent bi-directional signal conversion with no AC or battery power required.
Various industry standard types of coaxial connectors (75 Ohm) are available including male and female combinations of BNC, 1.6/5.6, 1.0/2.3, and Type 43. The 3-pole toolless IDC Balun used for wrapping single-conductor connections (120 Ohm) utilizes a slit in the cable anchor to allow the cable to be inserted after termination. The toolless IDC Balun is also offset so that a cable can be positioned between baluns on the DDF/patch panel as required. The toolless IDC Balun is clearly labeled A, B, and G (Ground) to make installation more convenient.
IDC Balun pictures:
type43 female IDC balun type43 male IDC balun
BNC female IDC balun BNC male IDC balun
1.6/5.6 female IDC balun 1.6/5.6 male IDC balun
1.0/2.3 female IDC balun 1.0/2.3 male IDC balun
Features & Benefits:
- Convert 75 Ohm Coax to 120 Ohm Twisted Pair--Resolves impedance mis-match between twisted pair equipment and coax cabling
- Ultra-miniature size--Provides maximum density when installed into a 19-inch (48.3cm) panel
- Industry Standard Coax Connectors--A host of coax connectors including BNC, 1.6/5.6, 1.0/2.3 and Type 43 are available
- Low Insertion Loss--Fully meets ITU-T (CTR-12) G.703 standards
-
No Power Required--Operation is transparent to data, no AC/DC power is required
