Made in China 8 Analog POTS Over E1 Multiplexer

Made in China 8 Analog POTS Over E1 Multiplexer thumbnail-1
Made in China 8 Analog POTS Over E1 Multiplexer thumbnail-2
Made in China 8 Analog POTS Over E1 Multiplexer thumbnail-3
Made in China 8 Analog POTS Over E1 Multiplexer thumbnail-4
Made in China 8 Analog POTS Over E1 Multiplexer photo-1
Made in China 8 Analog POTS Over E1 Multiplexer photo-2
Made in China 8 Analog POTS Over E1 Multiplexer photo-3
Made in China 8 Analog POTS Over E1 Multiplexer photo-4
US$ 245 - 295 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
BAUDCOM
Model Number:
BD-E1-MUX08
Contact Supplier Request Quote Chat Now
Shanghai Baudcom Communication Device Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
8 POTS multiplexer from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name BAUDCOM
Model Number BD-E1-MUX08

8 analog POTS over E1 multiplexer OVERVIEW

8 POTS (FXO/FXS) over (G.703) is a kind of point-to-point fiber transmission device. BAUDCOM designed 8 POTS(FXO/FXS),also can be plus 1~4 Ethernet,1~4 RS232 over E1(G.703), and it could match different customer requirement



8 analog POTS over E1 multiplexer Technical Specifications



PRODUCT CHARACTERISTIC

²  provides 1~4 channel Ethernet ports for option; pls notisfy when order

²  provides 1~4 channel RS232, rate supports 300-15200 bps for option;pls notisfy when order

²  provides 8 channel POTS( FXO/ FXS),also can offer 2/4 wire E&M for option;

²  support combination for POTS(FXO/FXS and 2/4 wire E&M)

²  Ethernet port 10/100M, full/half duplex auto-adaptable ;

²  Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable);

²  8 channel voice connection, supports calling indication;

²  Configuration: analog POTS over E1 multiplexer point to point;

²  Voice port supports O port and S port, O port connects switch and S port connects user’s phone;



FXO port

Alarm voltage

75V

Alarm frequency

25HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

FXS port

Alarm detecting voltage

    35V

Alarm detecting frequency

17HZ-60HZ

2 line input impedance

600Ω (hanging off)

Wastage

40db

E&M port

E wire

M wire

Max current: 22mA

steady current: 7 mA

Saturation voltage: 3V

min test current: 5 mA

Dial speed: >20pps

pluse dial recognition: >20pps

RS232 port

Rate

0~115.2Kbps

Loop function

Local loop

Connector

RJ45

10/100BaseT Interface

Number of Interfaces

1~4 port

Interface Types

10/100BaseT (optional)

Standards Compliance

IEEE 802.3

Protocol

User Programmable HDLC

Connectors

B RJ45 (10/100 BaseT Electrical)



E1 Interface

Number of Interfaces

1 port

Line Rate

E1 (2.048Mbps ± 50 bps)

Line Code

HDB3

Electrical

ITU-T G.703

Jitter

G.823

Impedance

75hom/120 Ohms

Connectors

BNC(75ohm) or RJ45(120ohm)



8 analog POTS over E1 multiplexer Mechanical Specifications

Rack Mounting

Standard 19-inch DIN rack 30POTS model

Dimension

19inch 1 U: 433mm(L)*138mm(D)*44mm(H)



Management for option

Web managed built-in or SNMP central management via chassis for option,pls notisfy when order

Power Supply

Input AC/DC voltage

-48V DC ( nominal ) / AC also available

Range of input

-36V to -72V DC /90V~260VAC

Temperature

0 centi degree to 55 centi degree

Humidity

95% RH (non-condensing)

Cooling

Convection Cooling

8 analog POTS over E1 multiplexer Order information

BD-E1-MUX08

8POTS(FXS/FXS) over E1 (G.703) multiplexer

BD-E1-MUX08/ETH

8POTS(FXS/FXS) plus one Ethernet over E1 (G.703) multiplexer

BD-E1-MUX08/4ETH

8POTS(FXS/FXS) plus 4 Ethernet over E1 (G.703) multiplexer

BD-E1-MUX08/ETH/RS232

8POTS(FXS/FXS) plus one Ethernet,one RS232 over E1 (G.703) multiplexer

BD-E1-MUX08/ETH/4RS232

8POTS(FXS/FXS) plus one Ethernet,4 RS232 over E1 (G.703) multiplexer

BD-E1-MUX08/2EM

8 channel 2wire E&M over E1 (G.703) multiplexer

BD-E1-MUX08/4EM

8 channel 4wire E&M over E1 (G.703) multiplexer

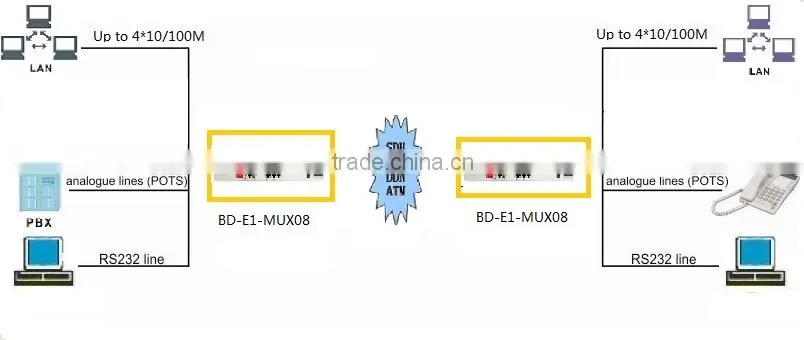

8 analog  POTS over E1 multiplexer Application



Made in China 8 analog POTS over E1 multiplexer

Made in China 8 analog POTS over E1 multiplexerMade in China 8 analog POTS over E1 multiplexer
