China Baudcom TCP/IP RS232 to RS485 Converter
US$ 10 - 20
MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom - TCP/IP Converter
Model Number:
BD-RS232-RS485
Payment & Shipping
Payment Methods:
Port of Shipment:
TCP/IP Converter will be shipped from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Made in China 8 Analog POTS Over E1 MultiplexerUS$ 245 - 295MOQ: 2 Units -
2E1 TDM Over IP Multiplexer E1 Over IP/Ethernet ConverterUS$ 315 - 378MOQ: 2 Units
-
China V.35 to E1 ConverterUS$ 45 - 75MOQ: 2 Units
-
8RS232 RS485 RS422 Serial to Ethernet ConverterUS$ 104 - 180MOQ: 2 Units
-
2Channel Ethernet to Serial Port Rs232US$ 35 - 48MOQ: 2 Units
Place of Origin
Shanghai, China
Brand Name
Baudcom - TCP/IP Converter
Model Number
BD-RS232-RS485
Product: China Baudcom TCP/IP RS232 to RS485 Converter with High Quality
Overview:
The TCP/IP Converter is a high performance, more function RS232/485 interface converter. The product configure out connect power, optic-electrical isolation more than 2.5KV. Have small volume, far transmission distance, high rate, steadily performance and so on. It is abroad used in industry control system, It is an interface convert product that have good between performance to price. Adopt itself adapt interface technique, no use for setup switch.
Features:
Comply with EIA RS232/RS485 stand requirement;
RS232 port support DB9 female
RS485 port support DB9 male or RJ45 ;
RS485 work mode support asychronous half duplex
LED: TXD,RXD,POWER;
Protect type:150000v surge protect;
Transmit rate:75~115200bps;
Transmit distance:0~1800meter
Dimension:93mm*23mm*62mm
Work enviroment:0~60 degree;5%~95% relative humity
| RS-232 pins | DB9female | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|
RS232 (DCE) |
DCD | TXD | RXD | DTR | GND | DSR | RTS | CTS | |
| RS485 | DB9male | 1 | 2 | 3 | 4 | 5 | 6 | ||
| 485 | 485 D-/B | 485 D+/A | - | - | GND | - |

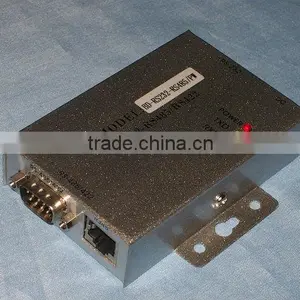

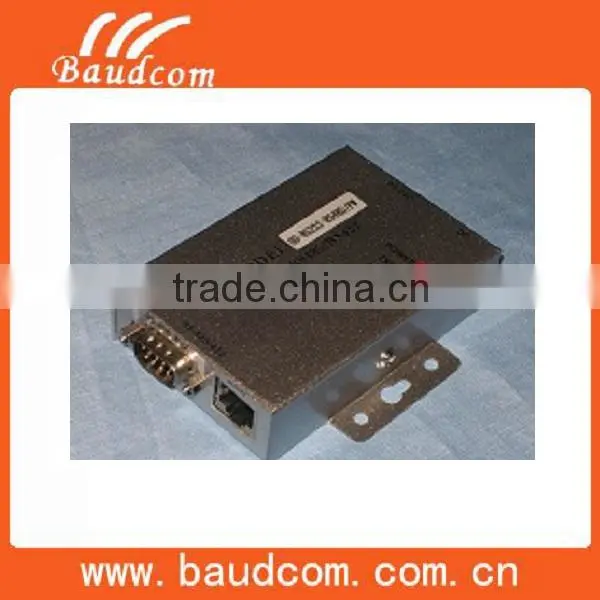

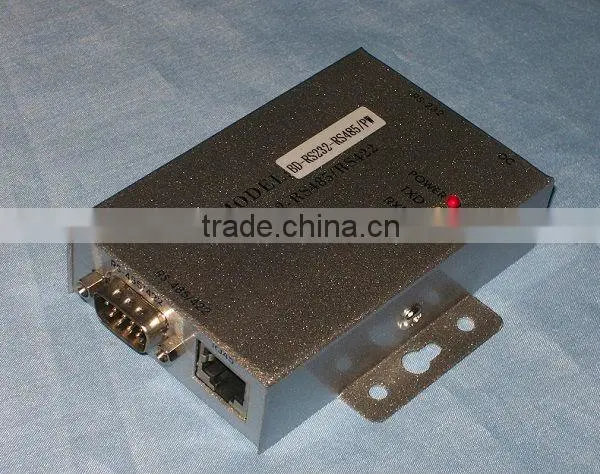

TCP/IP Converter Picture:
TCP/IP Converter Application Diagram:
