G.703 Standard E1 to V.35 Converter

G.703 Standard E1 to V.35 Converter photo-1
G.703 Standard E1 to V.35 Converter photo-2
G.703 Standard E1 to V.35 Converter photo-3
US$ 45 - 65 MOQ: 2 Units
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Baudcom -E1 to V.35 Converter
Model Number:
BD-E1-V35
Payment & Shipping
Payment Methods:
Port of Shipment:
E1 to V.35 Converter will be shipped from shanghai ningbo or any port in China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shanghai, China
Brand Name Baudcom -E1 to V.35 Converter
Model Number BD-E1-V35

Product: G.703 Standard E1 to V.35 Converter



Overview:

  V.35 Converter provides physical level conversion between ITU-T G.703 standard E1 interface and standard V.35 interface, it can receive synchronous 2.048 Mbps data from E1channal and transmit the data to router, DDN, multiplexer or other equipment, thus providing secure and seamless communicating connection between equipments with different interfaces in the network. V.35 Converter is widely applied in the interface between WAN and LAN and in video monitoring. The pattern of data interface is DCE, which can be connected with DTE or DCE equipment.



Technical Specifications:






E1 Interface



Interface Standard: Conforms to G.703 standard
Interface Rate: 2.048Mbit/s 50ppm
Vibration characteristic: Satisfies G.742 and G.823 standard
Transmission capacity: 1*E1
Clock Type: Internal-clock, route clock
Conncetor: BNC (75 ohm), RJ45 (120 ohm)
Interface Impedance: 75ohm (unbalanced),120ohm (balanced)







V.35 Interface



Rate N x 64Kbps, N= 1-32
Interface Compatible with V.35 standard
Connector M34 female
Connect mode DCE
Clock G.703 recovery clock, internal clock, V.35 external clock
Working Condition
Input Voltage AC220V; DC-48V
Power Consumption <=5W
Operating temperature 0C - 50C
Storing Temperature -40C ~ +70C
Relative humidity 95%

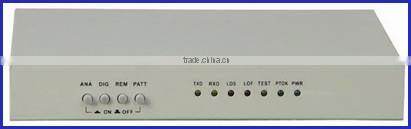

V.35 Converter picture

G.703 Standard E1 to V.35 Converter



V.35 Converter Application Diagram:

G.703 Standard E1 to V.35 Converter



Certification:

G.703 Standard E1 to V.35 ConverterG.703 Standard E1 to V.35 Converter



G.703 Standard E1 to V.35 Converter

G.703 Standard E1 to V.35 Converter
