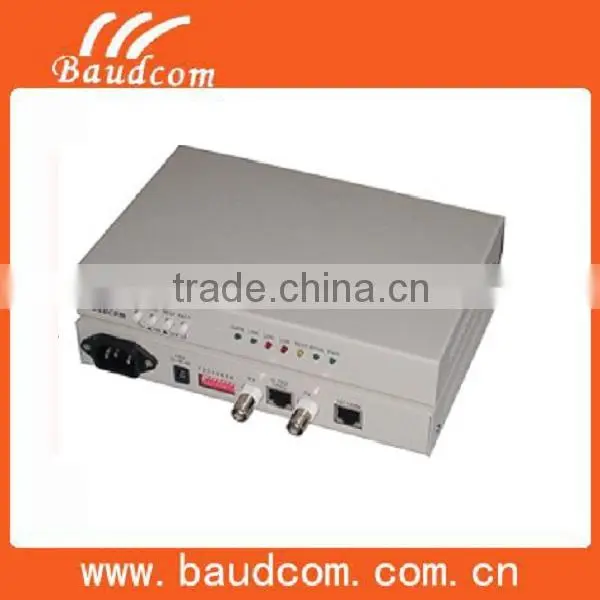

Protocol converter Single Port E1 to Ethernet Converter

10/100BaseT Interface

Number of Interfaces

1~4 port

Interface Types

10/100BaseT

Standards Compliance

IEEE 802.3

Single Port  E1 Converter Protocol

User Programmable HDLC or GFP for option ,pls notify when order it

Connectors

RJ45 (10/100 BaseT Electrical)

E1 Interface - Technical Specifications

Number of Interfaces

1 port

Line Rate

E1 (2.048Mbps ± 50 bps)

Line Code

HDB3

Electrical

ITU-T G.703

Single Port  E1 Converter Jitter

G.823

Impedance

75hom/120 Ohms

Connectors

BNC(75ohm) or RJ45(120ohm)

Mechanical Specifications

Rack Mounting or MINI type

Standard 19-inch DIN rack (Ethernet over 4 /8/16 E1 model) or Desktop type

Single Port  E1 Converter Dimension

19inch 1 U: 433mm(L)*138mm(D)*44mm(H)

Desktop type : 210mm(L)*140mm(D)*30mm(H)

Management

Web managed built-in or SNMP central management via chassis for option, pls notify when order it

Power Supply

Input AC/DC voltage

-48V DC ( nominal ) / AC also available

Range of input

-36V to -72V DC /90V~260VAC

Temperature

0 centi degree to 55 centi degree

Single Port  E1 Converter Humidity

95% RH (non-condensing)

Cooling

Convection Cooling

Order information

BD-E1-ETH/AC

Ethernet over single E1 converter,AC220V

BD-E1-ETH/DC

Ethernet over single E1 converter,DC-48V
