Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Ethernet Over E1 Protocol Converter

Ethernet Over E1 Protocol Converter

Name: Ethernet Over E1 Protocol Converter
Brand: Baudcom E1 Protocol Converter
SKU: 100394675
Availability: InStock

Ethernet Over E1 Protocol Converter thumbnail-1

Ethernet Over E1 Protocol Converter thumbnail-2

Ethernet Over E1 Protocol Converter thumbnail-3

Ethernet Over E1 Protocol Converter photo-1

Ethernet Over E1 Protocol Converter photo-2

Ethernet Over E1 Protocol Converter photo-3

US$ 37.5 - 55 MOQ: 2 Units

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Baudcom E1 Protocol Converter

Model Number:

BD-E1-ETH

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

E1 Protocol Converter will ship from shanghai ningbo or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Baudcom E1 Protocol Converter

Model Number BD-E1-ETH

Ethernet over E1 Protocol Converter

Overview

The Ethernet over E1 Protocol Converteris s a single port E1 to Ethernet converter (also called Ethernet over E1 TDM converter) that provides high-speed LAN-to-WAN connectivity. Plugging directly into the 10/100Base-T port of a hub or LAN switch, the BD-E1-ETH provides E1 access at connection data rates of 2.048 Mbps. The Ethernet over E1 Protocol Converter is an excellent choice for internet access as well as LAN-to-LAN services.

Specification

10/100BaseT Interface
Number of Interfaces	1~4 port
Interface Types	10/100BaseT
Standards Compliance	IEEE 802.3
Ethernet over E1 Converter Protocol	User Programmable HDLC or GFP for option ,pls notify when order it
Connectors	RJ45 (10/100 BaseT Electrical)

E1 Interface - Technical Specifications
Number of Interfaces	1 port
Line Rate	E1 (2.048Mbps ± 50 bps)
Line Code	HDB3
Electrical	ITU-T G.703
Ethernet over E1 Converter Jitter	G.823
Impedance	75hom/120 Ohms
Connectors	BNC(75ohm) or RJ45(120ohm)

Mechanical Specifications

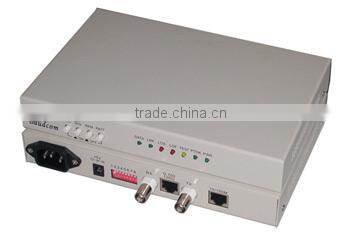

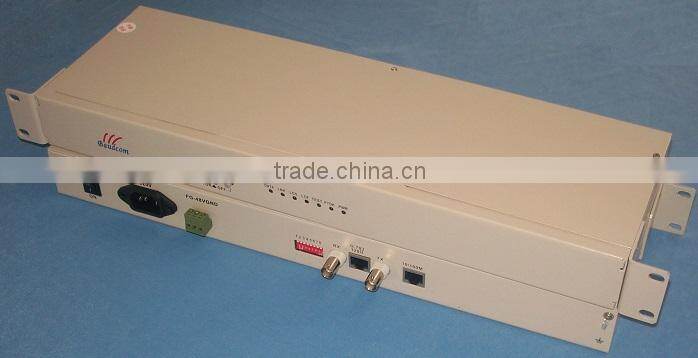

Rack Mounting or MINI type	Standard 19-inch DIN rack (Ethernet over 4 /8/16 E1 model) or Desktop type
Ethernet over E1 Converter Dimension	19inch 1 U: 433mm(L)138mm(D)44mm(H)
	Desktop type : 210mm(L)140mm(D)30mm(H)

Management
Web managed built-in or SNMP central management via chassis for option, pls notify when order it
Power Supply
Input AC/DC voltage	-48V DC ( nominal ) / AC also available
Range of input	-36V to -72V DC /90V~260VAC
Temperature	0 centi degree to 55 centi degree
Ethernet over E1 Converter Humidity	95% RH (non-condensing)
Cooling	Convection Cooling

Order information
BD-E1-ETH/AC	Ethernet over single E1 converter,AC220V
BD-E1-ETH/DC	Ethernet over single E1 converter,DC-48V
