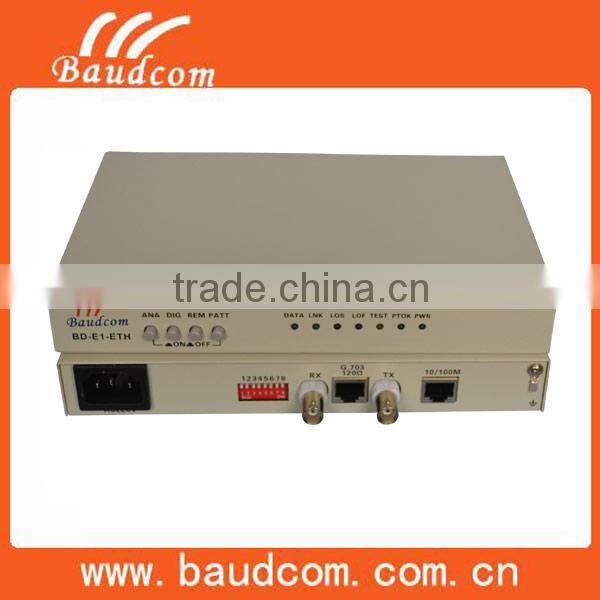

The 10/100base-t Converter Media Converter is a single port Ethernet over E1 converter (also called Ethernet over E1 TDM converter) that provides high-speed LAN-to-WAN connectivity. Plugging directly into the 10/100Base-T port of a hub or LAN switch, the E1 to ethernet converter provides E1 access at data rates of 2.048 Mbps. The G703 E1 to FE Converter is an excellent choice for internet access as well as LAN-to-LAN services.
10/100Base-T Ethernet Interface | |
Number of Interfaces |
1port |
Interface Types |
10/100Base-T |
Standards Compliance |
IEEE 802.3 ethetnet protocol,G.703 E1 protocol standard |
E1 to Ethernet Converter Protocol |
User Programmable HDLC or GFP for option ,pls notify when order it |
Connectors |
RJ45 connector |
E1 Interface - Technical Specifications | |
Number of Interfaces |
1 port |
Line Rate |
E1 (2.048Mbps ± 50 bps) |
Line Code |
HDB3 |
Electrical |
ITU-T G.703 |
E1 to Ethernet Converter Jitter |
G.823 |
Impedance |
75hom/120 Ohms |
Connectors |
BNC(75ohm) or RJ45(120ohm) |
Mechanical Specifications | |
Rack Mounting or MINI type |
Standard 19-inch DIN rack (Ethernet over 4 /8/16 E1 model) or Desktop type |
E1 to Ethernet Converter Dimension |
19inch 1 U: 433mm(L)*138mm(D)*44mm(H) |
Desktop type : 210mm(L)*140mm(D)*30mm(H) | |
10/100Base-T Ethernet Interface | |
Number of Interfaces |
1port |
Interface Types |
10/100Base-T |
Standards Compliance |
IEEE 802.3 ethetnet protocol,G.703 E1 protocol standard |
E1 to Ethernet Converter Protocol |
User Programmable HDLC or GFP for option ,pls notify when order it |
Connectors |
RJ45 connector |
E1 Interface - Technical Specifications | |
Number of Interfaces |
1 port |
Line Rate |
E1 (2.048Mbps ± 50 bps) |
Line Code |
HDB3 |
Electrical |
ITU-T G.703 |
E1 to Ethernet Converter Jitter |
G.823 |
Impedance |
75hom/120 Ohms |
Connectors |
BNC(75ohm) or RJ45(120ohm) |
Mechanical Specifications | |
Rack Mounting or MINI type |
Standard 19-inch DIN rack (Ethernet over 4 /8/16 E1 model) or Desktop type |
E1 to Ethernet Converter Dimension |
19inch 1 U: 433mm(L)*138mm(D)*44mm(H) |
Desktop type : 210mm(L)*140mm(D)*30mm(H) | |

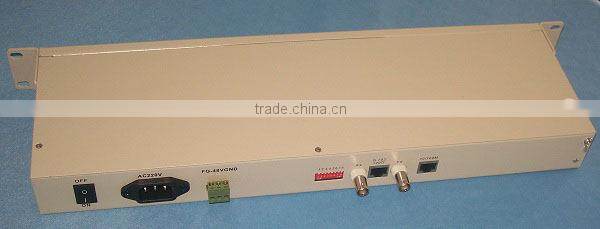

19Inch rack mount 10/100base-t Converter Media Converter picture with double power

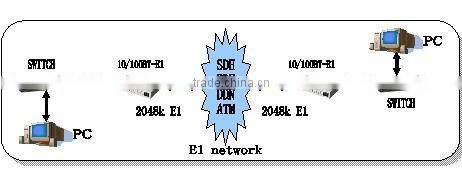

10/100base-t Converter Media Converter Typical Application:
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
The devices will be well packaged by carton with Foam or other shock proof materials.
Order information | |
BD-E1-ETH/AC |
E1 to FE converter,single E1,2.048M,10/100M ethernet,power AC220V |
BD-E1-ETH/DC |
E1 to FE converter,single E1,2.048M,10/100M ethernet,power DC 48V |
BD-E1-ETH/R/AC |
E1 to Ethernet converter,single E1,2.048M,10/100M ethernet,19inch rack mount,power AC 220V |
BD-E1-ETH/R/AC+DC |
E1 to Ethernet converter,single E1,2.048M,10/100M ethernet,19inch rack mount,dual power AC 220V+DC48V |
OEM Product E1 to Ethernet Converter warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
