Product: BNC to IP Converter
Overview:
The BNC to IP Converter is multiservice node ring network system equipment is the highly integrated access devices with the bandwidth share function. The 2E1 device can realize two RS-232/485 and 2 Ethernet over 2 channel E1 aggregation transmission. The Ethernet interfaces in different nodes can consist a shared Ethernet switch.
The BNC to IP Converter can be used as Point to point application or used with central multi-service device as chain network or ring network. The 2E1 convergency device can meet customers’ kinds application by flexible, economical, maintenance application.It can be widely used in a variety of environments capture the telecommunications, electricity, water, finance, transportation, mining, public security and other data transmission services.
Product Charactoristic:
Based on self-copyright IC.
The device provide two channel E1 interface, two Ethernet and two RS232/485.
Ethernet port 10/100M half/full duplex auto-negociation.
RJ45 interface supports AUTO-MDIX.
The device can be used as point to point or ring network or chain network.
BNC 75-ohm dual coax and RJ45 120-ohm twisted-pair G.703 connections provided, and support 75ohm/120ohm adapt ;
Support Web management.
Power can support AC or DC or double power.
Technical Specifications:
| E1 Interface | Line Rate | 2.048Mbps±50ppm |
| Line Code | HDB3 | |
| Interface Standard | ITU-T G.703 | |
| E1 Impedance | 75Ω(unbalance) and 120Ω(balance | |
| Connections | Dual coax BNC and 120-ohm twisted-pair (RJ45) | |
| Jitter Tolerance | Finer than G.742 and G.823 | |
| Ethernet 10/100 Base-T Interface | Rate | 10/100M, full/duplex auto-negotiation |
| Protocol | Support IEEE 802.3 | |
| MAC Address Entries | 4096 Entiries | |
| Total Memory Sizes | 64MBits SDRAM | |
| Physical Interface | RJ45 | |
| Support AUTO-MDIX | ||
| Power Supply | Working voltage range wide, good, anti-disturb and Isolation, work stable |
|
| Option I | DC-48V,range DC-36V~DC-72C | |
| Option II | AC220V,range AC165V~AC240V | |
| Power Consumption | <=3 Watts | |
| Environment Condition | Operating Temperature | 0C~+50 C |
| Storage Temperature | -20 C~+70 C | |
| Relative Temperature | 95% (uncondensed) | |
| Dimension | 210mm(L) 140mm(W) 30mm(H) |
|

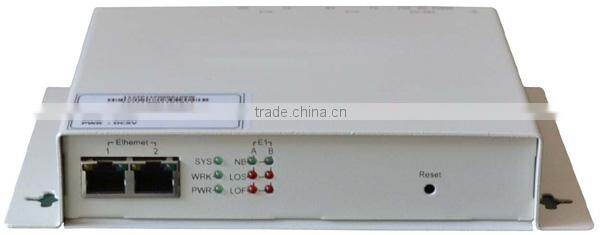

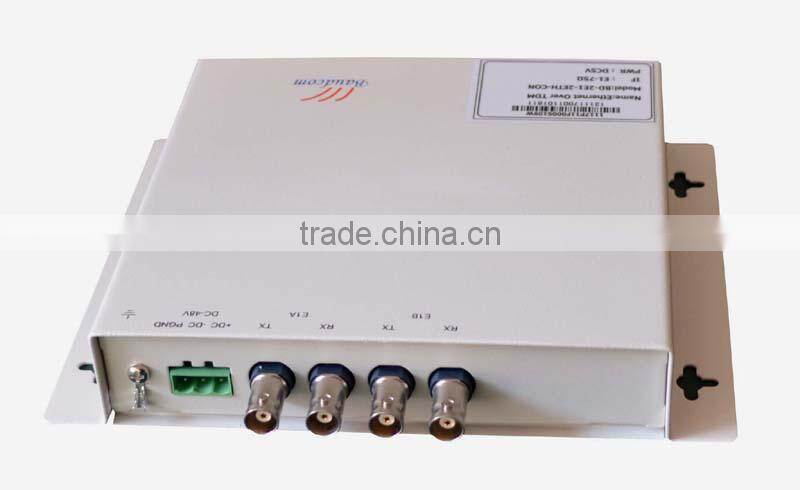

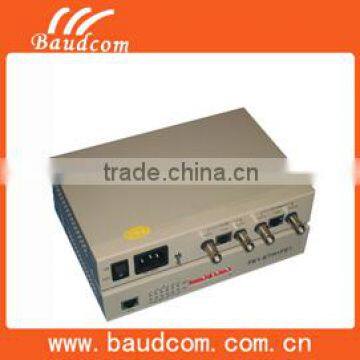

BNC to IP Converter Picture:

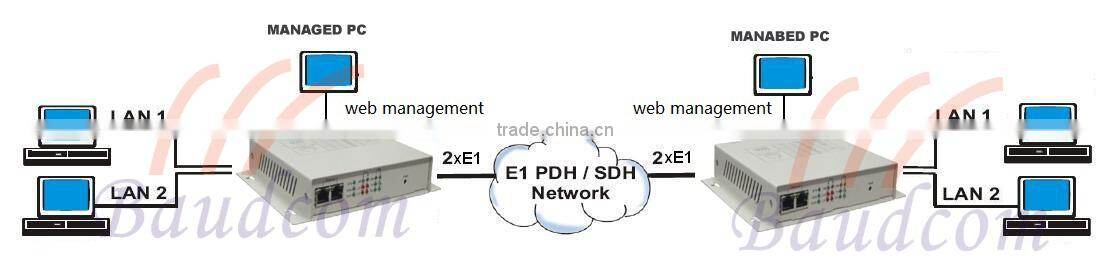

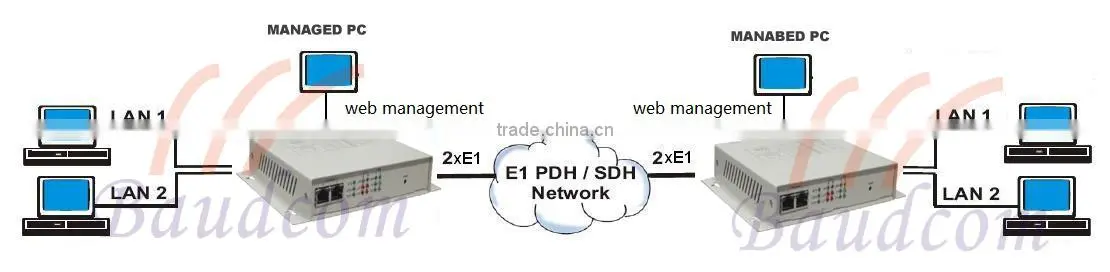

BNC to IP Converter Application Diagram:
