Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > E1 Over Ethernet Converter

E1 Over Ethernet Converter

Name: E1 Over Ethernet Converter
Brand: BAUDCOM E1 over Ethernet Converter
SKU: 100394433
Availability: InStock

US$ 230 - 342 MOQ: 2 Units

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

BAUDCOM E1 over Ethernet Converter

Model Number:

BD-E1-IP

Contact Supplier Request Quote Chat Now

Shanghai Baudcom Communication Device Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

E1 over Ethernet Converter will ship from shanghai ningbo or any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name BAUDCOM E1 over Ethernet Converter

Model Number BD-E1-IP

Overview:

The E1 over Ethernet Converter is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of E1 over Ethernet or E1 over IP network. The uplink ports are IEEE 802.3 compliant, 10/100BaseT auto-sensed Ethernet port.

Technical Specifications:

10/100BaseT Interface
Number of Interfaces	2 Uplink Ports(1+1 for uplink)
Interface Types	10/100BaseT
Standards Compliance	IEEE 802.3
Connectors	B RJ45 (10/100 BaseT Electrical)

E1/T1 Interface
Number of Interfaces	1/2//4/8/16 port
Line Rate	E1 (2.048Mbps ± 50 bps)
Line Code	HDB3
Electrical	ITU-T G.703
E1 over Ethernet Converter Jitter	G.823
Impedance	E1 (75hom/120 Ohms),T1(100OHM)
Connectors	BNC(75ohm) or RJ45(120ohm)

Mechanical Specifications
MINI type	S Desktop type for Ethernet over 1 E1 TDMOIP
E1 over Ethernet Converter Dimension	Desktop type : 185mm(L)136mm(D)35mm(H)

Management
Web managed built-in
Power Supply
Input AC/DC voltage	-48V DC ( nominal ) / AC also available
Range of input	-36V to -72V DC /90V~260VAC
Temperature	0 centi degree to 55 centi degree
Humidity	95% RH (non-condensing)
Cooling	Convection Cooling
Order information
BD-E1-IP	E1 TDM over IP,E1 support 75ohm or 120ohm,10/100Mbps ethernet,web base management,power AC220V

E1 over Ethernet Converter Picture:

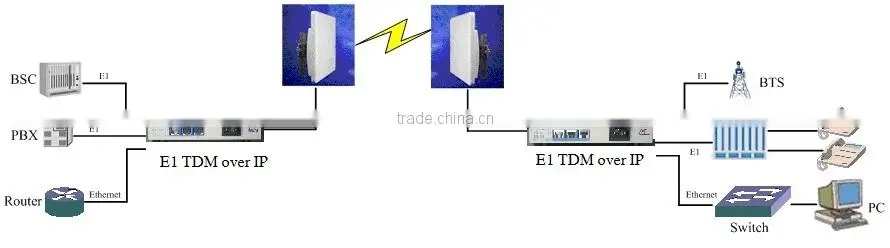

Application1:Point to Point Application

two units E1 TDM over IP work with voice device (PBX,PCM) and ethernet device (switch or router),transmitting voice and ethernet data over ethernet network.

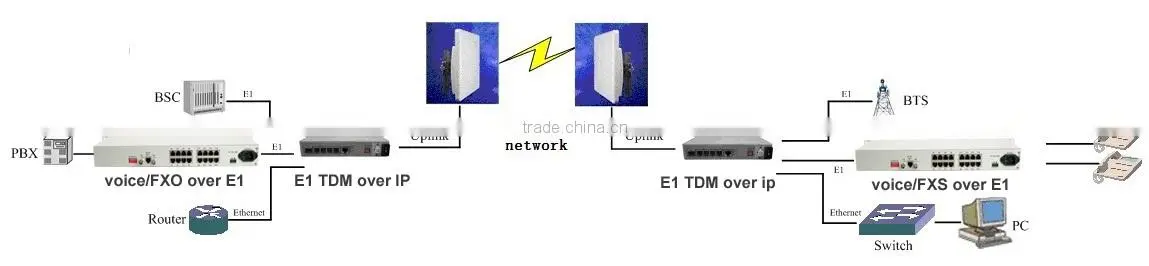

Application2: Point to Point Application

E1 TDM over IP work with Voice over E1 converter,transmitting voice and ethernet data over ethernet network.

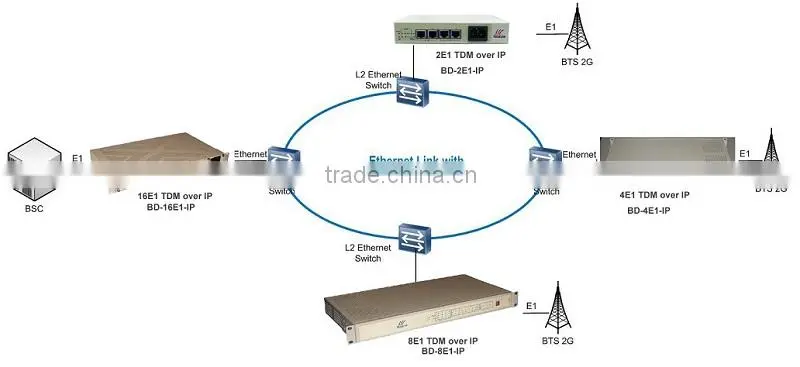

Application3: Point to multipoint Application

16units E1 TDM over IP work with 16E1 TDM over IP or E1/4E1/8E1 TDM over IP work with 16E1 TDM over IP.
