Product:Interface Converter Balun
The Interface Converter Balun (also called E1 Balun Adapter) solve the mismatch between UTP and coaxial cable. The Interface Converter Balun realize 75ohm(BNC) to 120ohm(RJ45) converter. The E1 Balun can be used for internal network connectivity T1/E1/CPE network transmission equipment and other applications.
Supporting E1 data rates to 2.048 Mbps, the Interface Converter Balun receives 75 ohm signals and converts them to 120 ohm for transmission over a network or reception by a CPE. The signals output by the BIC-C1 are scaled to match the pulse shape requirements specified by the CCITT G.703 standard. The E1 Balun can perform 120 ohm to 75 ohm signal conversion as well, giving the device a dual role.
Features:
- Interface Converter Balun Data Rates to 2.048 Mbps
- 75 Ohm Dual Coax to 120 Ohm Twisted Pair
- Bi-Directional Signal Conversion
- Interface Converter Balun No AC Power or Batteries Needed
- Male or Female Coax BNC Connectors Available
- Ultra-Miniature Enclosure
Technical Specifications:
Features |
|
² Data Rates to 2.048 Mbps ² 75 Ohm Dual Coax to 120 Ohm Twisted Pair ² Bi-Directional Signal Conversion ² No AC Power or Batteries Needed ² Male or Female Coax BNC Connectors Available |
Mechanical Specifications | |
Rack Mounting or MINI type |
Standard 19-inch DIN rack (16/24 ports) or Desktop type for single port |
E1 Balun Dimension |
19inch 1 U: 433mm(L)*86mm(D)*44mm(H) Desktop type :75mm(L)*45mm(D)*22mm(H) |
Twist pair pins as below:
RJ-48/45 |
PIN RJ-48/45 |
|
TX+ |
Sending Data + |
1 |
TX- |
Sending Data - |
2 |
RX+ |
Receiving Data + |
4 |
RX- |
Receiving Data - |
5 |

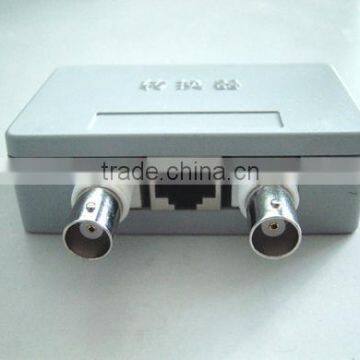

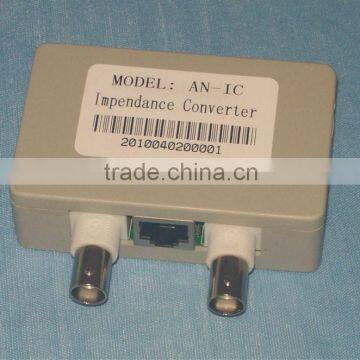

Interface Converter Balun Picture:
Balun Application Diagram:
