75ohm to 120ohm Balun Converter
- 3000 Unit / Units per Month
- 75ohm to 120ohm Converter will be shipped from shanghai ningbo or any port in China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | BAUDCOM 75ohm to 120ohm Converter | Model Number: | BIC-C16-F |
Type: | Adapter | Application: | Other | Gender: | Other |
Product Description
Product:75ohm to 120ohm Balun Converter

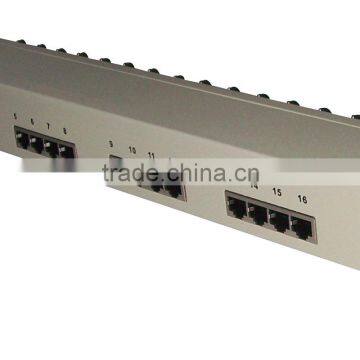

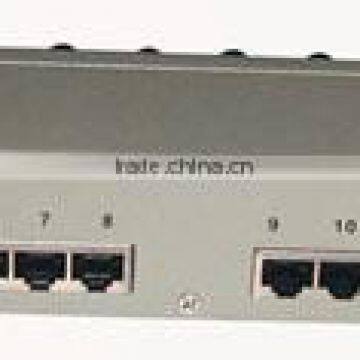

The 75ohm to 120ohm Converter provides 75ohm coax (BNC connector) to 120ohm twisted pair (RJ45 connector) conversion. The 75ohm to 120ohm Converter matches 16sets of dual 75ohm (female BNC connector) to 120ohm (RJ45 connector) converter. This feature allows network & datacom equipment manufacturers who are selling equipment for use in Cos with only 120ohm telco interface to offer their equipment to G.703 countries using 75ohm connections.
* 75ohm to 120ohm Converter data Rates to 2.048 Mbps
*75 Ohm (M4 connector) to 120 Ohm Twisted Pair (RJ45)or 120ohm DB68 connector;
* 75ohm to 120ohm Converter supports Bi-Directional Signal Conversion
*2U high enclosed chasiss
*Mounts in a standard 19 inch(48.3cm) rack
*No AC Power or Batteries Needed

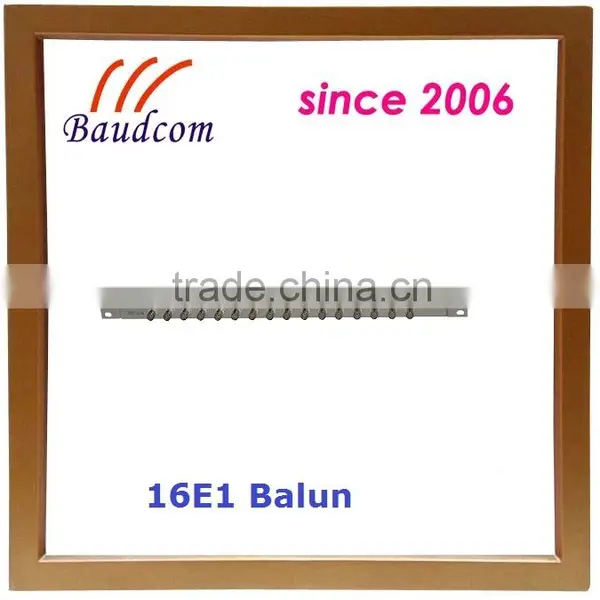

*16 Female BNC connector Available

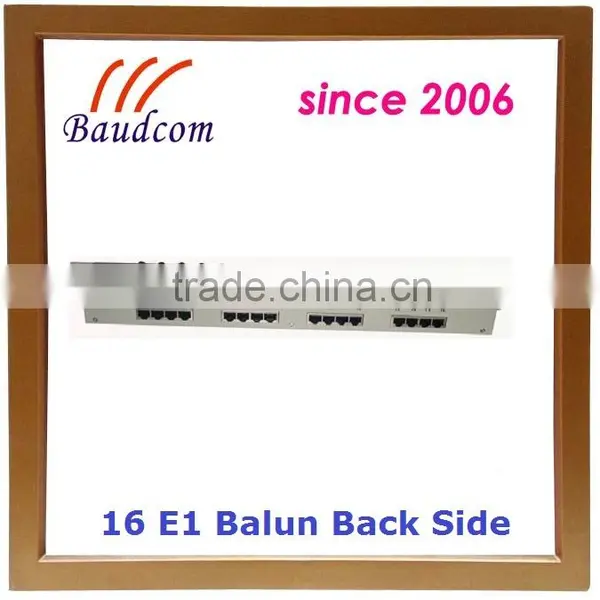

*BNC connector and RJ45 connector are front
G.703 Interface | BNC connector | 75OHM |
RJ45 DB68 connector | 120OHM | |
RJ45 connector | 120OHM as 1 2 TX,4 5 RX | |
Dimension | 483mm(L) | |
88mm(W) | ||
18mm(H) |

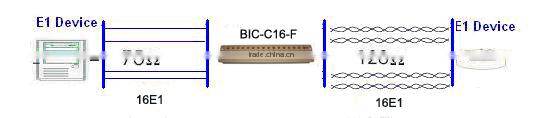

75ohm to 120ohm Converter Application Diagram:
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.What's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Wholesale and retail
- OEM manufacture
- New product.
- MOQ1pcs for our stock products.
- Delivery: within3days for small order.
- High quality,Competitive price, Best price.
Note
- 3 levels of lightning protection, antiseptic, dustproof, electrostatic prevention;
- OEM, flexible custom made service
BIC-C16-FB | 75ohm to 120 ohm 16E1 balun converter,1.5U,19inch rack mount |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
