Product: PCM 4 channel multiplexer
PCM 4 channel multiplexer is a kind of point-to-point fiber transmission device. BAUDCOM designed 8 POTS(FXO/FXS),also can be plus 1~4 Ethernet over E1(G.703), and it could match different customer requirement
- realizes long-distance monitoring of local device to the remote device based on self-copyright IC;
- provides 1 channels Ethernet connectors;
- 10M/100M,full half duplex self adapt, support VLAN;
- The Ethernet interface supports AUTO-MDIX( cross over and straight through self adapt);
- provides two clock types: E1 master clock, E1 line clock;
- provides 3 kinds of loop-return function, namely E1 self-looping at local end, Ethernet self-looping at local end, ordered to self-loop at remote end;
- realize the automatically rate set of local device to remote device;
- has the function of pseudo-random code testing, convenient for opening of the circuit,and can be used as an error code instrument;
- Ethernet supports rate of N*64k (N=1-32), which can be regulated from 64K to 1098K;
- supports 75Ω unbalanced and 120Ω balanced impedance at the same time;
- Provide Ethernet auto reset function, run more stably;
- various Ethernet data indicate functions, which indicate data transmission status timely;
- Provides 1-4 voice channels, support calling indication;
- Voice connector FXO (FXS), FXO connect to PBX and FXS connect to phone;
- support 4 wire E&M.
4 POTS (FXO/FXS) E1 PCM multiplexer PRODUCT CHARACTERISTIC | |
|
²provides 1~4 channel Ethernet ports for option; pls notisfy when order ²provides 4 channel POTS( FXO/ FXS),also can offer 2/4 wire E&M for option; ²support combination for POTS(FXO/FXS and 2/4 wire E&M) ²Ethernet port 10/100M, full/half duplex auto-adaptable ; ²Ethernet port supports AUTO-MDIX (twisted cable and straight cable auto-adaptable); ²4 channel voice connection, supports calling indication; ²Configuration: point to point; ²Voice port supports O port and S port, O port connects switch and S port connects user’s phone;
| |
FXO port | |
Alarm voltage |
75V |
Alarm frequency |
25HZ |
2 line input impedance |
600Ω (hanging off) |
Wastage |
40db |
FXS port | |
Alarm detecting voltage |
35V |
Alarm detecting frequency |
17HZ-60HZ |
2 line input impedance |
600Ω (hanging off) |
Wastage |
40db |
E&M port | |
E wire |
M wire |
Max current: 22mA |
steady current: 7 mA |
Saturation voltage: 3V |
min test current: 5 mA |
Dial speed: >20pps |
pluse dial recognition: >20pps |
10/100BaseT Interface | |
Number of Interfaces |
1~4 port |
Interface Types |
10/100BaseT (optional) |
Standards Compliance |
IEEE 802.3 |
Protocol |
User Programmable HDLC |
Connectors |
B RJ45 (10/100 BaseT Electrical) |
E1 Interface | |
Number of Interfaces |
1 port |
Line Rate |
E1 (2.048Mbps ± 50 bps) |
Line Code |
HDB3 |
Electrical |
ITU-T G.703 |
Jitter |
G.823 |
Impedance |
75hom/120 Ohms |
Connectors |
BNC(75ohm) or RJ45(120ohm) |
Mechanical Specifications | |
Rack Mounting |
Standard 19-inch DIN rack 30POTS model |
Dimension |
19inch 1 U: 433mm(L)*138mm(D)*44mm(H) |
Management for option | |
Web managed built-in or SNMP central management via chassis for option,pls notisfy when order | |
Power Supply | |
Input AC/DC voltage |
-48V DC ( nominal ) / AC also available |
Range of input |
-36V to -72V DC /90V~260VAC |
Temperature |
0 centi degree to 55 centi degree |
Humidity |
95% RH (non-condensing) |
Cooling |
Convection Cooling |
Order information | |
BD-E1-MUX04 |
4 POTS(FXS/FXS) over E1 (G.703) PCM multiplexer |
BD-E1-MUX04/ETH |
4 POTS(FXS/FXS) plus one Ethernet over E1 (G.703) PCM multiplexer |
BD-E1-MUX04/4ETH |
4POTS(FXS/FXS) plus 4 Ethernet over E1 (G.703)PCM multiplexer |
BD-E1-MUX04/2EM |
4 channel 2wire E&M over E1 (G.703)PCM multiplexer |
BD-E1-MUX04/4EM |
4 channel 4wire E&M over E1 (G.703) PCM multiplexer |

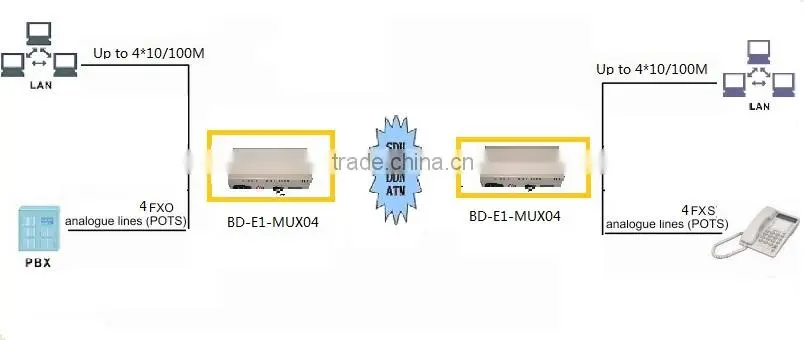

PCM 4 channel multiplexer picture:
