Product: 8ports Serial RS232 Converter
Overview:
The RS232 Converter is designed to make your industrial serial devices Internet ready in no time. The RS232 Converter device servers is the ideal choice for connecting your RS-232 or RS-422/485 serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The user can configure the 8serial ports as RS232 or RS422 or RS485,which is very convenient for customer’s application and reducing cost.
The RS232 Converter ensure the compatibility of network software that uses a standard network API (Winsock or BSD Sockets) by providing TCP Server Mode, TCP Client Mode, and UDP Mode. This excellent feature preserves your software investment and lets you enjoy the benefits of networking your serial devices instantly.
The RS232 Converter servers support automatic IP configuration protocols (DHCP) and manual configuration via the handy web browser console. Both methods ensure quick and effective installation. And with the RS232 Converter Windows Utility, User can search the serial device servers of local LAN ,also can config ,manager and monitor working state.
1. It use embedded real-time operating system,It’s stable and reliable performance .
2. It provides rich working mode to realize the serial devices connect to network immediately.
3. It supports the Real com/TTY drive that is compatible with the original software system completely
4. It has a general transparent transmission mode that is TCP Server,Tcp Client and UDP.
5. It supports Pair Slave/Pair Master Mode and reverse Telnet Mode.
6. We can config and manage through Web browser or Telnet terminal.
7. It supports a management software in Windows Platform,that provide a powerful management function.
8. We are free to choose the RS232/RS422/RS485 serial type.
9. It uses a 10/100M adaptive Ethernet port.
10.It embeds 15KV ESD surge protection.
11.The rate of serial communication is up to 460.8kbps
Application:
*Connect serial devices to server based applications over an IP network
* Manage remote serial console ports over an IP network
* Virtual modem capability for modem-based applications
Technology Specification:
RS232 Converter picture:

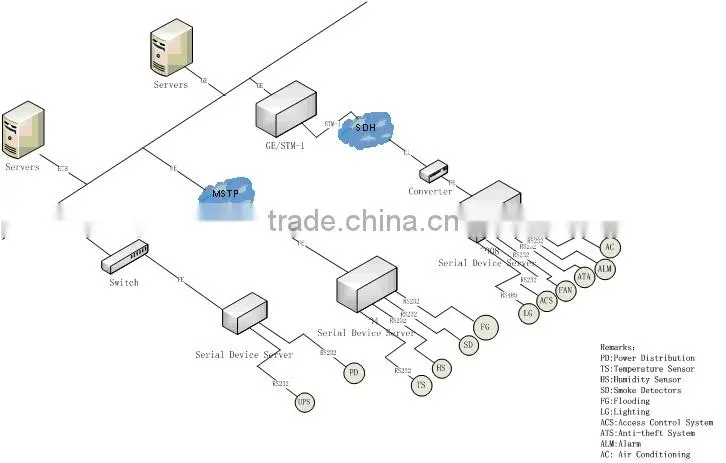

RS232 Converter Application Diagram:
