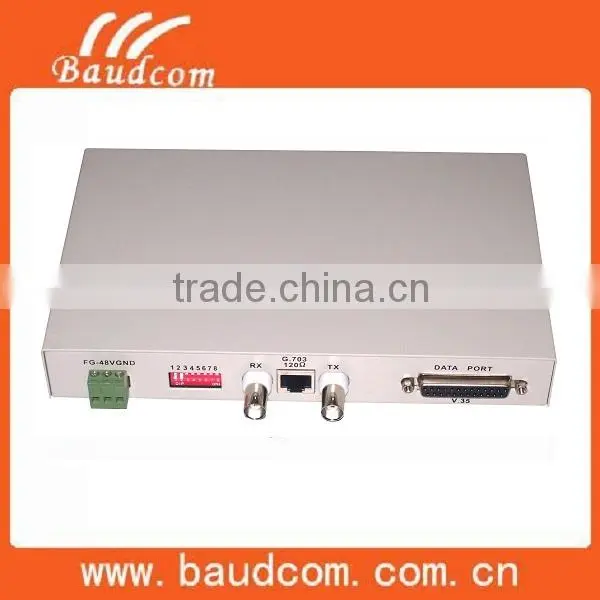

Product: Nx64K Framed V.35 to E1 converter
The framed Nx64K Framed E1 to V.35 converter provides conversion between ITU-T G.703 standard E1 interface and V.35 port.The Nx64K Framed E1 to V.35 converter realize V.35 over E1 conversion and provides safely seamless connection of communication between different devices with different interfaces. It can random use timeslot from G.703 E1 to compose N*64K (N=1-32) V35 channel, suitable for device that has part slot unused, and device transferring data only has V35 output. Data interface mode is DCE, can connect with DTE or DCE device.
- Monitoring remote device from local device (having 2 row indicator LED, upper indicates local, lower indicates remote)
- E1 port can randomly choose time slots from 31 slots with hardware.
- Provides many kinds of clock ways: E1 master clock, and E1 line clock, V.35 master clock, V.35 external clock.
- Having 3 loop back functions: E1 local loop, V.35 local loop, and let remote V.35 loop.
- Having pseudo random code test function, can used as a 2M Protocol Analyzer
- Support 120Ω/balance and 75Ω/unbalance impedance.
- V.35 port supports hot plug, can connect with DTE or DCE.
E1 Interface | |
Interface Standard |
comply with protocol ITU-T G.703 |
E1 Impedance |
120Ω (balance); |
Jitter tolerance |
In accord with protocol G.742 and G.823 |
Maximum Transmission Distance |
up to 500m |
Interface rate |
64Kbps |
Impedance |
75hom/120 Ohms |
Connectors |
BNC(75ohm) or RJ45(120ohm) |
V.35 Interface | |
V.35 rate |
N x 64Kbps, N= 1-32 |
Standard |
compatible with V.35 standard. |
Connector |
DB25 socket |
| Connect mode | DCE or DTE |
| Clock | G.703 recovery clock, internal clock, V.35 external clock. |
|
| working temperature:-10°C ~ 50°C | |
| Working Humidity:5%~95 % (no condensation) | |
| Storage temperature:-40°C ~ 80°C | |
| Storage Humidity:5%~95 % (no condensation) |
E1-V35/AC |
E1-V35/V24 converter, 75ohm, 120 ohm, 220V |
E1-V35/ DC48 |
E1/V35/V24 converter, 75 ohm, 120 ohm, DC-48V |
