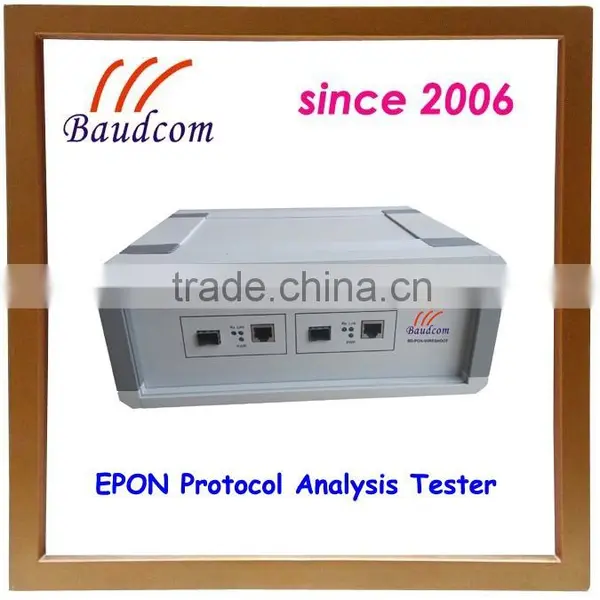

EPON Protocol Analysis Tester
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
EPON test challenges,why we need EPON protocol analysis tester?
For EPON development and troubleshooting, we can’t know what happened in EPON link if we can’t to inspect the PON link. Some issues bothers the Engineer constantly, such as:
1. How about the ONU register to OLT and why the ONU deregister?
2. The ONU can’t register to OLT, whether the ONU send the error register packet or the OLT don’t accept the ONU register.
3. If packet loss, it’s OLT? Or ONU? Which ONU?
4. The OAM is failure, you don’t know whether the OLT’s message is incorrect or the ONU don’t have response.
5. ………
So it’s time to try the WireShoot
1. WireShoot is the complete EPON analysis system that maximizes the effectiveness of engineers that design or dimension EPON product by giving them a tool to rapidly isolate the specific causes of performance or protocol conformance issues.
2. Provides a detailed insight into the structure of bandwidth management messages, uncovering protocol issues that are the underlying causes of performance issues.
3. Monitoring the traffic and EPON protocols (MPCP & OAM) between the ONU & OLT, providing in-depth protocol analysis
4. Providing convenient tools for EPON monitoring, performance analysis, and trouble shooting
5. Rapidly isolates performance issues to the ONU or the OLT. Engineers can determine whether they should debug an ONU or an OLT——this greatly decreases test time as knowing where to look to solve problems.
6. Engineers can verify compliance to the 802.3ah & CTC specification and ensure “interoperability readiness” of ONUs/OLTs.
7. Conformance with 802.3ah
8. Conformance with CTC extended
Function |
Detail |
PON frame analyze |
Monitoring the traffic and EPON protocols (MPCP & OAM) between the ONU & OLT, providing in-depth “On-PON”analysis. |
Detailed EPON protocol analysis |
Provides a detailed insight into the structure of bandwidth management messages, uncovering protocol issues that are the underlying causes of performance issues. |
Rapidly isolates performance issues to the ONU or the OLT |
Providing convenient tools for EPON monitoring, performance analysis, and trouble shooting,Engineers can determine whether they should debug an ONU or an OLT. |
Identifies EPON specific timing issues |
Triggers, filters and captures together work to measure compliance of an ONU to the tight timing windows. |
EPON protocol conformance test |
Analyze the EPON MPCP and OAM protocol |
OLT and ONU interoperability testing |
Engineers can verify compliance to the802.3ah or CTC specification and ensure “interoperability readiness”ofONUs/OLTs |

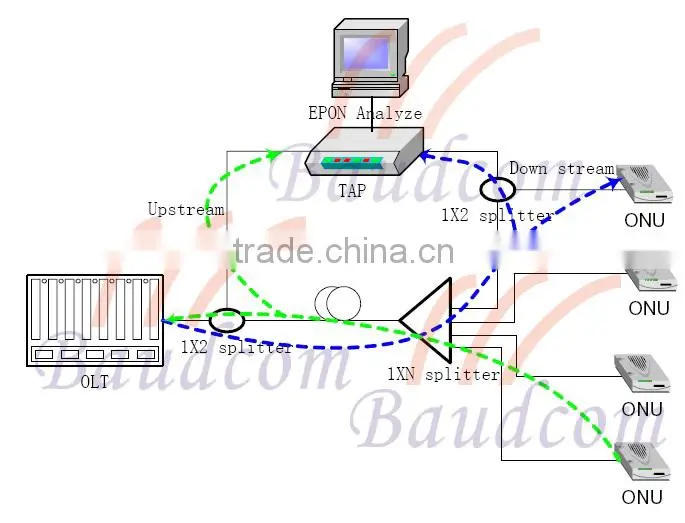

EPON Protocol Analysis Tester Application:
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for gepon olt ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
| BD-PON-WIRESHOOT | EPON protocol testing,Power AC 220V or DC 48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
