Product: Hot selling Fast Ethernet Gigabit Ethernet GEPON ONU
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
The Hot selling Fast Ethernet Gigabit Ethernet gepon onu (optical network unit) is a equipment used in PON (passive optical network) networking system to provide data service for end users.The main function of GE ONU is receiving the optical signals from downlink and convert it into ethernet signals then deliver to users.And receiving the ethernet signals from uplink signal of users equipment or networking and switch it into optical signals then deliver to upper networking through PON networking system.
Hot selling Fast Ethernet Gigabit Ethernet GEPON ONU mainly used for FTTH (Fiber to home)/FTTO (Fiber to office)/FTTB (Fiber to Buiding) application. GEPON ONU BD-ONU-1XXH series support 1000Base-PX10/PX20 standard with 1:62 maximum optical splitting ratio and 10/20km distance, and provide one uplink GE PON port. BD-ONU-1XXH series ONU working with BD-OLT-8000 optical line terminal (OLT) cAN realize flexible network structure and maintenance and provide total FTTx solutions.
The Hot selling Fast Ethernet Gigabit Ethernet GEPON ONU adopts single fibre WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .It only needs one-core fibre to transmit data service.
Hot selling Fast Ethernet Gigabit Ethernet gepon onu provide one uplink GEPON port, 1* 10/100/1000BASE-T gigabit Ethernet port and 1*10/100BASE-T fast Ethernet port, which is suitable for the FTTX network system application.
Support port-based rate limitation and bandwidth control;
In compliant with IEEE802.3ah Standard
Up to 20KM transmission Distance
Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
Support Dynamic Bandwidth Allocation (DBA)
Support ONU auto-discovery/Link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.
Support power-off alarm function ,easy for link problem detection
Support broadcasting storm resistance function
Support port isolation between different ports
Support ACL and SNMP to configure data packet filter flexibly
Specialized design for system breakdown prevention to maintain stable system
Support software online upgrading
EMS network management based on SNMP ,convenient for maintenance
| Dimension | 135mm(L) x 100mm(W) x 35mm (H) |
| Weight | 0.75KG |
| Working Temperature | -5℃~50℃ |
| Storage Temperature | -40℃~80℃ |
| Working Humidity | 10%~90% |
| Power Supply | AC 220V |
| Power Consumption | <5W |

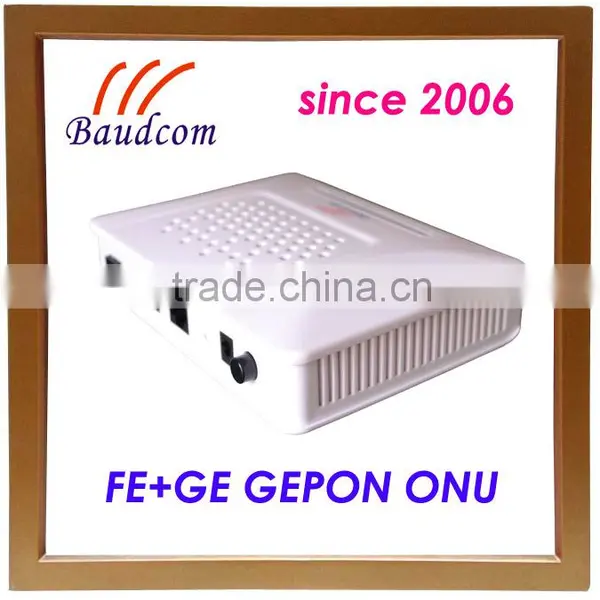

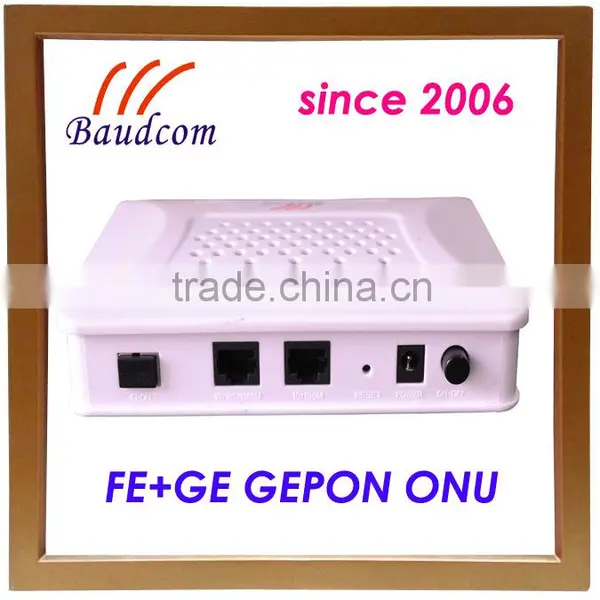

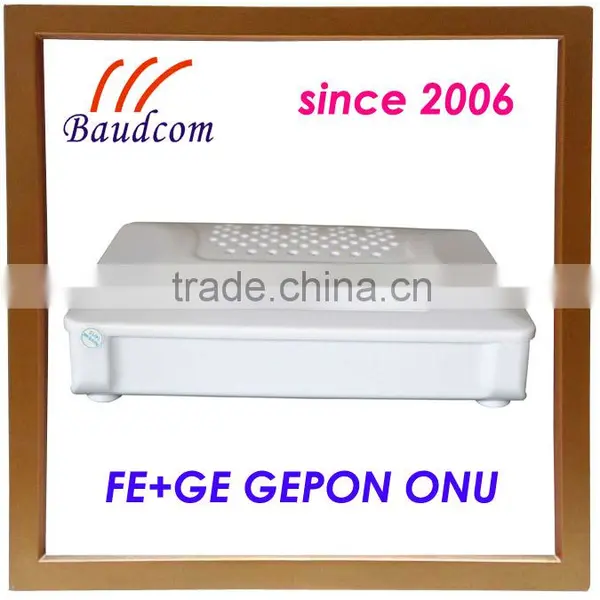

Hot selling Fast Ethernet Gigabit Ethernet gepon onu picture:
FAQ
1.How can i get a gepon onu sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping for gepon onu ?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
| BD-ONU-101H | GEPON ONU,one GE PON port,1*10/100M ethernet ports, Power AC 220V or DC 48V |
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
