04 Series Fiber Optic Power Meter
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
The 04 Series Fiber Optic Power Meter is the advanced version of OPM series. It is more functional and intelligent.Under the situation of laboratory, LANs, WANs and CATV as well as long distance optical network, Optical Power Meters, together with Stabilized Optical Laser Sources, can be used to identify optical fiber, measure optical attenuation, verify continuity an evaluate fiber link transmission quality.
Auto-wavelengths Recognition:
Baudcom’s Optical Laser Source can transmit with a wavelength identification digital encrypted protocol,
enabling the 04 Series Optical Power Meter to automatically switch to the proper calibration wavelength. This
feature reduces the need for communication between the two technicians and decreases the possibility of
making mistakes.
Referencing Function:
Signal encrypting can also give the receiving end information on the power to be used as reference, helping
ensure efficient referencing, even when the two units are far apart.
Computer Supported:
Memory capacity of 1,000 data items; enables data transfer to a PC via USB connection. With the software,
the datasheet can be saved as excel or txt, and print out directly.
Testing Range:
Maximum testing range up to 150km (when using BAUDCOM’s Optical Laser Source with BAUDCOM’s 2A04
Optical Power Meter).

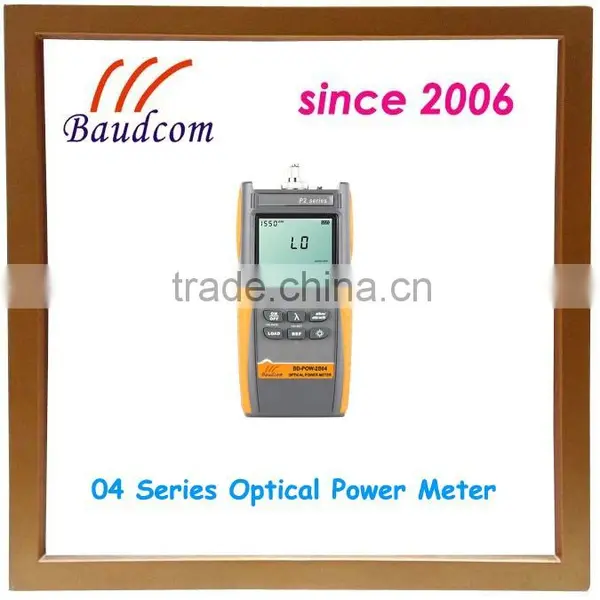

04 Series Fiber Optic Power Meter picture:
Order information:
BD-POW-2B04 |
Measuring Range(dBm): -50 to +26,Data storage & PC software supporting |
BD-POW-2A04 |
Measuring Range(dBm): -70 to +26,Data storage & PC software supporting |
- Integrated with high performance optical detector
- LCD backlight for easy operation in darker environments
- Two powering systems: internal rechargeable batteries or AC adaptor
- Wide dynamic range and high power measurement capability
- High accuracy and stabilized
- Auto-off function: saves the power and low power consumption allows extended operation in the field
- Recommended calibration interval
Model |
BD-POW-2A04 |
BD-POW-2B04 |
Calibrated Wavelength |
850/1300/1310/1490/1550/1625nm |
|
Detector Type |
InGaAs |
|
Accuracy |
±0.2db±1nW |
±0.2db±10nW |
Resolution |
0.01dB |
|
Linearity |
±5% |
|
Auto Power-off |
Yes |
|
Back-light |
Yes |
|
Reference Value |
Yes |
|
Connector |
Interchangeable FC/PC, SC/PC |
|
Measuring Range |
-70 to +10dBm @1550nm |
-50 to +26dBm @1550nm |
USB Interface |
Yes |
|
Data Storage |
Yes |
|
Wavelength Recognition |
Yes (≥-40dBm) |
Yes (≥-20dBm) |
Tone Detection |
270, 1k, 2kHz (≥-40dBm) |
270, 1k, 2kHz (≥-20dBm) |
Operating Temperature |
-10 to +50℃ |
|
Storage Temperature |
-20 to +70℃ |
|
Power supply |
2pcs*Ni-MH AA (2500mAh); USB cable |
|
Dimension |
160L*76W*45mmH |
|
Net Weight |
270g |
|
Standard Accessories: | ||
|
FC/PC adapter, SC/PC adapter, 2*AA rechargeable batteries, USB cable, test report, carrying bag, CD software, user manual | ||
Optional Accessories: | ||
|
interchangeable ST adapter ; male FC to female LC adapter for LC connector
| ||
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
After-sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
