PON OEO Fiber Repeater Optical Amplifier has been applied more and more widely in the domains of private network communication such as electric power, coal mining, broadcast and television, and army. As we know, the transmission distance in a PON system is restricted within 20km scope. Owing to the restriction of OLT transmission distance, the quantity of ONU devices has to be reduced in order to lengthen the transmission distance, which results in great waste of OLT interfaces and optical fiber resources occupied by OLT. Furthermore, the optical power is often small but the transmission distance typically exceeds 20km in these applications, in particular, the optical fiber resources may very possibly become inadequate at the entrances of optical fiber to communities or key clients.
PON OEO Fiber Repeater Optical amplifier is an optical transmission equipment which magnify and reshape signals during optical transmission process. The EPON/GPON repeater amplifier can provide 3R (i.e. re-amplification, reshaping and retiming) regeneration to signals during optical transmission, amplify weak input of optical signals, complete regeneration of electrical signals, and make transmission distance of PON become longer and support more extended users.The PON OEO fiber repeater/amplifier device can effectively save OLT quantity and lengthen network transmission distance. The OEO fiber repeater equipement have been widely applied for long-distance transmission in various optical communication applications.
Its advantages include in small size of optical signals, being economical and safe, and simple installation etc. Therefore, it can be applied in various optical transmission fields.
- In accord with IEEE802.3ah and Chinese communication industrial standard (YD/T 1475-2006);
- Extend PON system transmission distance from 20km to 60km or even 80km;
- Uplink: supports combination of different types of PON OLT interfaces and different physical connectors;
- Downlink: supports different types of PON ONU¡¡interfaces (shunt or ONU interface).
- Be compatible with GPON or EPON system.
- Be compatible with GPON/EPON OLT and ONU equipment manufactured by different vendors;
- 1U desktop equipment, small space occupation and low power consumption;
- Support kinds network management modes, local management on terminal console; Telnet-based remote logon network management, Web-based and SNMP-based direct GUI management.
- Supporting GPON/EPON OEO relay function
- 3R signal regeneration: Supporting 1550nm and 1620nm dual wavelength storage with externally connected passive equipment
|
Uplink: supporting receipt and transmission of 2.488G/s or 1.25G/scontinuous signals.
Downlink: supporting receipt and transmission of 1.25G/sburst-mode signals.
Supporting 60km/1:64 ODN network expansion
Where, OLT--->OEO BOX trunk supports 40km transmission;
OEO BOX--->ONU supports 20km/1:64 ODN power budget. Refer to the below figure for details:
| ||||||||||||||||
Applying SFF or SFP optical interface module, connected as shown in the above figure.
In EPON/GPON system, it will not generate any error code to the system and have no adverse effects on transmission or performance.
| ||||||||||||||||
| ||||||||||||||||
PON OEO Fiber Repeater Optical Amplifier picture:

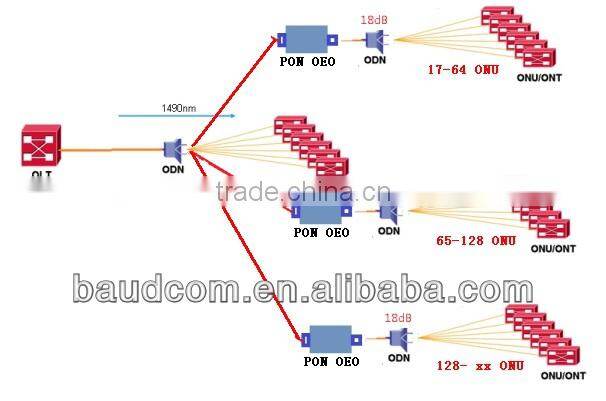

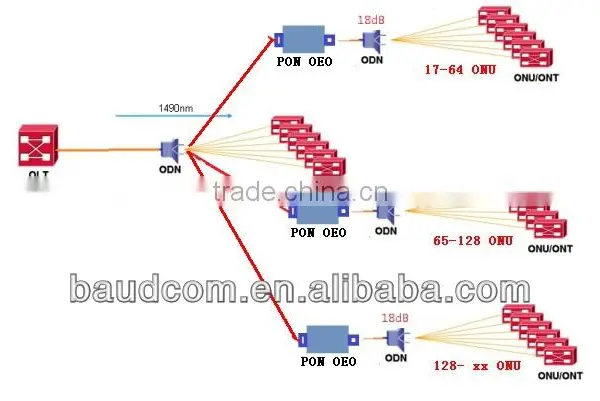

Typical Application:
| BD-PON-OEO | PON OEO fiber repeater,power AC220V or DC48V |
