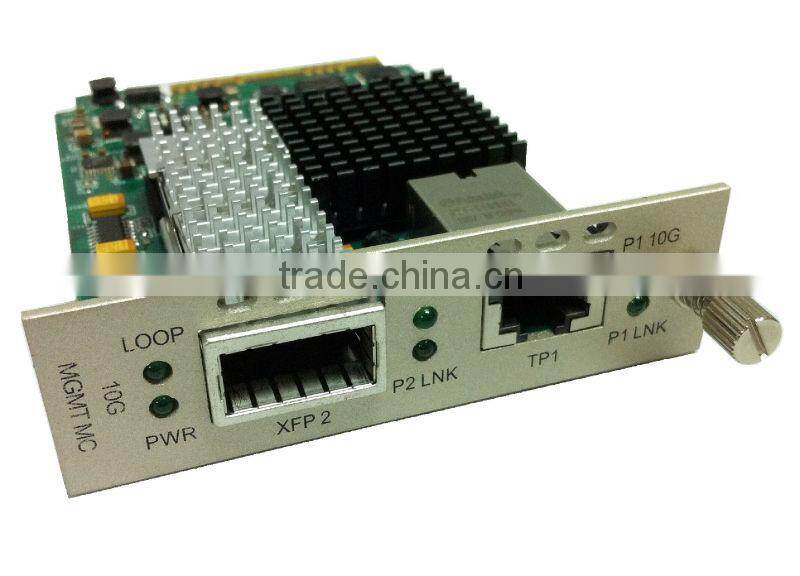

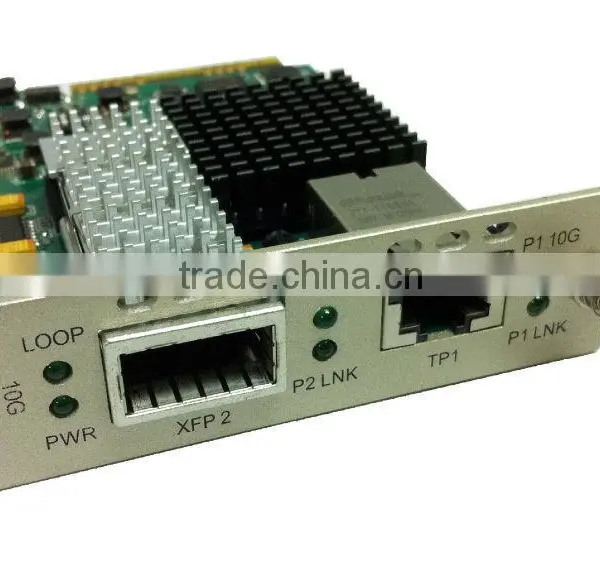

Baudcom 10G XFP Media Converter Card
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
Baudcom provides 10G Ethernet media converter between SFP+ to UTP,and XFP to UTP.No matter what kind of media applied for 10Gbps Ethernet,it used to be the fiber as the media for transmission.10G Ethernet standalone and module cards, brings you the best and simple solution for the Ethernet conversion between media of copper wire and fiber, with the speed of 10G.
The 10G Ethernet media converter’s module card allows you to cascade multiple BD10 2U Rack (16 channel) chassis for managing at the same time.
With various Interface:
SFP+ to RJ45
XFP to RJ45
1.Connection between fiber to copper10Gbps Ethernet equipment functionasfiber-to-copper media converter forlongdistance transmission
2.Media converter for networkbackbone(SAN, LAN, MAN)
3.Can be applied in Telecommunicationroom, R&D laboratory, Data center, andetc.
- Support Jumbo Frame
- Transparent Transport and very lowdelay
- Support ITUT prescribed DWDM/CWDMwavelength
- Support DMI function for SFP+/XFP fibermodule
- Support Loopback test function
- Economic In-band Management function
- Powerful Network Management function(Web,SNMP,Console)
- Support hot plugging
- Support 2U Rack (16 channel) andstandalone use
- Full State Led display
- Easy installation
- UTP cable length detection(only RJ45interface)
- Providing protections against lightingand static electricity for Ethernetnetwork and the network main system
Technical Information:
Model | ||||
Module Card |
BD-10G-SFP+ |
BD-10G-XFP |
||
Interface |
PortA |
SFP+ |
XFP |
|
PortB |
RJ45 |
RJ45 |
||
Transmission Speed |
10Gbps |
10Gbps |
||
Data |
Technical Indexes |
|
|
|
Protocol |
IEEE802.3an(10Gbase- T),IEEE802.3ae(10Gbase- SR/LR/ER/ZR) |
Access Type |
10G LAN |
|
Transmission Distance |
SFP+ module: Up to 80Km 10Gbase-T: 100meters Cat .6a cable |
|||
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|||
|
Network management information:
|
• Card type information • SFP+ or XFP fiber module detection • SFP+ or XFP fiber module DMI function (Temperature,Voltage,Optical power ) • Link status detector •Enable/Disabled Loopback test function • Enable/Disable PRBS Generator and checker function • Rate select (10Gbase-Lan or Wan ) • Remote card's status monitor(only in pairs ) |
|||
|
Power requirement
|
Rack-mountable : AC 85 ~220V OR DC -48V Standalone: AC 220V OR DC -48V Power consumption: ≤9W |
|||
Work Environment |
Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% ( non-condensing ) |
|||
|
Dimension
|
Card :11.5mm(W)×78mm(D) Standalone:156mm(W)×128mm(D)×32mm(H) |
|||

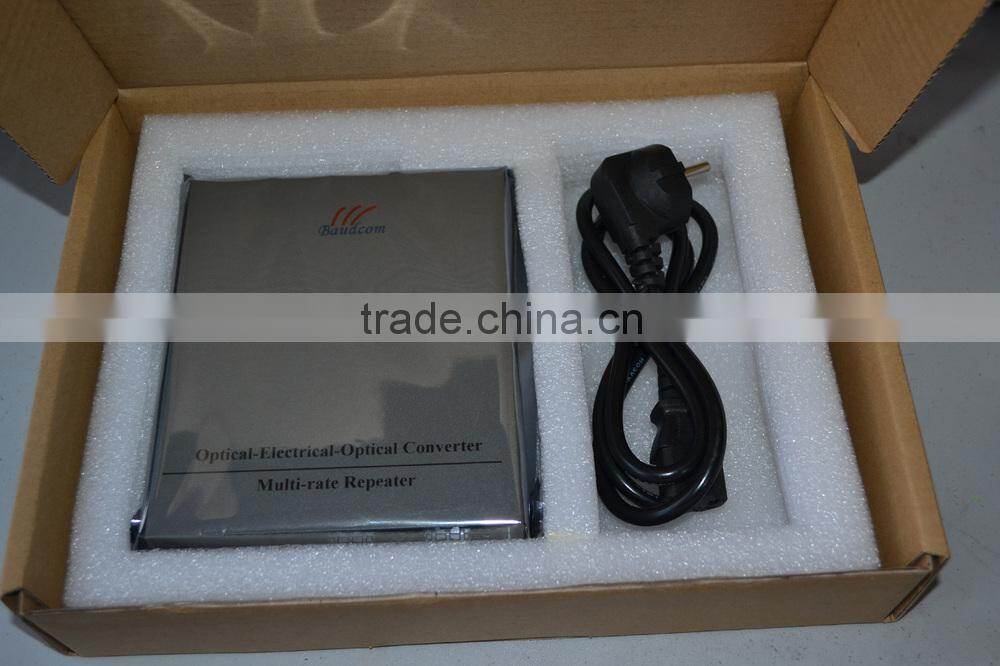

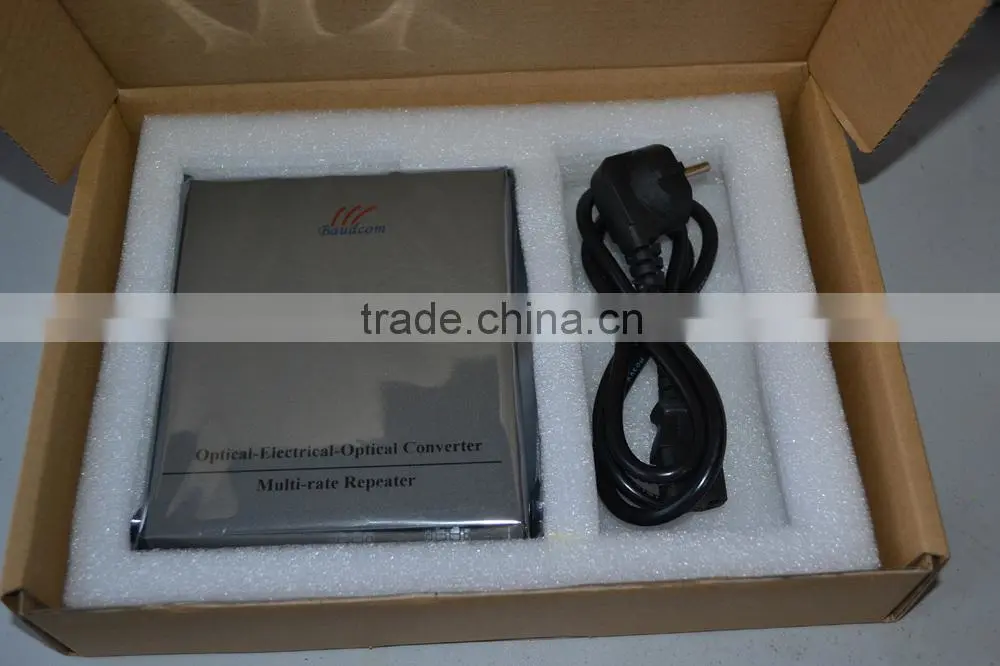

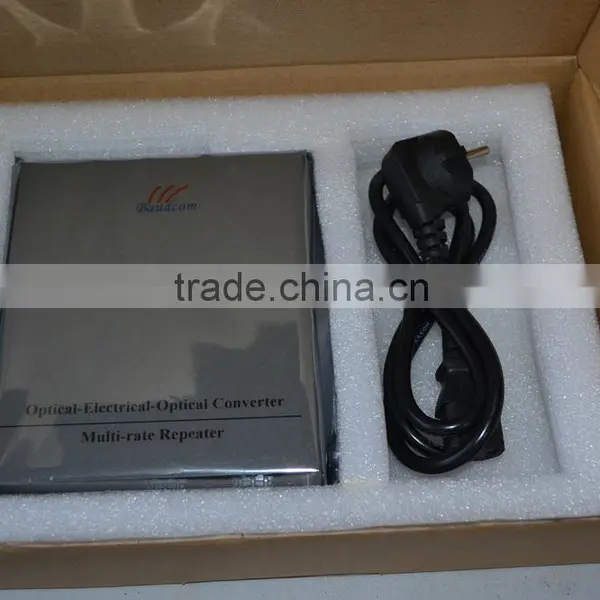

Baudcom high quality single fiber 10G Media Converter will be well packaged by carton with Foam or other shock proof materials.
Ordering information
| BD-10G-SFP+ | Standalone SFP+ to UTP 10G Media Converter,power AC220V or DC48V |
| BD-10G-XFP | Standalone XFP to UTP 10G Media Converter,power AC220V or DC48V |
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
