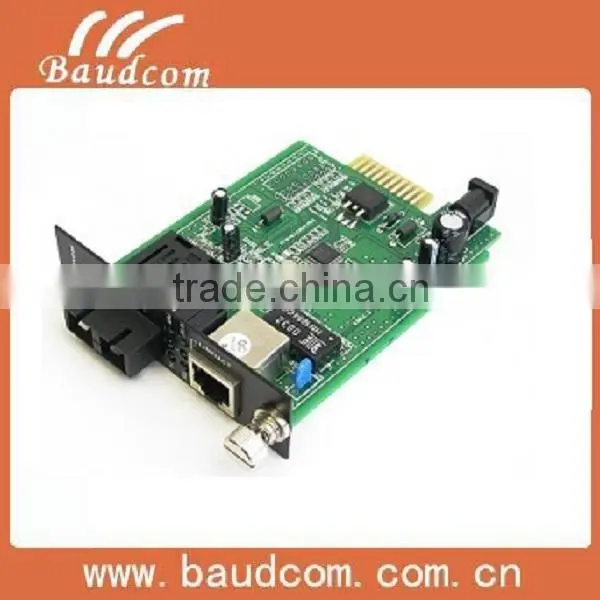

Fiber Optic Media Converter Card for Managed Rack Mount Chassis
Our advantage:Warranty is 3 years with good quality/Low MOQ:1Piece/Low price/OEM or ODM accepted.
The Media Converter Chassis with SNMP management consists of 1 SNMP card+16 function card+2 power supply module (redundant). Support our media converter series, making centrally located SNMP managed chassis
- installed with standard rack 19"
- It could realize media converter SNMP management. This is media converter module model name as BD03-card and SNMP module as BD03-card-NM
- can insert 16 function BD03-card , 1 SNMP module and 2 slots at back panel, support free combination of AC+DC redundant
- support of SNMP via Management Ethernet port, remote management support of Web-based Network Management
- Hot Swappable (Power supply, MC module)
- Power supply: used with 220 VAC 50 Hz, 2 units
- one module can supplied to chassis, fully equip
- have 2 Fans to radiate heat
| Parameter | Specifications |
| Number of slots | 17 |
| Structure | 2U rack |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC -36~72V | |
| Power output | DC5V 16A |
| Power configuration | Single power supply, or dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max power consumption | 95W |
| Operating temperature | -10~55iC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70iC |
| Maintaining humidity | 5% ~ 90% non-condensing |
| Dimensions of rack | 112mm (H) * 368mm (W) * 430mm (D) |
Ordering information
| BD03/AC+AC | Managed media converter rack chasiss,16slots for media converter card,support AC+AC power for redundant,2U high,19inch rack mount |
| BD03/DC+DC | Managed media converter rack chasiss,16slots for media converter card,support DC48V+DC48V power for redundant,2U high,19inch rack mount |
| BD03/AC+DC | Managed media converter rack chasiss,16slots for media converter card,support AC 220V+DC48V power for redundant,2U high,19inch rack mount |
| BD03/AC | Managed media converter rack chasiss,16slots for media converter card,single AC 220V power,2U high,19inch rack mount |
| BD03/DC | Managed media converter rack chasiss,16slots for media converter card,single DC 48V power,2U high,19inch rack mount |
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
