Product: GEPON ONU with RF CATV + 4 Fast Ethernet
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
Brief Views
GEPON ONU with RF CATV + 4 Fast Ethernet is a FTTX broadband GEPON (gigabit Ethernet passive opticatical network) access equipment, which is integrated with Ethernet and CATV. Based on mature and stable GEPON technology, the ONU (optical network unit) has powerful functions with high stability,high QoS guarantee,comprehensive management and flexible networking construction, etc. BD-ONU-304H fully complies with ITU-T,IEEE telecommunication technology standard.
BD-ONU-304H provide four 100Base-T fast Ethernet ports and one CATV RJ port. The GEPON ONU with RF CATV + 4 Fast Ethernet can support data,CATV, and ITV service, which is ideal FTTX application solution.
Functional Feature
Support IEEE802.3AH OAM function
Maximum distance (splitting Ratio:1:32):20km;Maximum distance (splitting Ratio:1:64): 10km
Support various service ,such as Data, and IPTV
CATV (RF) technical feature
Support optical power real-time detection(optional)
Support PPPoE,DHCP, static IP
Support networking management mode ,such as CLI, Web and EMS based on SNMP protocol
Support group upgrading online and software automatic upgrade
Support battery supplying power(through USD adapter port)
Physical Features
Dimension:260mmX160mmX40mm
Weight:0.75kg
Maximum power consumption:15W
Power supply:12VDC,power supply adaptor(220VAC into 12VDC)
Operation temperature: -5℃~ 45℃
Working humidity :10%~90%(no condensing)

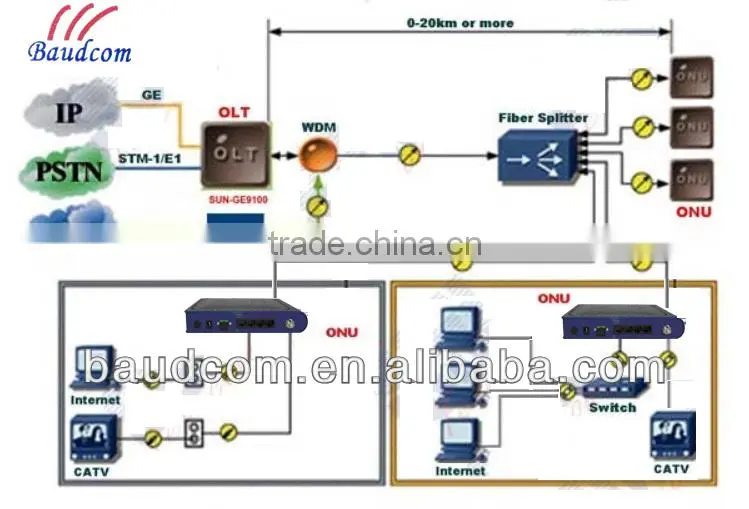

Typical Application:
FAQ
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
6.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging&Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certification
| Ordering information | |
|
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field. Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
