Product: 8 Channel Serial to Ethernet Converter
Our advantage
1.Warranty is 3 years with good quality
2. Min MOQ,only one is ok
3.more 16 years factory
4.OEM/ODM accept,CE passed
5.new design and fast delivery
The 8 Channel Serial to Ethernet Converter is designed to make your industrial serial devices Internet ready in no time. The Ethernet Converter device servers is the ideal choice for connecting your RS-232 or RS-422/485 serial devices—such as PLCs, meters, and sensors—to an IP-based Ethernet LAN, making it possible for your software to access serial devices from anywhere over a local LAN or the Internet. The user can configure the 8serial ports as RS232 or RS422 or RS485,which is very convenient for customer’s application and reducing cost.
The 8 Channel Serial to Ethernet Converter ensures the compatibility of network software that uses a standard network API (Winsock or BSD Sockets) by providing TCP Server Mode, TCP Client Mode, and UDP Mode. This excellent feature preserves your software investment and lets you enjoy the benefits of networking your serial devices instantly.
The Ethernet Converter servers support automatic IP configuration protocols (DHCP) and manual configuration via the handy web browser console. Both methods ensure quick and effective installation. And with the BD-8SERIAL-ETH’s Windows Utility, User can search the serial device servers of local LAN ,also can config ,manager and monitor working state.
1. It use embedded real-time operating system,It’s stable and reliable performance .
2. It provides rich working mode to realize the serial devices connect to network immediately.
3. It supports the Real com/TTY drive that is compatible with the original software system completely
4. It has a general transparent transmission mode that is TCP Server,Tcp Client and UDP.
5. It supports Pair Slave/Pair Master Mode and reverse Telnet Mode.
6. We can config and manage through Web browser or Telnet terminal.
7. It supports a management software in Windows Platform,that provide a powerful management function.
8. We are free to choose the RS232/RS422/RS485 serial type.
9. It uses a 10/100M adaptive Ethernet port.
10.It embeds 15KV ESD surge protection.
11.The rate of serial communication is up to 460.8kbps
Application:
*Connect serial devices to server based applications over an IP network
* Manage remote serial console ports over an IP network
* Virtual modem capability for modem-based applications
Technology Specification:
| Ethernet Interface | Rate | 10/100Mbps |
| Full/duplex auto-negotiation | ||
| Protocol | Support IEEE 802.3 | |
| RJ45 connector | ||
| Magnetic Isolation Protection | 1.5 KV built-in | |
| Serial Interface | Software and hardware flow control | |
| Terminal Block (3 pins per port) | ||
| TX and RX activity indicators | ||
| Serial Communication Parameters | Data Bits | 5,6,7,8 |
| Stop Bits | 1,2 | |
| Parity | None, Even, Odd, Space, Mark | |
| Baudrate | 110 bps to 460.8 Kbps | |
| Serial Signals | RS-232 | TxD, RxD,GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND | |
| RS-485-2w | Data+, Data-, GND | |
| Software | Network Protocols | ICMP, IP, TCP, UDP, HTTP, ARP |
| Configuration Options | Built-in WEB server | |
| Windows Virtual COM Drivers | Windows 2000/XP/2003/Vista/2008/7 | |
| Dimensions | 183 x 88 x 30mm | |
| Enviornmental Limits | Operating Temperature | 0 to 50°C |
| Storage Temperature | -40 to 85°C | |
| Ambient Relative Humidity | 95% (non-condensing) | |
| Power Requirements | Input Voltage | 5 VDC, -48VDC, 110VAC and 220VAC(See Ordering Information) |
| Power Consumption | <5 watts | |

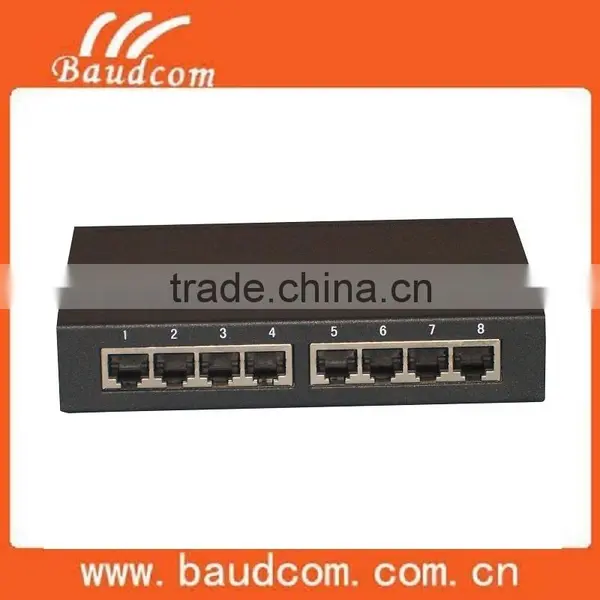

8 Channel Serial to Ethernet Converter picture:
Ethernet Converter Application Diagram:
1.How can i get a sample ?
You need place sample order to us.We will arrange the sample production for you.
2.Could you do design for us?
yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3.How can we place order?
After we made agreement on the product' parameters, we will make proforma invoice for your confirmation.when we got your advance payment (deposit) we will arrange the production and delivery.
If you have your own ship forwarder, we will use your ship forwarder to delivery goods. if you don't have ship forwarder, then when the goods arrived at Destination port, you must find a ship forwarder help you clear the custom.
4.How about the shipping?
For small orders, we will send the goods by International Express like HK Fedex, DHL, TNT or UPS. usually it takes about 7work days to arrive.If big quantity we will ship by Ocean transportation, it takes one month to arrive. if urgnet, you can select shipping by Air, but freight charge will be more expensive.
5.what's your products' advantages ?
A. good quality and competetive prices.
B. Strictly quality control when producing.
C. Professional team work, from design, development, producing,assemble,packing and shipping.
D. Aftersale services, if there is quality problem, we will offer you replacement for defective quantity.
Packaging & Shipping
The devices will be well packaged by carton with Foam or other shock proof materials.
Certifications
Factory production
Product testing
After-Sales Service
The goods warranty time is THREE years,we will provide best support by TEL,email,remote control or engineers in field.
Your any questions will be responsed within 12hours!
pls feel free contact us anytime, it's our honor to service for you. we are together.
