P3 P4 P5 P6 P7.62 P8 P10 Smd Programmable Rental Led Display

P3 P4 P5 P6 P7.62 P8 P10 Smd Programmable Rental Led Display thumbnail-1
P3 P4 P5 P6 P7.62 P8 P10 Smd Programmable Rental Led Display photo-1
US$ 500 - 4,500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LIYI
Model Number:
P3 P4 P5 P6 P7.62 P8 P10
Contact Supplier Request Quote Chat Now
Shenzhen Liyi Optoelectronic Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LIYI
Model Number P3 P4 P5 P6 P7.62 P8 P10
Usage Indoor
Tube Chip Color Full Color
Display Function Video
Pixels Other, P3 P4 P5 P6 P7.62 P8 P10
Screen Dimension 24m*14m

FACTORY PRICE, GOOD QUALITY, YOUR BEST CHOICE!!

Contact us to get more detail and wanted info.

Skype:liyisales03

P3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led display



1.Features:

· Die casted AL cabinets, high precision with seamless splicing

· With super-high brightness LED, high contrast

· High frame frequency, wider view angel

· With module development and distributed scan technology, high reliability

· Universal AC input / full range

· IP43 protection level, indoor solution

· PC synchronous or asynchronous control(optional)

· Use common video play software, easy to use

· 2 years warranty



2.SPECIFICATION

Item

LIYI-ID-P3SMD

LIYI-ID-P4SMD

LIYI-ID-P5SMD

LIYI-ID-P6SMD

Pixel pitch

3mm

4mm

5mm

6mm

Pixel density

111111 dots/m2

62500 dots/ m2

40000 dots/ m2

27777 dots/ m2

Pixel configuration

1R1G1B(2020SMD)

1R1G1B(2020SMD)

1R1G1B(3528SMD)

1R1G1B(3528SMD)

Max brightness

1300nit

1200nit

1800nit

1500nit

View angle(horizontal)

±60°

±60°

±60°

±60°

Gray scale

65536 (16 bit)

65536 (16 bit)

65536 (16 bit)

65536 (16 bit)

Colors

16.7M

16.7M

16.7M

16.7M

Color temperature

6500K-9300K

6500K-9300K

6500K-9300K

6500K-9300K

Refresh rate

3000HZ

3000HZ

3000HZ

3000HZ

Contrast ratio

4000:1

4000:1

4000:1

4000:1

Frame rate

60HZ

60HZ

60HZ

60HZ

Standard cabinet size

480×480mm

480×480mm

480×480mm

480×480mm

Weight

35KG/ m2

35KG/m2

35KG/m2

35KG/m2

Cabinet resolution

160×160 pixel

120×120 pixel

96×96 pixel

80×80 pixel

Cabinet material

Aluminum (Die-casting)

Aluminum (Die-casting)

Aluminum (Die-casting)

Aluminum (Die-casting)

Protection level

IP43

IP43

IP43

IP43

Max power consumption

1100W/m2

1000W/m2

900W/m2

800W/m2

AVE. consumption

350W/m2

350W/m2

300W/m2

300W/m2

Drive Method

1/16 scan, constant current

1/16 scan, constant current

1/8 scan, constant current

1/8 scan, constant current

Malfunction dot rate

0.1≤‰

0.1≤‰

0.1≤‰

0.1≤‰

Control mode

PC synchronous

PC synchronous

PC synchronous

PC synchronous

Input voltage(AC)

AC90—240V

AC90—240V

AC90—240V

AC90—240V

Operation voltage

DC5V

DC5V

DC5V

DC5V

Operation temperature

0~50℃

0~50℃

0~50℃

0~50℃

Operation humidity

10%~90%

10%~90%

10%~90%

10%~90%

MTBF

1000h

1000h

1000h

1000h

Life span

100000h

100000h

100000h

100000h

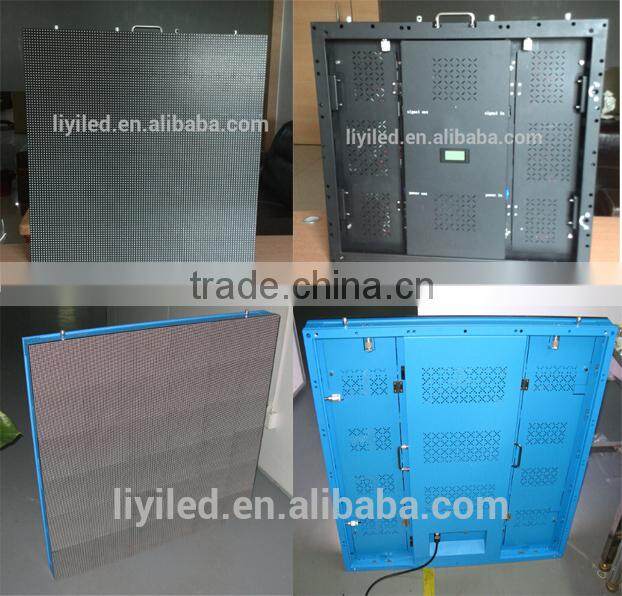

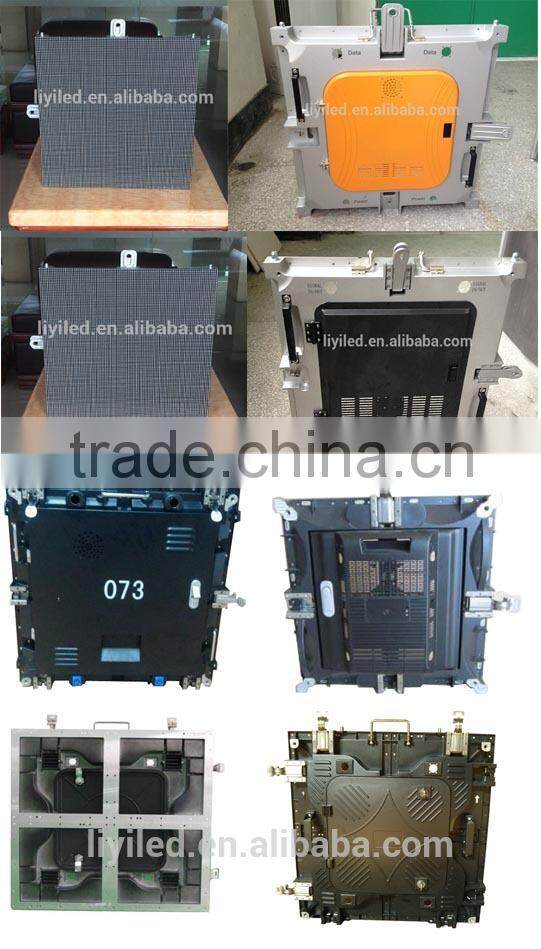

3. Cabinet Show

Aluminum haning cabinets

P3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led display



Aluminum die-casting cabinets

P3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led display

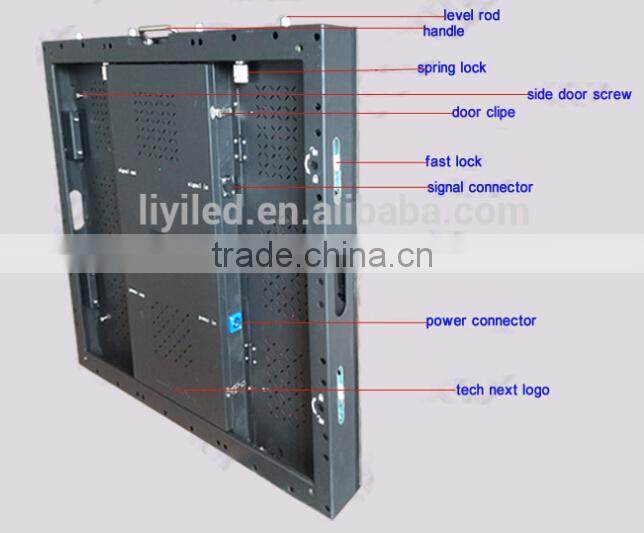

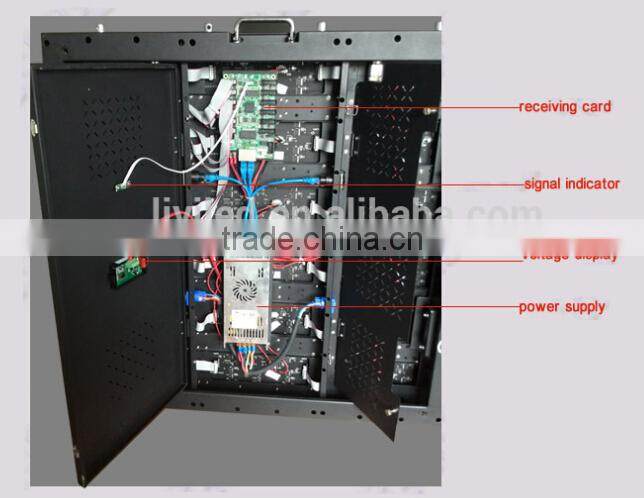

4. Cabinet structure

P3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led displayP3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led displayP3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led display

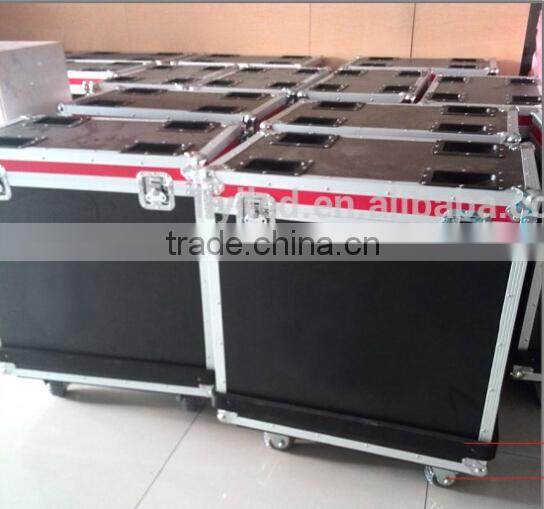

5.Packing

P3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led display

6.Trade terms:

1.Payment: 30% deposits before production, 70% balance to be paid before delivering .

2. MOQ:1 piece or 1 square meter

3.Sample can be delivered in 10days

4.Shipping freight are quoted under your requests.

5.Shipping port: Shenzhen, Mainland China.



7.Certificate

P3 P4 P5 P6 P7.62 P8 P10 smd programmable rental led display
