Outdoor P16 Waterproof LED de la Farmacia Cruz

Specifications

1. croix de  pharmacie  Features

Our LED Pharmacy Display integrated with Optics, Electron, Mechanism, and Computer technology. Using novelty and special LED display method, based on the principle of energy efficient,Fully utilize the display efficiency of single color LED. The biggest feature of our LED pharmacy display is utilizing cross display area,using single color and double color mixed way to show dynamic, word, time, date and temperature, to reach amazing display effect.

Main performance and features of our LED Pharmacy Cross Display:

• Adopt novel LED display technology, display plane dynamic image in cross area.
• Image display equipment integrated with Optics, Electron, Mechanism, computer and wireless communication technology.
• Adopt video grade double color LED, display images steadily, colorful and clearly
• Display real-time content. Customer can deal with dynamic file on computer with the special software offered by us. Then send it to LED Pharmacy cross to show via wire or wireless communication way.

2. LED Pharmacy Cross Display Working Process

Dynamic display content will be deal with by special software on computer, then will be send to LED Pharmacy Display via wire or wireless communication way.When LED Pharmacy Display work,It will show static or dynamic content from computer.Our LED Pharmacy can display static state picture, word, time, date, temperature, and also many kinds of enrichment and lively dynamic picture.

3. Technical Parameter

    1) Outdoor waterproof LED pharmacy cross display sign.

    2) Pixel Pitch:10mm,12mm,14mm,16mm,20mm,25mm

    3) Dimensions: 530×530mm,626×626mm,690×690mm,722×722mm,818×818mm,

                           946×946mm,1010×1010mm,1250×1250mm,1044×1044mm

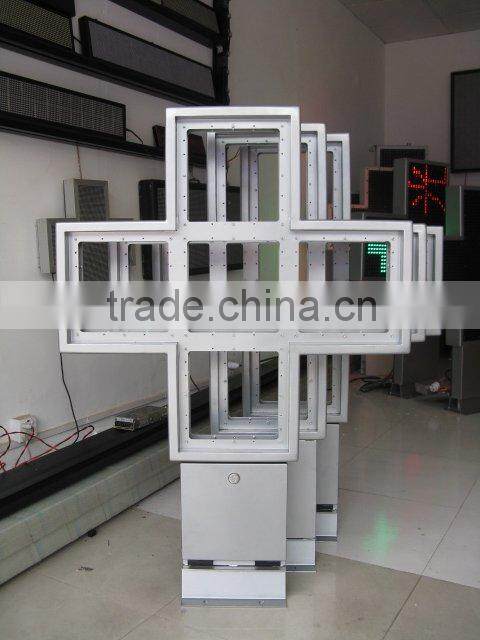

    4) Frame Material: steel or Aluminum.

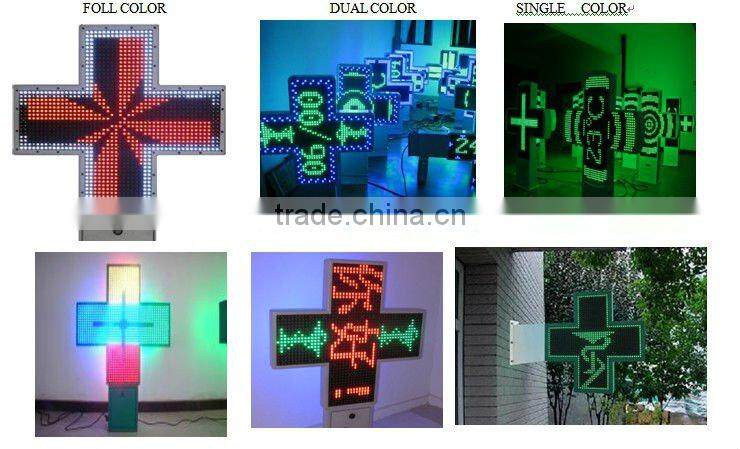

    5) Display Color: single color, dual color, full color

    6) Display Content: Animation,Graphics,Word,Time,Temperature

    7) Languages: Software support in English, French, Spanish ,Greece and Italian.

    8) Display Pixels: Each side 1280pixels, Double face, Total 2560 pixels

                               Or each side 3072pixels, Double face, Total 6144 pixels

    9) Viewing Angle: H120/ V45

    10) Brightness:3500-5500nits

    11) Communication: RF Wireless or RS232, RF Wireless MAX communication distance 800m.

    12) Working voltage: AC 176—264V/47-63HZ

    13)Working environment: Temperature -20°C - 70°C, Humidity 95 %

    14)Life span: ≥50000hrs

    15)Transportation caution: Anti-humidity,Anti-shake
