P10 single color white led moving message display, led scrolling message board, led display board
1.LED display introduction:
Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole.
2.Features:
· 10000 pixel dots per square meter resolution
· With super-high brightness LED, high contrast
· High frame frequency, wider view angel
· With module development and distributed scan technology, high reliability
· Universal AC input / full range
· IP65 protection level, outdoor solution
· PC synchronous or asynchronous control(optional)
· Use common video play software, easy to use
· CE, ROHS
3.Specifications
Item |
LIYI-OD-P10DIP |
Pixel pitch |
10mm |
Pixel density |
10000 dots/m2 |
Pixel configuration |
1R1G1B(346DIP) |
1R1G1B(5050SMD) |
|
Max brightness |
8000 nit |
View angle(horizontal) |
±55° |
Gray scale |
65536 (16 bit) |
Colors |
16.7M |
Color temperature |
6500K |
Refresh rate |
3000HZ |
Contrast ratio |
4000:1 |
Frame rate |
60HZ |
Standard cabinet size |
960×960mm |
Weight(DIP) |
60KG/m2 |
Weight(SMD) |
45KG/m2 |
Cabinet resolution |
96×96 pixels |
Cabinet material |
Steel (cold rolled iron) or Aluminum (optional) |
Protection level |
IP65 |
Max power consumption |
900W/m2 |
AVE. consumption |
400 W/m2 |
Drive Method |
1/4 scan, constant current |
Malfunction dot rate |
0.1≤‰ |
Control mode |
PC synchronous or asynchronous control(optional) |
Input voltage(AC) |
AC90—240V |
Operation voltage |
DC5V |
Operation temperature |
-20~60°C |
Operation humidity |
10%~90% |
MTBF |
1000h |
Life span |
100000h |
4.Function
-display content: text, pictures, video, and can receive several kinds of video signals like TV, VCR, DVD etc.;
-diverse cabinets: column mounted, hanging mounted, place installation, lifting installation etc.
5. Control mode:
Asynchronous control mode
cable, U disk (USB), Wireless (WIFI), LAN, Internet, mobile networks (3G/4G), 8 control modes (can be freely selected according to the actual scene). As follows:

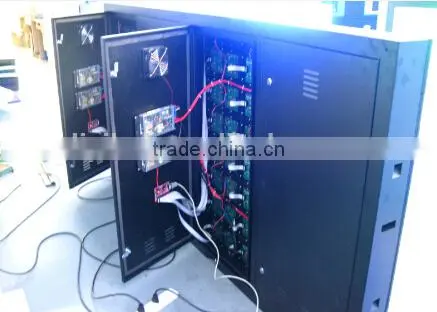

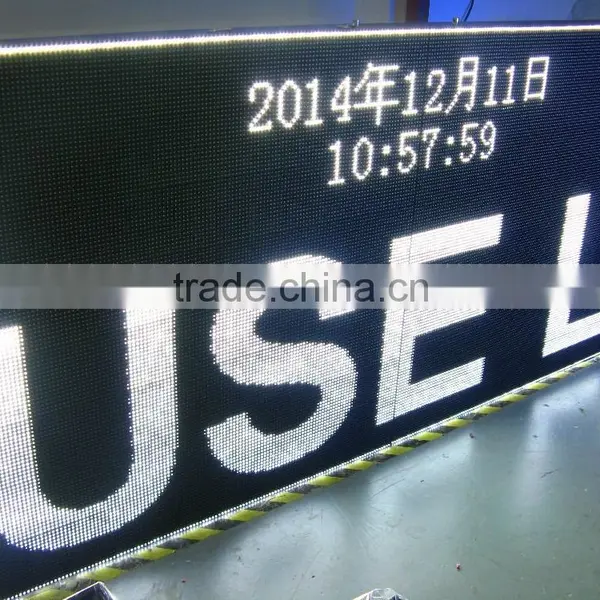

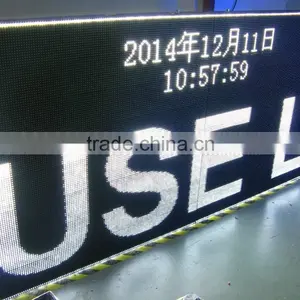

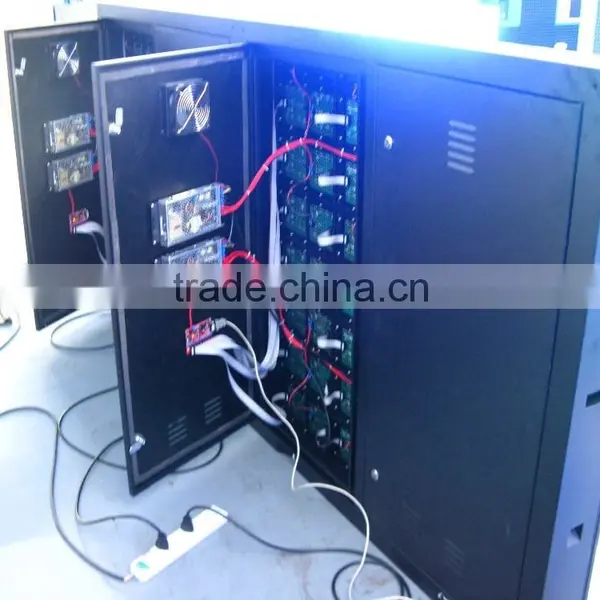

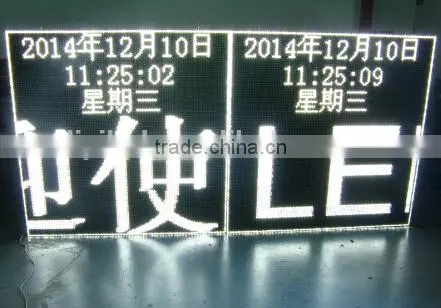

6.Product Show:
7.Other Types
Model |
Use environment |
Module size |
Display color |
Module Resolution |
Drive mode |
Data interface |
P10-OD-SC |
Semi-outdoor/Outdoor |
320*160(mm) |
Red/ Green/ Blue/ White/ Amber |
32*16 dots |
1/4 scan |
HUB 12 |
P16-OD-SC |
Outdoor |
256*256(mm) |
Red/ Green/ Blue/ White/ Amber |
16*16 dots |
1/4 scan |
HUB 12 |
P20-OD-SC |
Outdoor |
320*160(mm) |
Red/ Green/ Blue/ White/ Amber |
16*8 dots |
1/4 scan |
HUB 12 |
P25-OD-SC |
Outdoor |
400*200(mm) |
Red/ Green/ Blue/ White/ Amber |
16*8 dots |
1/4 scan |
HUB 12 |
P10-OD-TC |
Semi-outdoor/Outdoor |
320*160(mm) |
RG/RB/GB |
32*16 dots |
1/4 scan |
HUB 08 |
P16-OD-TC |
Outdoor |
256*256(mm) |
RG/RB/GB |
16*16 dots |
1/4 scan |
HUB 08 |
P20-OD-TC |
Outdoor |
320*160(mm) |
RG/RB/GB |
16*8 dots |
1/4 scan |
HUB 08 |
P25-OD-TC |
Outdoor |
400*200(mm) |
RG/RB/GB |
16*8 dots |
1/4 scan |
HUB 08 |
P6-OD-FC(SMD) |
Outdoor |
192*192(mm) |
1R1G1B(3528SMD) |
32*32 |
1/4 scan |
HUB 75 |
P8-OD-FC |
Outdoor |
256*128(mm) |
1R1G1B |
32*16 |
1/4 scan |
HUB 75 |
P10-OD-FC |
Semi-outdoor/Outdoor |
160*160(mm) |
RGB |
16*16 dots |
1/4 scan |
HUB 75 |
P10-OD-FC |
Outdoor |
320*160(mm) |
RGB |
32*16 dots |
1/4 scan |
HUB 75 |
P10-OD-FC |
Outdoor |
320*320(mm) |
RGB |
32*32 dots |
1/4 scan |
HUB 75 |
P16-OD-FC |
Outdoor |
256*256(mm) |
RGB |
16*16 dots |
1/4 scan |
HUB 75 |
P20-OD-FC |
Outdoor |
320*160(mm) |
RGB |
16*8 dots |
static |
HUB 75 |
P25-OD-FC |
Outdoor |
400*200(mm) |
RGB |
16*8 dots |
static |
HUB 75 |
P31.25-OD-FC |
Outdoor |
250*250(mm) |
4R2G2B |
8*8 dots |
static |
HUB 75 |
8.Packing&Shipping
-Strengthen plywood boxes/Flight cases
-shipping: small quantity by EXPRESS-DHL,UPS,TNT,FEDEX; for big quantity, air shipping and sea shipping will be more suitable.
9.Our Service
1) shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.
10.Factory Profile
11.After-sale Service
-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
