Home > Consumer Electronics > LED Display > Indoor LED Display > P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign

P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign

Name: P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign
Brand: LIYI
SKU: 100372815
Availability: InStock

P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign thumbnail-1

P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign thumbnail-2

P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign photo-1

P5 P10 Programmable Led Message Sign Outdoor Ph10 Led Display Module Led Advertising Sign photo-2

US$ 200 - 600 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LIYI

Model Number:

128*32 256*64

Contact Supplier Request Quote Chat Now

Shenzhen Liyi Optoelectronic Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN/HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LIYI

Model Number 128*32 256*64

Usage Outdoor

Tube Chip Color Other, single color/full color

Display Function Other, animation/word/vedio/graphics

Pixels Other, P5/P10

Screen Dimension 1310(L)*350(H)*75(T)mm

EXW-FACTORY-GOOD QUALITY!!

Skype: liyisales03

P5 P10 programmable led message sign outdoor ph10 led display module led advertising sign

1.Features:

· 128*32 pixel dots resolution

· Low power consumption

· 75mm thickness

· Adopt front service modules, easier for maintenance

· Universal AC input / full range

· IP65 protection level, outdoor solution

· PC asynchronous control

· 2 years warranty

2.SPECIFICATION

Item	LIYI-ST-P10-R	LIYI-ST-P10-G	LIYI-ST-P10-B	LIYI-ST-P10-W	LIYI-ST-P10-A	LIYI-ST-P10-RGB
Pixel pitch	10mm	10mm	10mm	10mm	10mm	10mm
Pixel configuration	1R	1G	1B	1W	1Y	1R1G1B
Pixel resolution	128×32 dots	128×32 dots	128×32 dots	128×32 dots	128×32 dots	128×32 dots
Max brightness	3500cd	8000cd	3600cd	8000cd	3600cd	8000cd
View angle(horizontal)	±60°	±60°	±60°	±60°	±60°	±60°
Gray-scale	1 grade	1 grade	1 grade	1 grade	1 grade	256 grade
Input voltage(AC)	220V	220V	220V	220V	220V	220V
Max power consumption	180W	180W	180W	180W	180W	470W
Cooling way	Natural cooling	Natural cooling	Natural cooling	Natural cooling	Natural cooling	Forced air cooling
Control mode	PC asynchronous control
Communication mode	LAN(RJ45),WIFI,U-disk to upload the program
Support program	Animation,text,date,time					Video,Animation, text,date,time
Protection level	IP65
MTBF	1000h
Life span	100000h
Operation temperature	-20~60°C
Operation humidity	10%~90%
Cabinet material	Steel (cold rolled iron)
Standard cabinet size	1310(L) ×350(H) ×75(T)mm
Net weitht	21KG
Packing size	1340(L) ×410(H) ×135(T)mm
Gross weight	23KG

Item	LIYI-ST-P5-RGB
Pixel pitch	5mm
Pixel configuration	1R1G1B(SMD)
Pixel resolution	256×64 dots
Max brightness	2500cd
View angle(horizontal)	±60°
Gray-scale	256 grade
Input voltage(AC)	220V
Max power consumption	400W
Cooling way	Forced air cooling
Control mode	PC asynchronous control
Communication mode	LAN(RJ45),WIFI,U-disk to upload the program
Support program	Video,Animation,text,date,time
Protection level	IP43
MTBF	1000h
Life span	100000h
Operation temperature	-20~60℃
Operation humidity	10%~90%
Cabinet material	Steel (cold rolled iron)
Standard cabinet size	1310(L) ×350(H) ×75(T)mm
Net weitht	16KG
Packing size	1340(L) ×410(H) ×135(T)mm
Gross weight	18KG

3.CONTROL MODE

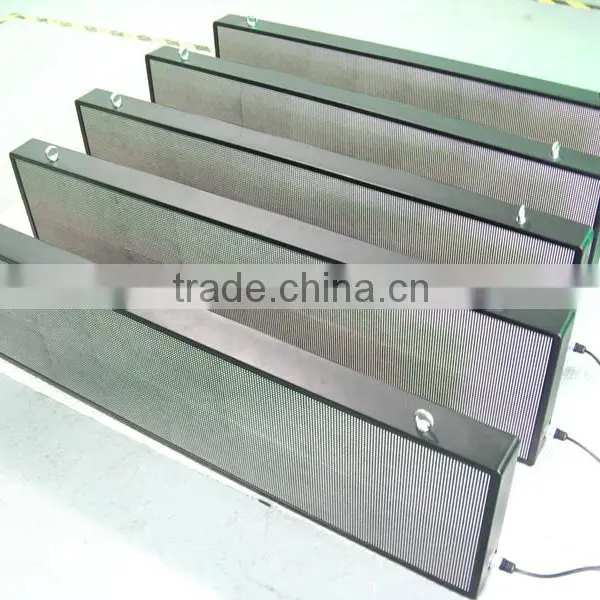

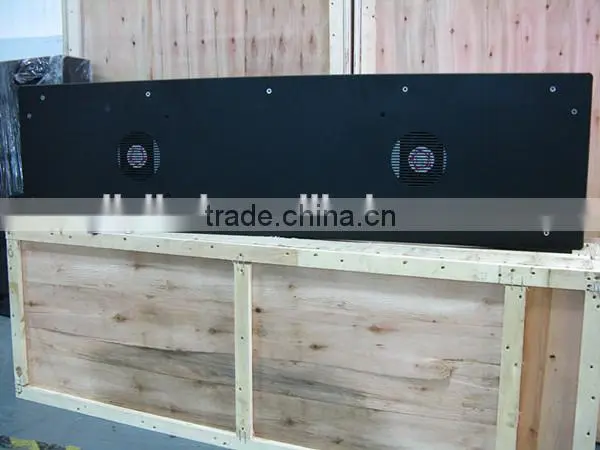

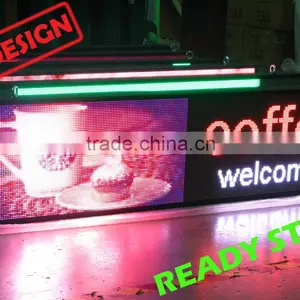

4.PRODUCT SHOW

5.STRONG OPTIONAL FUCNTIONS

Besides the existing functions, we can also accept customized production to extend more functions like temperature, humidity display, light intensity adjustment etc.

6.TRADE TERM

1.Payment: 30% deposits before production, 70% balance to be paid before delivering .

2. MOQ:1 piece or 1 square meter

3.Sample can be delivered in 10days

4.Shipping freight are quoted under your requests.

5.Shipping port: Shenzhen, Mainland China. 6.Discounts are offered based on order quantities.

7.CERTIFICATE
