Specifications
led display module p101.Pixel Pitch:10mm.
2.Parse of module:16*16dot.
3.Module resolution:160*160mm.
4.CE,RoHS
led display module P10,P10 LED display module ,outdoor led display module P10
1.Pixel Pitch:10mm.
2.Parse of module:16*16dot.
3.Module resolution:160*160mm.
4.CE,RoHS for led display.

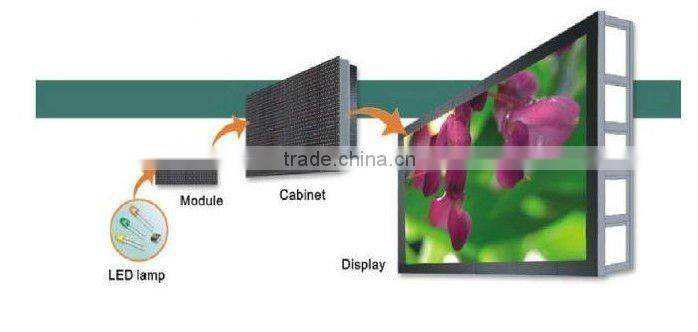

the led display working process
P10 outdoor waterproof led display module:
1.The module price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our led display module or prices will be replied in 24hrs.
3. We are offered for your unique design and some our current modules.
4.Protection of your sales area, ideas of design and all your private information.
No. | Specifications |
|
1. | Part No. | P10 led display module |
2. | LED chip | Taiwan/Silan/Cree/Cree Cotco |
3. | Physical Pixel Pitch | 10mm |
4. | Physical Pixel Density | 10000dots/m2 |
5. | Pixel composition | 1Red, 1Green,1Blue |
6. | Moduel Size | 160*160mm |
7. | Moduel resolution | 16*16dots |
8. | Cabinet thickness | < 170 mm |
9. | Bracket of cabinet | Easy to install onto the LED cabinet and unistall . |
10. | Brightness | ≥ 6500 nits |
11. | Colors | 16.7million |
12. | Viewing angle | Horizontal ≥120°, Vertical : ≥ 45° |
13. | Viewing distance | 10m -300m |
14. | Soft Rubber Mask | To protect player and LED display itself . |
15. | Scan frequency | ≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct |
16. | Video Frame Rate | ≥150 fps |
17. | Color temperature | 6500°K to 9500°K adjustable |
18. | Control method | Controlled by PC, synchronous display |
19. | Life span( half brightness) | ≥100,000 hours |
20. | Weight | 70Kg /sqm |
21. | IP rate | IP65 ( front side and rear side) |
22. | Average power consumption | 400W/sqm |
23. | Peak power consumption | 1300W/sqm |
24. | Input voltage | AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
25. | Operating Environment | Temperature:-20+60 Humidity:10%95%RH |
26. | Operating system | Windows 98/2000/ME/XP |
27. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI |
