Professional led display manufacturer, covering all pixels
Complete facilities, CE/ROHS, custom make
Skype:liyisales03

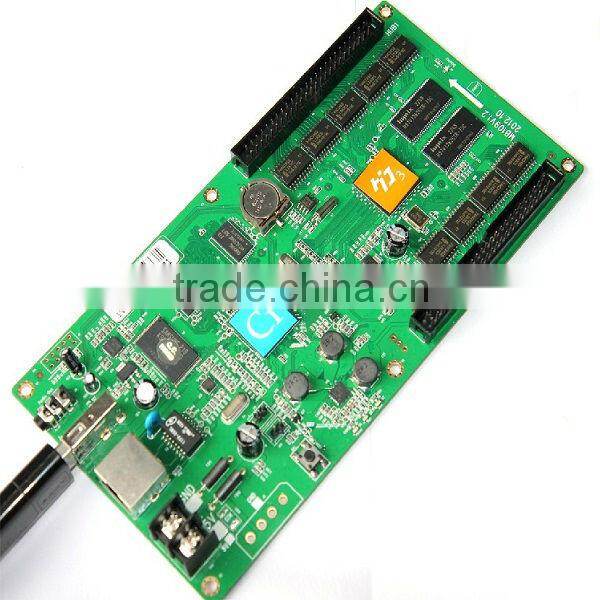

1/4 scan rgb controller, cheap hd-c1 full color led display card, p10 rgb led display control card
1.Features
1)indoor & outdoor full-color & single/dual color module.
2)plug and play without any network settings. The control card can automatically connect to computer without any network/IP setting
3)Video display, Image and Text Editing.
4)0-65536 gray scale.
5)U-disk expanding memory, plug and play. The most complete U-disk functions: U disk can be used to update program, work as extended memory, set screen parameters, adjust brightness, calibrate time and upgrade firmware;
6)stereo audio output.(No external audio module)
7)network cluster management
8)simple and flexible user interface, easy to operate.
9)Unique layer transparency setting function.
2.Technical Parameters
Type |
Indoor & outdoor full-color & single & dual color module |
Scan mode |
Static, 1/2 scan, 1/4 scan, 1/8 scan & 1/16 scan |
Control range |
Full color: 384*128 512*96 640*64 |
Gray Scale |
0-65536 |
Video format |
AVI, WMV, MP4, 3GP, ASF, MPG, RMVB,FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
Image format |
BMP, GIF, JPG, JPEG, PNG, GIF, etc. |
Text |
Text and Image being edited directly. Document like word, txt, rtf, html etc. can be edited as well after importing directly. |
Time |
Classic Analog clock, digital clock and various of clock with image background. |
Audio output |
Double track stereo audio output |
Memory |
512MB Flash, more than 2 hours’ program support. Indefinite expanding of U-disk memory. |
Communication |
10/100M Ethernet: Plug and play without any network settings. Support network cluster management, no need set each IP, could recognize automatically USB: U-disk expanding memory, plug and play |
Distance |
100 meters |
Port |
2pin 5V Power x1, 10/100M RJ45 x1, USB 2.0 x1, Stereo audio x1, 2 x 25pin HUB port x2 |
Software |
LedArt |

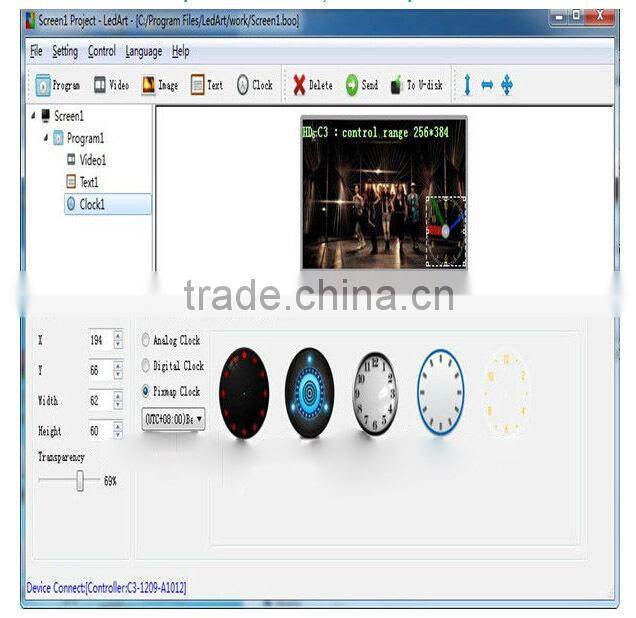

3.Software Interface
4.Extend Functions

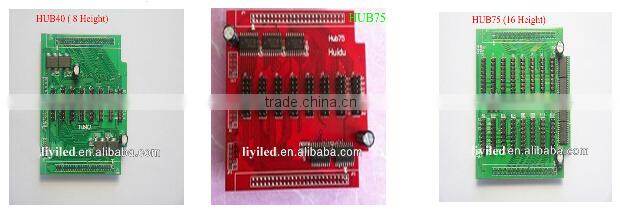

HUB transfer board
Temperature and humidity sensor

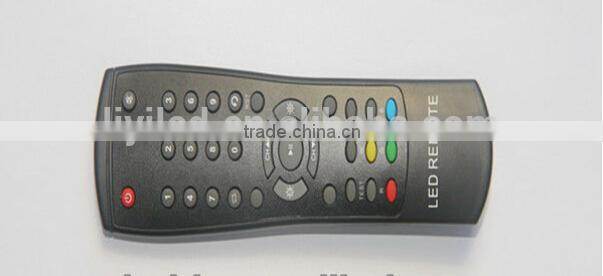

Remote controller
3G module

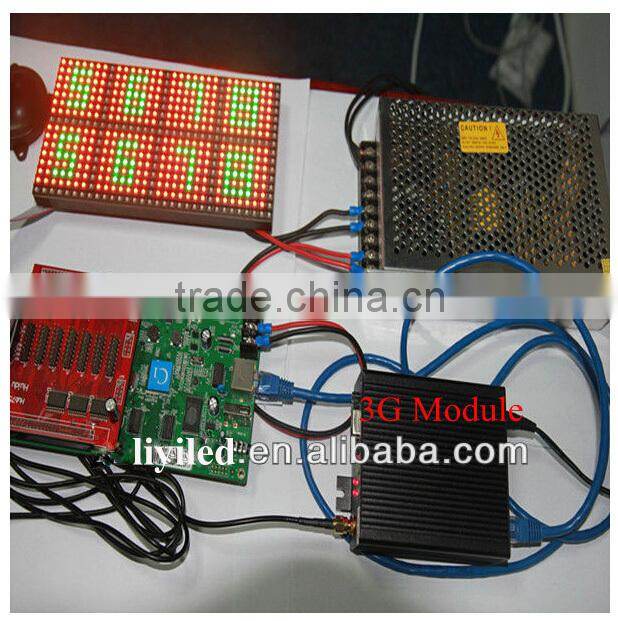

5.Application
6.Packing&Shipping
7.Our Service
1) Shipping way will be confirmed by the customer: usually EXPRESS(DHL, FEDEX,TNT...) AIR shipping and sea shipping.
2) We can support you from product design, drawing, structure, technices and after-sales service to solve your question timely.
3) Accept custom design; professional R&D team design the most suitable product for you.
4) Factory production capacity guarantees your order delivery.
LIYI display is a Chinese company which specializes in the designing, developing and manufacturing of advanced technologic optoelectronics display systems. Our many years of experience in this area allow us to guarantee the quality and safety of our products, the philosophy of our company is the continuous improvement in the development and design of our products. Promote your products with LED displays!!!
Main products: LED pharmacy cross, LED glasses sign, LED sign, LED display, LED taxi/bus sign, LED display accessories and LED lighting.
8.After-sale Service
-2 years warranty,if broken in warranty time,we will supply free technical support or free spare parts to prepare or replace.
-For installation and operation, any question, contact anytime via email&skype&phone call.
-Direclty remote control via team viewer.
9.Certificate
