DS802D synchronous sending card/led sd card controller for led sign/led display

standard wooden box.

DS802D synchronous sending card/led sd card controller for led sign/led display

1. led screen controller
2.two years warranty
3.RGB outdoor/indoor led control card
4.usb/serial port led control card

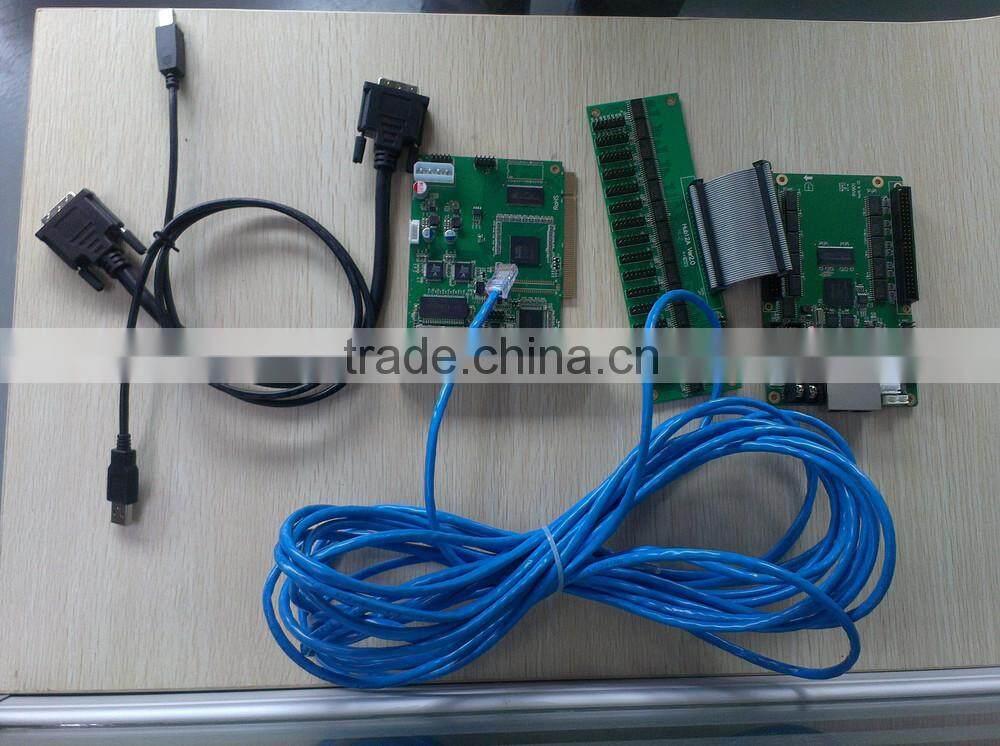

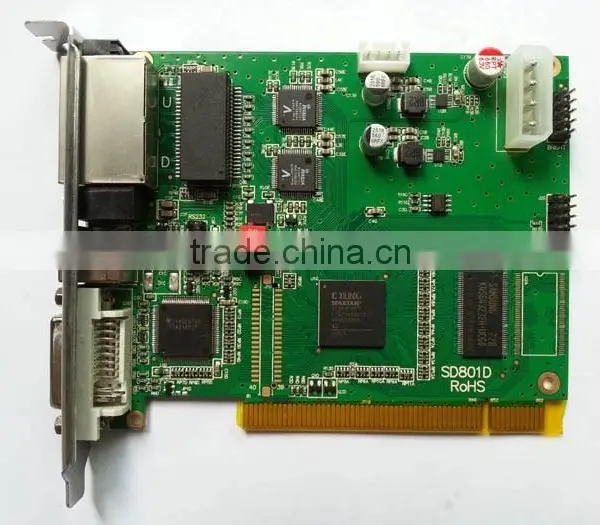

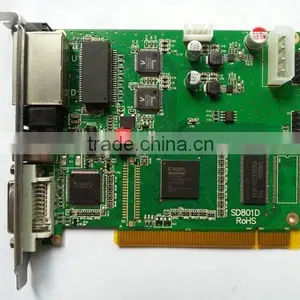

1.Product description for sending card

1. 802 sending card including full-color sending card TS802 and dual-color sending card DS802.

Full-color sending card supports full-color, dual-color and single color led display

Dual-color sending card supports dual-color and single color led display.

2. 802 sending card max supports 2048*640

3. Supporting display mode: 640*480  800*600  1024*768  1280*768  1280*800 1280*1024 1440*900  1440*1080  1600*1200

 1680*1050  1728*1296  1920*1080  1920*1200  2048*1152  2048*1280

4. Audio Transmission Function

802 sending card sends audio data using network cable, and Function board outputs audio signals to the display. Double 24bits

 64KHZ hi-fi digital signal to analog signal or analog signal to digital signal, making display have the perfect video effect.

5. Cascade function

Through the dig switch on 802 sending card, several 802 sending cards can be easily cascaded to support a super large led display

6. Sending card U/D port flexibility for carrying half width or half height

For example, TS801 can max support 1280*1024 with two ports

A single network output port supports 1280*512 or 640*1024

7. Sending card rotation function

In Sender setting, sending card has 0, 90, 180, 270 degree rotation function

8. Sending card zoom in/out function

In Sender setting, the ratio of width and height can be set to realize zoom in or zoom out

9. Supporting 10-bit colors

The seventh supports 8-bit colors: 256*256*256=16777216 kinds of colors.

The eighth supports 10-bit colors: 1024*1024*1024=1073741824 kinds of colors. It needs to work with our video processors using the 30 bits TTL.

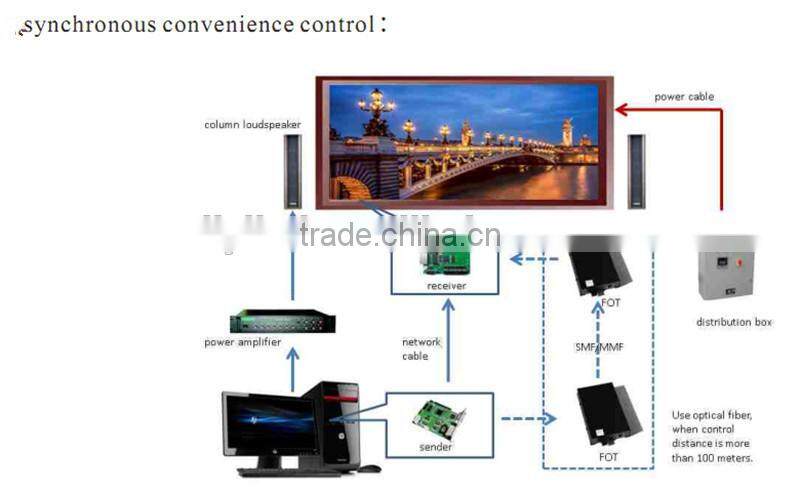

10. Multi-display synchronous and combination functions.

One sending card can control multi-displays, realizing displays combination, synchronous display, and independent play.

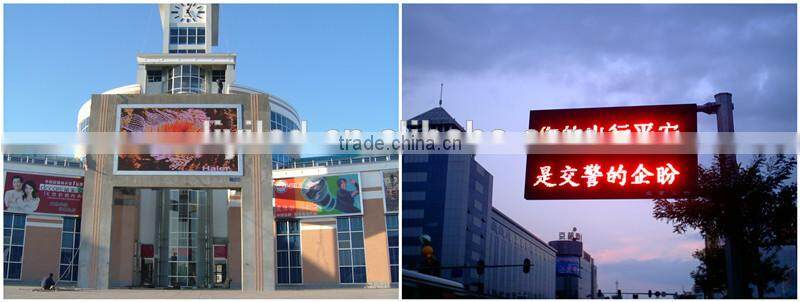

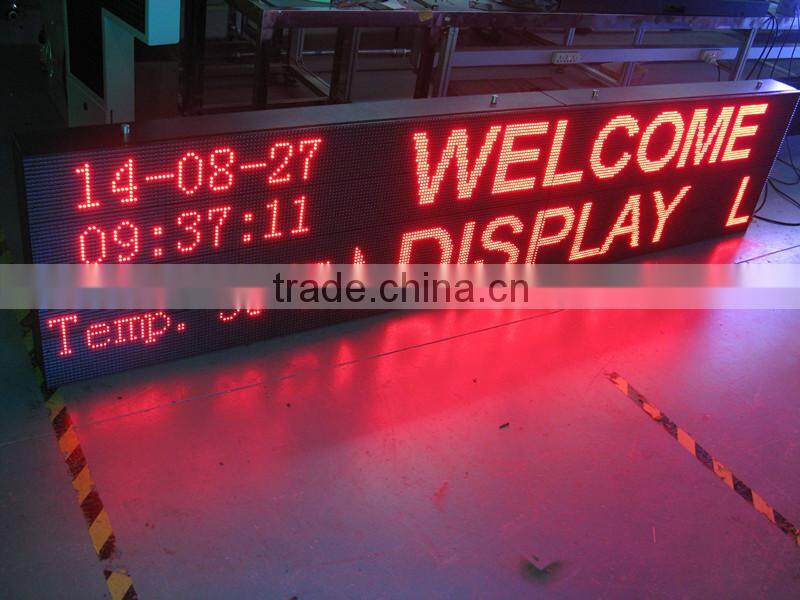

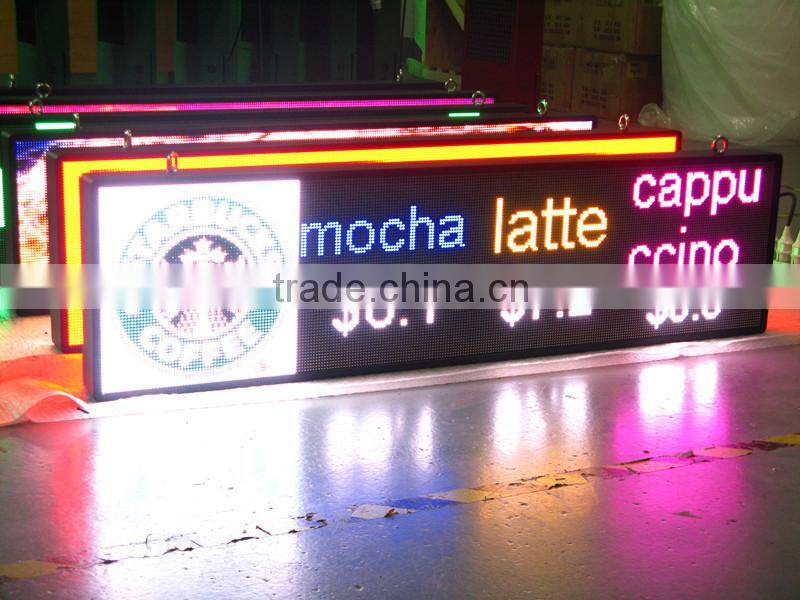

 use for led display,leds ign

3.Packing & shipping for sending card :

• big quantity 1000pcs use plywood packing,if small use for carton box packing
• shipping by express-DHL,UPS,TNT,FEDEX,if more than 45KG weight by air is more suitable

4.Our services for sending card :

• 2 years warranty
• if broken in warranty time,we will supply free technical support or free spare parts if needed.
• any question or doubt you can call me 86 15814487315 or online question

5.Company infomation:

SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.

Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.

6.FAQ for sending card :

1.Any question please feel free to contact Sherry Tang

  Skype:sherry201222

  Wechat: tangxiujiao

  Linkedin & Email : sherry at

2.Products also can be customsized
