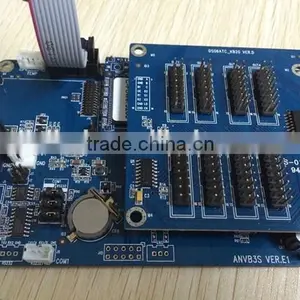

C-power single color/two color/full color best RGB led controller for led sign/led pharmacy cross

Control size

 (full , mono/RG color)

  65,536 pixels, 256-grade gray scales

Self adjustment the size,such as 1024*64 / 768*80 / 512*128 / 256*256

Memory

Totol size: 256MByte(2GMbit)

Program size: 128MByte

Font library space: 128MByte

Program

All programs are transmitted by compression package, and then decompressed on control card.

Supports AVI video program NEW!

Supports animation(swf,gif) , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust
 Transparent text and clock program can be edit to cover photo or video
More than 60 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,

With multi-program mode. Stores up to 512 programs to the Led screen.

With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.

Supports programs played at the appointed period (for example: week, hour, minute )

Separate window mode

Supports the segmentation of up to ten playing windows for each program. Supports playing the content in different formats for each playing window.

Affiliated features

With real-time clock (RTC) management and setting, support digital and analogueclock.

Supports environmental data programs like temperature, etc.

 Supports sensors installed externally (32-grade brightness)

Font library

128MB font library space
The card can be stored different fond library and can be changed free, such as English, Chinese (simplified or traditional), Japanese, Korean and etc.,

Standard software

LedCenter V3.53 or above

LedCenterV3.54 or above (to support video)

Standard communication mode

RS232/RS485 : maximum baud rate: 115200
network version: TCP/IP network interface, encrypted message transmission
USB flash disk version: USB interface
GPRS version: integrate GPRS module(Dual band or Quad band)

InDa remote & keyboard

Program list edit and display control by infrared controller or keyboard

External communication components

Supports various wireless communication modes: GPRS/CDMA, ZigBee, RF...

Others

Provides customized development interface and its manual.

Provides demonstration program and source code for customized development

Besides, provides “Wireless information issue” version.
