TF-M5NUR RS232 RJ45 USB single color tri-color asychronous led display control card
1.TECHNICAL PARAMETERS
Model |
TF-M5NUR (support 16 multi- zones display) |
Stock State |
1000pcs available |
communication port |
Multi-area displays, RS232+U-disk+RJ45 support serial/enthernet port automatic searching, support U disk program updates |
USB driver function |
U disk program update, U disk brightness adjustment, U disk setting making program. Can be stored as a file format and do not affect the original document. SD card or mini-SD card is acceptable. |
Network function |
Support network automatic searching.Default IP:192.168.1.252 (IP can be searched automaticly) |
Function introduction |
Multi-area display, Colorful Borders, multi-function LED display asynchronous control card |
USB function: |
USB program update, USB brightness adjustment, USB panel setup. Settings stored as a file format and do not affect the original document in USB. SD card/mini-SD card is Compatible when using USB. |
Usage |
indoor/outdoor |
Timer |
HH/MM/SS, Analog Clock, timing, countdown, clock. Font size can be adjustable, time zone setting is acceptable. Support multiple time zones display. |
Pixel |
Single colour 1536×32;768×64 Double colour 768×32;384×64 |
Ports |
two HUB08 ports; four HUB12 ports; |
Scanning mode |
support 1/16,1/8,1/4,1/2; static mode for the monochrome, double color module. |
Storage |
2M |
Program number |
Maximum 200 Programs, each program supports 16multi-zones simultaneous display, each image-text supports max 200 messages |
Display |
rain, fountain, scroll and much more |
Border |
support many Color border, Picture border |
Flash format |
support GIF,SWF |
Image format |
support BMP,JPG,GIF,WMF,ICO |
Brightness |
16 levels, support manual adjustment; support 6 fixed times brightness adjustments |
Screen switch |
manual on/off, support 4 fixed times screen switch setting |
Test button |
On-board test button, Can switch over the |
Extension function: |
Temperature sensor, Temperature &humidity sensor, Brightness sensor,RF, Monochrome expand height, Through to 75 full-color interface. |
Electrical parameters |
+5V DC(4.5V~6V),Power consumption<1.5W; Reading U disk power consumption<4W |
Working temperature |
-30℃~70℃ |
Size |
105mm×55mm |

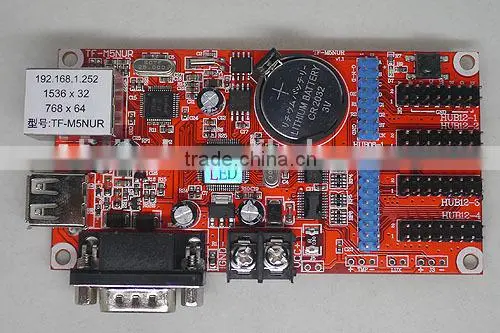

2.CONTROL VIEW
3. FUNCTION EXTENSION-WIRELESS MODE
