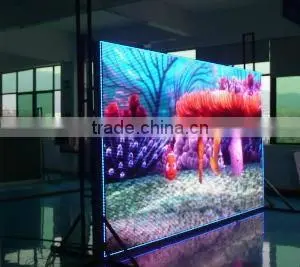

Help CenterLed Video Wall Outdoor Waterproof P16
Related Products
Specifications
high qualitylow price
good after sale service
CE ROHS certification
DIP waterproof LED video wall specification
No. |
Item |
Parameter |
1. |
Part No. |
P16 outdoor LED video wall |
2. |
LED chip |
Taiwan/Silan/Cree/Cree Cotco |
3. |
Physical Pixel Pitch |
16mm |
4. |
Physical Pixel Density |
3906dots/m2 |
5. |
Pixel composition |
1Red, 1Green,1Blue |
6. |
Moduel Size |
256*256mm |
7. |
Moduel resolution |
16*16dots |
8. |
Cabinet thickness |
< 180 mm |
9. |
Bracket of cabinet |
Easy to install onto the LED cabinet and unistall . |
10. |
Brightness |
≥ 6000 nits |
11. |
Colors |
16.7million |
12. |
Viewing angle |
Horizontal ≥120°, Vertical: ≥ 60° |
13. |
Viewing distance |
10m -300m |
14. |
Soft Rubber Mask |
To protect player and LED display itself . |
15. |
Scan frequency |
≥600 Hz There will be one receive card in each cabinet, so that the LED display won't sparked .Also it is very easy to move and connetct |
16. |
Video Frame Rate |
≥150 fps |
17. |
Color temperature |
6500°K to 9500°K adjustable |
18. |
Control method |
Controlled by PC, synchronous display |
19. |
Life span( half brightness) |
≥100,000 hours |
20. |
Weight |
70Kg /sqm |
21. |
IP rate |
front:IP65; rear:IP54 |
22. |
Average power consumption |
400W/sqm |
23. |
Peak power consumption |
800W/sqm |
24. |
Input voltage |
AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
25. |
Operating Environment |
Temperature:-20 to +60 degree Humidity:10% to 95%RH |
26. |
Operating system |
Windows 98/2000/ME/XP |
27. |
Type of video signal |
S-video, composite video ,RGB ,VGA ,DVI |
Products advantage
1. CE & ROHS certification.
2. Big viewing angle, high brightness, high resolution, clear and non-flash screen image.
3. Strict control each step, from material to finished product, from design to produce, to guarantee the quality and reliability.
4. Free training before installation, professional guidance, best aftersale service.
5. Simple and light cabinet, easy to assemble and unassemble.
Led Video Wall Screen is the new products adopting the advanced LED technology in the field of decoration lighting. It is composed of two parts---one is driving system, the other is control System. Its working principle is that small-sized LED as the min lighting display unit, according to the certain rectangular arrangement, form the wall screen, which connects the visual control machine and computer. The wall screen can be adjusted according to the melody and rhythm of music. It also can display various dynamic images. So it widely used in the DISCO bar, background of dance room etc. Led wall screen is the unity of control, environment friendly, energy saving, safety, convenient operation, which is you best choice for indoor decoration lighting .
