IP65 CE & RoHS proved full color P10 outdoor screen led advertising display/video displays from liyi
1.Product description for led screen p10 :
2 years warranty
1.waterproof, lightning protection, radiation proof,
2.high brightness, good stability,
3.rich colors, large area led display
Module size |
Pixel pitch |
Pixel configuration |
Scan method |
Brightness |
IP grade |
320*320mm |
10mm |
1R1G1B |
1/4 scan |
≥8000CD |
IP65 |
-waterproof, lightning protection, radiation proof,
-high brightness, good stability,
-rich colors, large area display, long life
-multi-choice cabinets (waterproof cabinets, simple box, die-cast box)
-asynchronous or synchronous control
2.Features for led screen p10 :
· 10000 pixel dots per square meter resolution
· With super-high brightness LED, high contrast
· High frame frequency, wider view angel
· With module development and distributed scan
technology, high reliability
· Universal AC input / full range
· IP65 protection level, outdoor solution
· PC synchronous or asynchronous control(optional)
· Use common video play software, easy to use
· 2 years warranty
SPECIFICATION FOR LED DISPLAY
Item |
LIYI-OD-P10DIP |
LIYI-OD-P10SMD |
Pixel pitch |
10mm |
10mm |
Pixel density |
10000 dots/m2 |
10000 dots/m2 |
Pixel configuration |
1R1G1B(346DIP) |
1R1G1B(5050SMD) |
Max brightness |
8000 nit |
8000 nit |
View angle(horizontal) |
±55° |
±60° |
Gray scale |
65536 (16 bit) |
65536 (16 bit) |
Colors |
16.7M |
16.7M |
Color temperature |
6500K |
6500K |
Refresh rate |
3000HZ |
3000HZ |
Contrast ratio |
4000:1 |
4000:1 |
Frame rate |
60HZ |
60HZ |
Standard cabinet size |
960×960mm |
960×960mm |
Weight |
60KG/m2 |
45KG/m2 |
Cabinet resolution |
96×96 pixels |
96×96 pixels |
Cabinet material |
Steel (cold rolled iron) or Aluminum (optional) |
Steel (cold rolled iron) or Aluminum (optional) |
Protection level |
IP65 |
IP65 |
Max power consumption |
900W/m2 |
900W/m2 |
AVE. consumption |
400 W/m2 |
400 W/m2 |
Drive Method |
1/4 scan, constant current |
1/4 scan, constant current |
Malfunction dot rate |
0.1≤‰ |
0.1≤‰ |
Control mode |
PC synchronous or asynchronous control(optional) |
PC synchronous or asynchronous control(optional |
Input voltage(AC) |
AC90—240V |
AC90—240V |
Operation voltage |
DC5V |
DC5V |
Operation temperature |
-20~60℃ |
-20~60℃ |
Operation humidity |
10%~90% |
10%~90% |
MTBF |
1000h |
1000h |
Life span |
100000h |
100000h |
Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole. The main application areas: Government Plaza, leisure square, Cultural Square, large entertainment plaza, commercial center, advertising- information publish board, commercial street, railway stations, airports, bus stations, subway, shopping malls, supermarkets, hospitals, hotels , education system, bank, securities markets, auction houses, shopping centers, media centers etc.
3.LED display types:
Type |
Dot Density(dots/m2) |
Cabinet Size |
Brightness(cd/m2)
|
Max Power(w/m2) |
Weight( kg/m2) |
Cabinet Material |
LIYI-OD-P6 |
27777 dots |
768×768mm |
≥6000cd |
1000W |
55 kg |
Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P6.67 |
22500 dots |
640×640mm |
≥6000cd |
900W |
45 kg |
standard steel(Alu)cabinet, die-cast Alu cabinet |
LIYI-OD-P8 |
15625 dots |
640×640mm |
≥6500cd |
900W |
45 kg |
standard steel(Alu)cabinet, die-cast Alu cabinet |
LIYI-OD-P10 |
10000 dots |
960×960mm |
≥6500cd |
800W |
65 kg |
Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P16 |
3906 dots |
1024×768mm |
≥8500cd |
1000W |
60kg |
Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P20 |
2500 dots |
1280×960mm |
≥6500cd |
800W |
55 kg |
Simple steel(Alu)cabinet, standard steel(Alu)cabinet |
LIYI-OD-P16 energy-saving |
3906 dots |
1024×768mm |
≥8500cd |
500W |
60 kg |
Simple steel(Alu)cabinet, standard steel(Alu)cabinet |

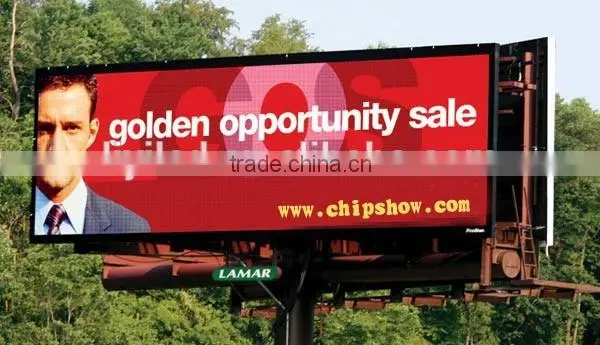

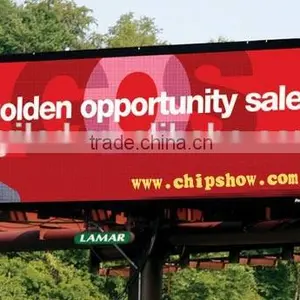

4.Products Shows for led screen p10 :
Function:
-display content: text, pictures, video, and can receive several kinds of video signals like TV, VCR, DVD etc.;
-diverse cabinets: column mounted, hanging mounted, place installation, lifting installation etc.

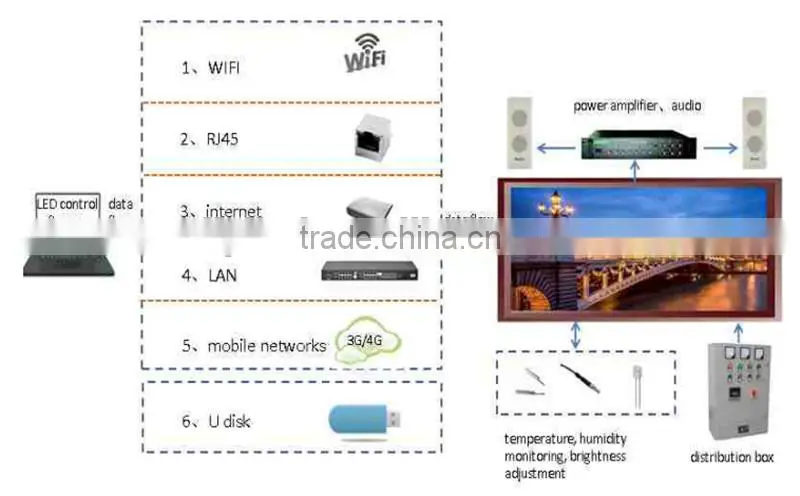

Asynchronous control mode: cable, U disk (USB), Wireless (WIFI), LAN, Internet, mobile networks (3G/4G), 8 control modes (can be freely selected according to the actual scene). As follows:

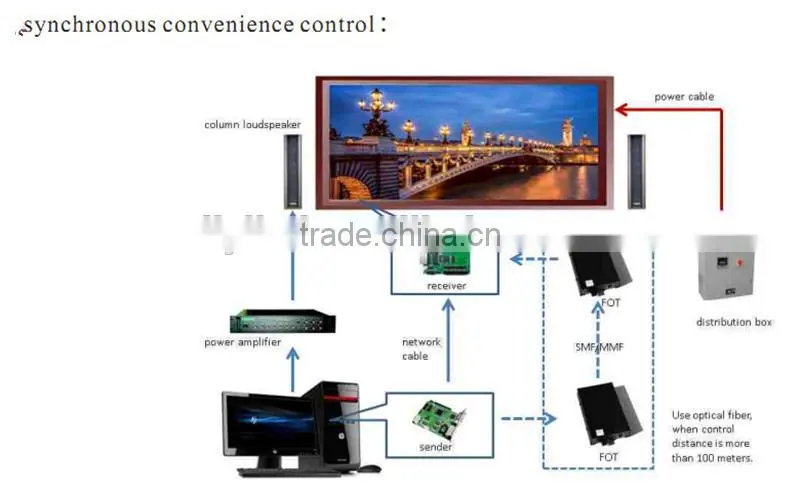

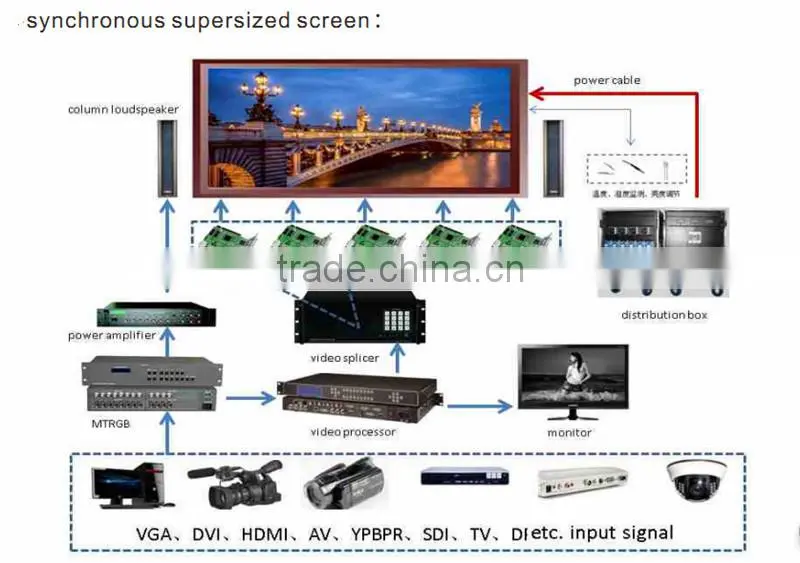

Synchronous control mode: synchronous convenience control and synchronous supersized-screen control (can be freely selected according to the scene). As follows:
5.Certification for led screen p10 :

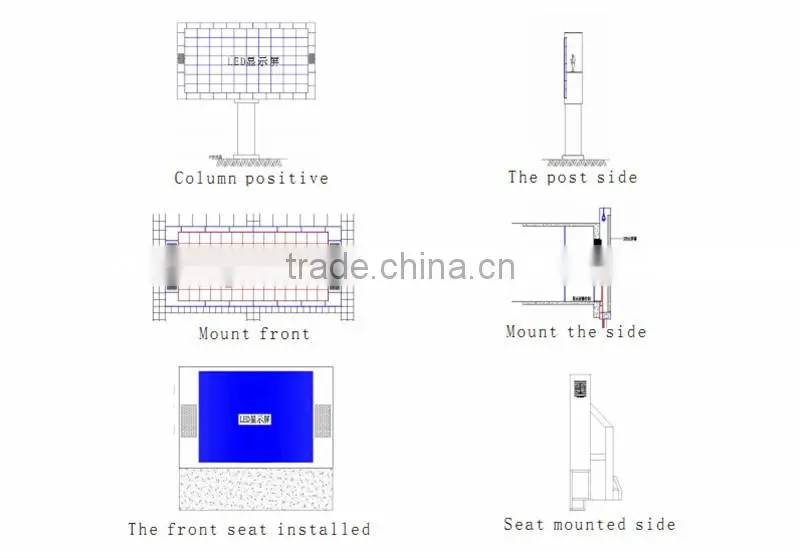

6. led screen p10 installation reference:
7.Packing & Shipping for led screen p10 :
8.Our services for led screen p10 :
1.Two years warranty
2.CE & RoHS certificated
3.30% deposit before products,70% balance to be paid before delivery
9.Company information:
SHENZHEN LIYI OPTOELECTRONIC Co., Ltd is a Chinese high-tech optoelectronics display enterprise which specializes in the research, development, production, sales, construction and service.
Specializing in LED field since 2009, we took innovation in the market and product classification and innovative products already have strong core competitiveness. LIYI Tech established strict quality control over all of LED components, LED display and the whole set of video systems, devoting to provide the most suitable indoor or outdoor display system solutions from design, manufacturing, installation and maintenance.
10.FAQ for led screen p10 :
1.Any question please feel free to contact Sherry Tang
Skype:sherry201222
Wechat: tangxiujiao
Linkedin & Email : sherry at
2.Products also can be customsized
