High Express Way Outdoor LED Digital Sign Board With P20 Full Color

High Express Way Outdoor LED Digital Sign Board With P20 Full Color thumbnail-1
High Express Way Outdoor LED Digital Sign Board With P20 Full Color photo-1
US$ 3,000 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Liyi
Model Number:
liyi-tc-p20
Contact Supplier Request Quote Chat Now
Shenzhen Liyi Optoelectronic Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Liyi
Model Number liyi-tc-p20
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels 20mm

Specifications

1.clear traffic information
2. Customerized design is available;
4. Fast delivery;
4. CE, RoHS approved.
5.stable quality

Product Description

High Express Way LED Sign Board with P20 Full Color
Features:
1. Fix-install at highway for clear traffic information;
2. Good LED chips with a long lifespan and stable quality;
3. Customerized design is available;
4. Fast delivery;
5. CE, RoHS approved.
6. For more details, please feel free to contact me!

High Express Way LED Sign Board with P20 Full Color
S/N Module Specification
1 Pixel Pitch 20mm
2 Pixel Configuration 2R1G1B
3 LED Type DIP546
4 LED Wavelength R(620-630nm) IV(600-800mcd)
G(520-525nm) IV(1800-2000mcd)
B(465-470nm) IV(400-600mcd)
5 Pixel Density 2500 pixel dots/s.q.m
6 Module Size(W X H) 320mm x 160mm
7 Module Resolution( W X H) 16 pixel dots x 8 pixel dots
8 Input Voltage(DC) 5V +/- 5%
9 Cabinet Specification
10 Cabinet Size(W X H) 1280mm x 960mm
11 Cabinet Resolution(W X H) 64 pixel dots x 48 pixel dots
12 Unit Cabinet Weight 65kg(without packaging)
13 Thickness 165MM
14 Whole Screen Specification
15 Screen Brightness Min. 5500nits/s.q.m
16 Driving Mode Constant current static state
17 H/V Visual Angle 110 deg./50 deg.
18 Minimum Viewing Distance 20m
19 Max. Power Consumption 750W/s.q.m
20 Average Power Consumption 600W/s.q.m
21 Gray Level 4096 levels
22 Frame Frequency Min. 60Hz
23 Refresh Frequency Min. 400Hz
24 Blind Spot Rate Max. 1/10000
25 Protective Scale IP65 Front
26 Screen Plainness Max. +/- 1mm
27 Power Supply Mode AC220 +/- 10%  50Hz/AC110 +/- 10%  60Hz
28 Environment Temperature & Humidity Temperature -20 Celsius degree~+60 Celsius degree
Humidity 10%~90% RH
29 Control System
30 Operating Environment Operating system
Chinese/English Windows98/me/2000/NT/XP

Hardware Configuration
Pentium 300MHz or above
ROM 64M
Graphics Card Standard VGA 256mode or above

Related Software
Microsoft Media player compulsory
OFFICE2000 in case of *. doc files
RealPlayer in case of RealPlayer files
31 Software LED Studio
32 Control Mode Synchronization display(work with computer)
33 Control System DVI video card + full color control card + fiber system( optional)
34 Display Content Video DVD, VCD, TV, image, texts.etc.
35 Interface Standard Ethernet
36 Transmission Distance CAT5 cable:<100 m; Single fiber:<10 km
High Express Way LED Sign Board with P20 Full Color
S/N Module Specification
1 Pixel Pitch 20mm
2 Pixel Configuration 2R1G1B
3 LED Type DIP546
4 LED Wavelength R(620-630nm) IV(600-800mcd)
G(520-525nm) IV(1800-2000mcd)
B(465-470nm) IV(400-600mcd)
5 Pixel Density 2500 pixel dots/s.q.m
6 Module Size(W X H) 320mm x 160mm
7 Module Resolution( W X H) 16 pixel dots x 8 pixel dots
8 Input Voltage(DC) 5V +/- 5%
9 Cabinet Specification
10 Cabinet Size(W X H) 1280mm x 960mm
11 Cabinet Resolution(W X H) 64 pixel dots x 48 pixel dots
12 Unit Cabinet Weight 65kg(without packaging)
13 Thickness 165MM
14 Whole Screen Specification
15 Screen Brightness Min. 55 00nits/s.q.m
16 Driving Mode Constant current static state
17 H/V Visual Angle 110 deg./50 deg.
18 Minimum Viewing Distance 20m
19 Max. Power Consumption 750W/s.q.m
20 Average Power Consumption 600W/s.q.m
21 Gray Level 4096 levels
22 Frame Frequency Min. 60Hz
23 Refresh Frequency Min. 400Hz
24 Blind Spot Rate Max. 1/10000
25 Protective Scale IP65 Front
26 Screen Plainness Max. +/- 1mm
27 Power Supply Mode AC220 +/- 10%   50Hz/AC110 +/- 10%   60Hz
28 Environment Temperature & Humidity Temperature -20 Celsius degree~+60 Celsius degree
Humidity 10%~90% RH
29 Control System
30 Operating Environment Operating system
Chinese/English Windows98/me/2000/NT/XP

Hardware Configuration
Pentium 300MHz or above
ROM 64M
Graphics Card Standard VGA 256mode or above

Related Software
Microsoft Media player compulsory
OFFICE2000 in case of *. doc files
RealPlayer in case of RealPlayer files
31 Software LED Studio
32 Control Mode Synchronization display(work with computer)
33 Control System DVI video card + full color control card + fiber system( optional)
34 Display Content Video DVD, VCD, TV, image, texts.etc.
35 Interface Standard Ethernet
36 Transmission Distance CAT5 cable:<100 m; Single fiber:<10 km

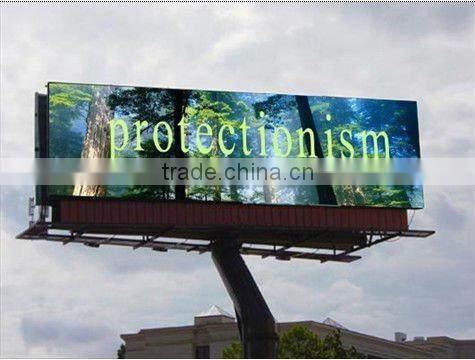

High Express Way outdoor LED digital Sign Board with P20 Full Color
