Help CenterStamping Mould/tool/die for Brushless dc Motor
Related Products
-
ac Motor Stator Rotor Lamination Progressive Stamping Mould Quality ChoiceUS$ 1 - 2MOQ: 1 Set -
DC/AC Motor Stator Rotor Core Lamination Progressive Stamping Mould /tool/toolUS$ 1 - 2MOQ: 1 Set
-
Metal Precision Cnc Milling PartUS$ 1 - 2MOQ: 100 Pieces
-
Precision Brass Cnc Turning PartUS$ 1 - 2MOQ: 100 Pieces
-
Precision Cnc Machining PartsUS$ 1 - 2MOQ: 100 Pieces
Specifications
stamping die for motor stator rotor lamination;ISO9001;2008certificate ;tolerence 0.05mm .life ;more than 150 millionstamping mould/tool/die for brushless dc motor

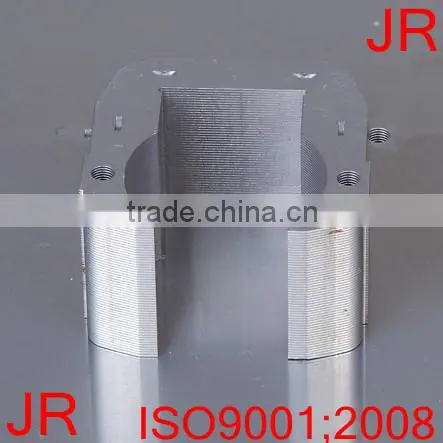

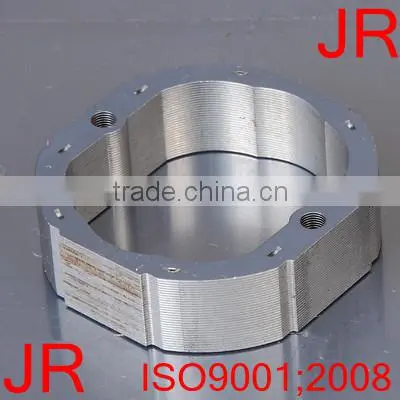

Motor stator rotor lamination stamping die technology
1. lamination interlocking
2. lamination skewing
3. lamination shoulder hole
4. 180 degree rotation for lamination
5. straight-type lamination
6. segment-type lamination

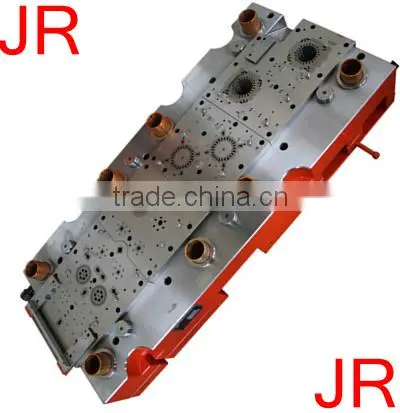

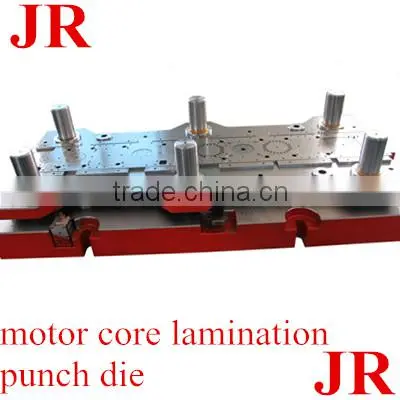

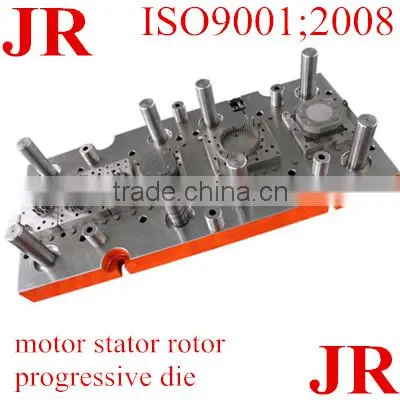

the motor stator rotor core progressive stamping die
product series of progressive die : various lamination and cores for motors which involve air-condition compressor motor , refrigerator motor, plastic sealing motor , automobile motor , generator motor ,stepping and servo motor , universal motor , shaded motor , DC motor ,
the detail of motor core mould
tolerance: 0.05mm
speed: 300 to 400 strokes per minute
life : 100 million
Motor stator rotor core stamping die service
- our motor stamping mould life is from 100 milion to 200 million , ans the punches grinding 1 time every 1 million strokes ,
- we will offer customer maintenance instruction and opereation instruction file to help customer to maintenance and operate the mould
- mould repair: A. online service : if you mould have any problem , please send us the problem by file to us , our engineer department will offer solve way
B. if the mould have big problem or customer need our engineer to oversae service , we also can offer
4. mould install , A. we will offer install instruction file ,
B,. our engineer can go to aboard to help you install the mould
5. we will offer mould spare part , such as punches and inserts to customer ,
6.if customer have no press machine , we also can help customer stamping stator rotor ,
Stator compound notching die
Rotor compound notching die
Stator full compound punching die
Rotor full compound punching die
External rotor compound blanking die
Armature lamination die
Series exciting motor multi-position progressive die
Household motor multi-position progressive die
Shaded pole motor multi-position progressive die
Permanent magnetic motor multi-position progressive die
Resin-packing motor multi-position progressive die
EI plate multi-position progressive die
Lamination segment multi-position progressive die
Strip & long stator rolling multi-position progressive die
Large compound blanking die
Blanking die
Large magnetic pole sheet compound die
Large sector compound die
Large model E sheet compound die
Large generator series compound die
High speed alloy notching die
Shenzhen jiarun precision stamping mould company is professional for the manufacturing of Carbide material and high speed steel parts of high speed precision progressive die. We provide CNC profile grinding, CNC wire cut and surface grinding. We manufacture various mold parts and high precision parts.
Our precision equipment includes grinding machine from Japan, wire-cut from Swiss etc. JR company clients for the purpose, with process control and overall quality management, so we can provide high quality, on time delivery and competitive cost. We commit to keep it confidential of all technical data from customer.
JR motor core stamping die company founded in 1997, has many engineers with several years working experience in motor stator rotor stamping mould , they have skillful technology in mold parts manufacturing. It also has the most advanced profile grinding machine and wire-cut machine. JR introduced ISO9001:2008 International Quality Management System at the beginning to guarantee high quality products. Nearly 30% operating revenue comes from customer of Amercia and Europ.
You are always welcome to this new high-tech company.
MOULD SERVICE PROCESSING | |
Drawings |
1, Received the 2D or 3D drawings and the technical requirement, we will give the quotation with delivery time as per your requirements. |
Sales Contract |
2, Sign the Mould Design and Manufacture Contract between two parties after receiving your production confirmation. |
Design Work |
3, We will start the design work (for this please send 3D drawings if possible, our specialists will be more efficiently work out the design with CAD/CAM/CAE systems) |
Mould |
4, We will give the mould drawings within 15 days (depending on the structure of the product), and we start the manufacture after your approval. |
Samples |
5,Then will be the first test, we will send you the samples by the ordered mould. |
Modification |
6,Mould modification until the customers satisfy it. |
Delivery |
7, We will delivery the mould after the above mentioned working process. |
1.brushless motor stator and rotor
2.brushed motor stator and rotor
3.vibration motor stator and rotor
4.induction motor stator and rotor
5.SR motor stator and rotor
6.PM motor stator and rotor
7.DC motor stator and rotor
8.universal motor stator and rotor
9.BLDC motor stator and rotor
10.AC motor stator and rotor
11.stepper motor stator and rotor
12.induction motor stator and rotor
13.shaded pole motor stator and rotor
14.capacitor motor stator and rotor
15.pump motor stator and rotor
16.Motor bracket
17.Motor cover
Shenzhen jiarun precision stamping mould company
Brief introduction :
Shenhen jiarun precision stamping mould company ,which was establish in 1997 , is located in Shenzhen ,China .the total investment of company over 40 million RMB , with annual production is RMB 30 million , there are 125 employees , 70 of which are professional operetors , and 15 professional engineer , we are on of largest and most professional manufacturer of motor stator rotor lamination progressive stamping mould.
The company focus on motor stator rotor stamping mould . we import the motor stator rotor stamping mould technology from Japanese Mitsui high-tech company and we also import advanced technology from Japan ,Germany . now we have become the NO.1 manufacturer in South of China .we also cooperate with Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec etc , we offer them motor core stamping mould , and they also give us some suggest about the die . mow our mould have export to Europ , America , Japan etc and we also obtained good reputation in the oversea market .
The company processes many precise equipment , such as Sodic EDM machine (12 sets ) , Taiwan grinding machine (15 sets ) , big milliong machine (3sets ) , Taiwan CNC center machine (4 sets ) , CNC milling machine (15 sets ) , press machine from 25T to 400T (20sets ) . Greman 3D-CMM universal microscope machine , Taiwan projector , etc
The company specialzing in progressive lamination stamping die for various motor core used in home appliance , automobile , transfer,and so on , and we also product stamping spare part , such as punches , inserts etc , all the die are designed by senor engneers . and we can ensure their high precision , long life , and good stability .
R&D DEPARTMENT
There are 35 professional engineers and opereatios at JR . who engage in technical research and development , by advanced software , we improve our design and calculation , which facilitates desigan and therefore shorten lead time , all motor stator rotor core progressive stamping dies are designed by senior engineers to guarantee their high precision ,long life , and great stability .
