Help CenterDC/AC Motor Stator Rotor Core Lamination Progressive Stamping Mould /tool/tool
Related Products
Specifications
motor stator rotor progressive stamping mould,ISO9001;2008, 14 years experience , Japn high techDC/AC motor stator rotor core lamination progressive stamping mould /tool/tool
Motor stator rotor lamination stamping die technology
1. lamination interlocking
2. lamination skewing
3. lamination shoulder hole
4. 180 degree rotation for lamination
5. straight-type lamination
6. segment-type lamination

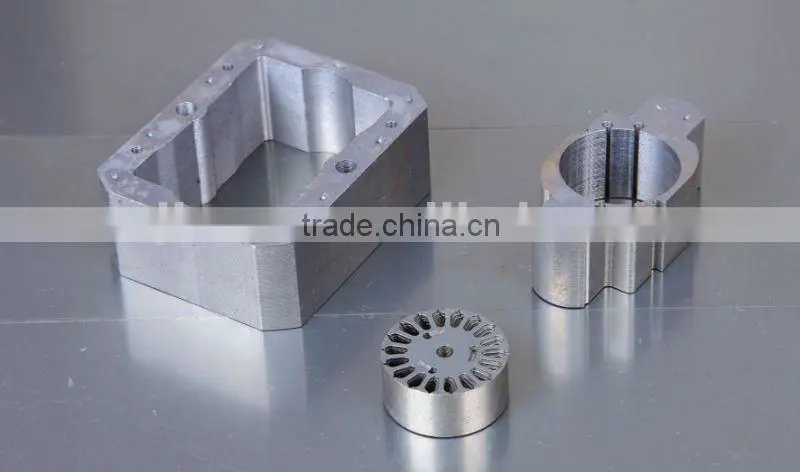

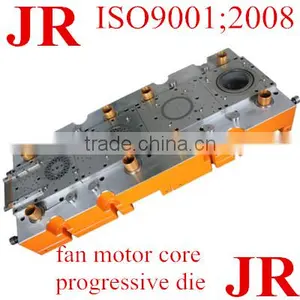

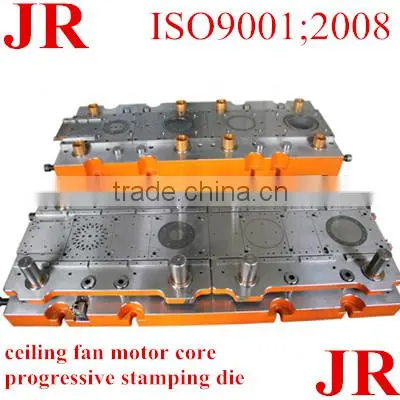

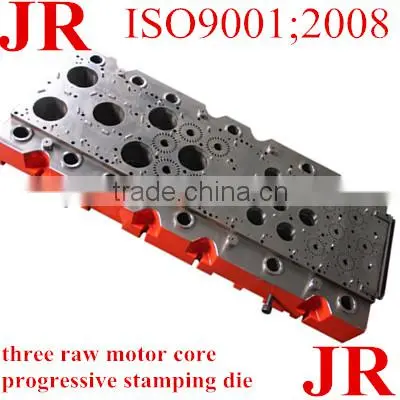

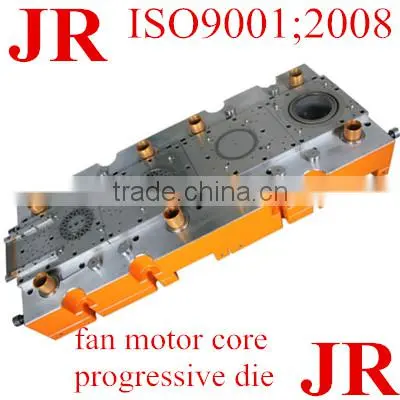

the motor stator rotor core progressive stamping die

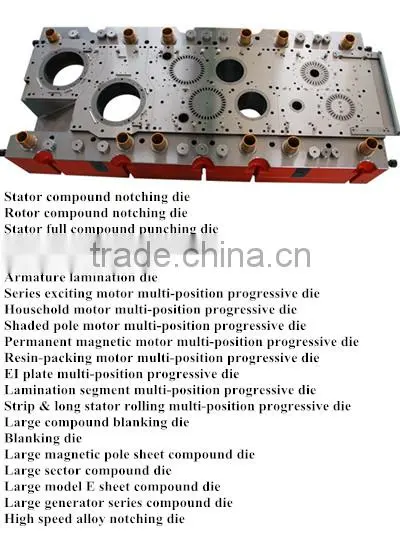

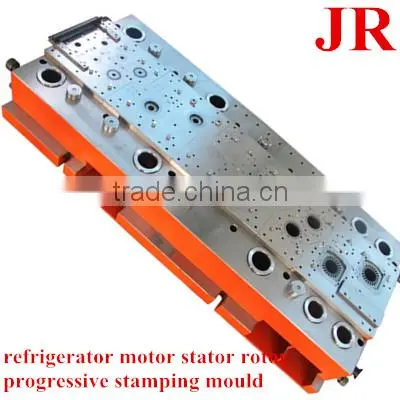

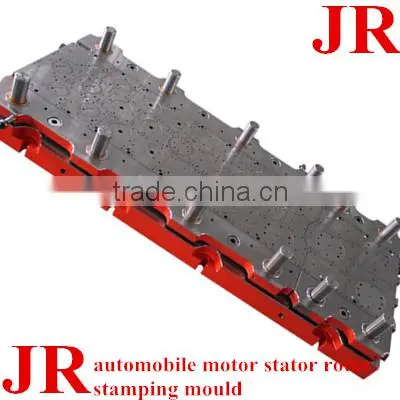

product series of progressive die : various lamination and cores for motors which involve air-condition compressor motor , refrigerator motor, plastic sealing motor , automobile motor , generator motor ,stepping and servo motor , universal motor , shaded motor , DC motor ,
the detail of motor core mould
tolerance: 0.05mm
speed: 300 to 400 strokes per minute
life : 100 million
Shenzhen jiarun precision stamping mould company which was established in 1997, is one of the professional Motor Core progressive die manufacturers in China.There are 120 employees, including 50 skilled engineers and operators.

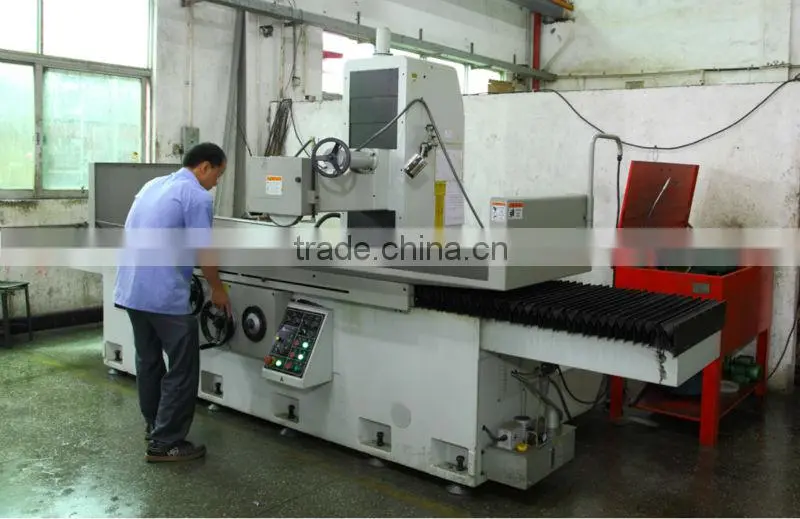

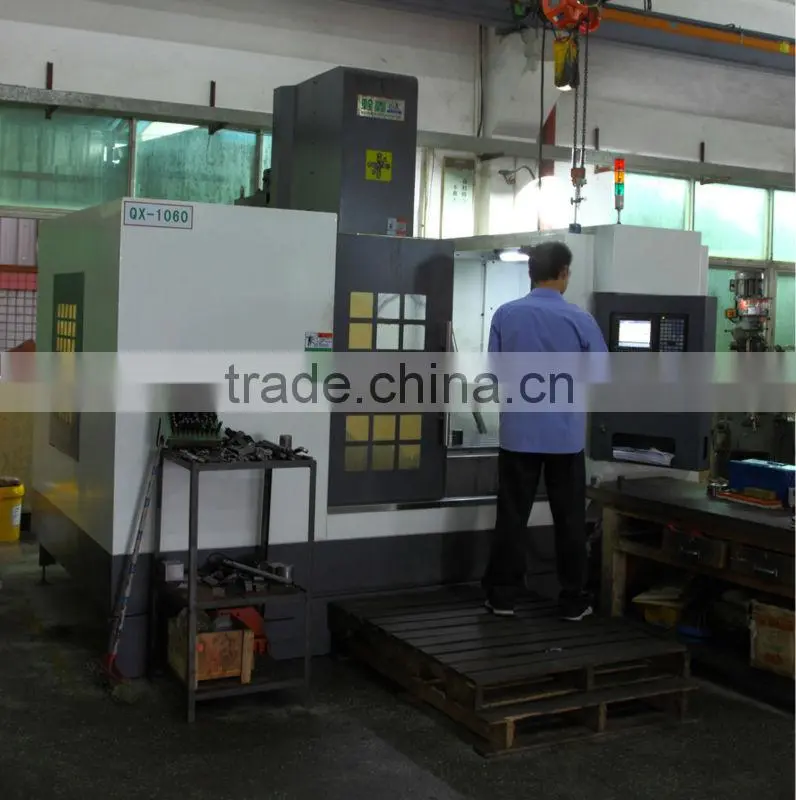

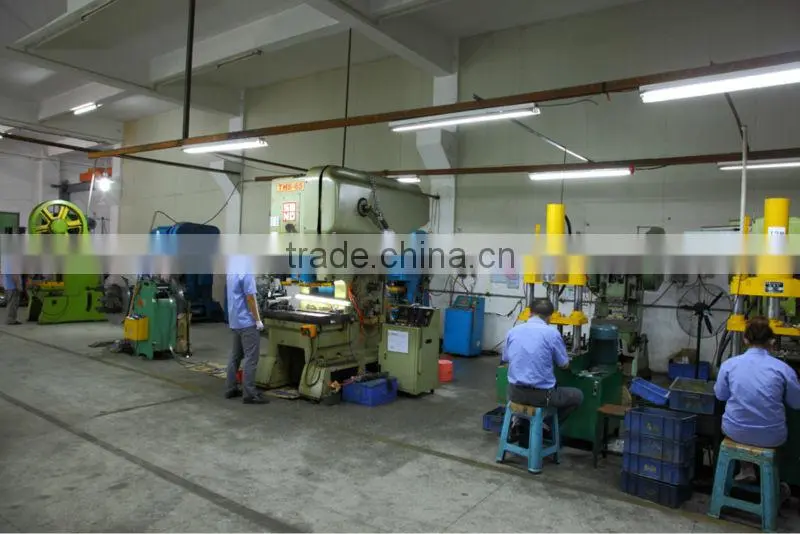

The company possesses hundreds of precision equipments, such as Switzerland Scanner & measuring instrument(strokes2m*2m) , Japan Sodic wire cutting EDM ,precision tool grinding, CNC tool milling machine , 25 sets press machine ,etc
The company specializes in producing Lamination progressive die, compound die, and rotor die casting. Most of them are used in segment and stator & rotor motor laminations. All toolings are designed by senior engineers to ensure their precision, durability and stability, by which we bring in more value and bring you greater profit.
We welcome people in all walks of life, and work for even brighter future.
Motor stator rotor lamination stamping die technology
- lamination interlocking
- lamination skewing
- lamination shoulder hole
- 180 degree rotation for lamination
- straight-type lamination
- segment-type lamination
the motor stator rotor core progressive stamping die
product series of progressive die : various lamination and cores for motors which involve air-condition compressor motor , refrigerator motor, plastic sealing motor , automobile motor , generator motor ,stepping and servo motor , universal motor , shaded motor , DC motor ,
the detail of motor core mould
tolerance: 0.05mm
speed: 300 to 400 strokes per minute
life : 100 million
MOULD SERVICE PROCESSING | |
Drawings |
1, Received the 2D or 3D drawings and the technical requirement, we will give the quotation with delivery time as per your requirements. |
Sales Contract |
2, Sign the Mould Design and Manufacture Contract between two parties after receiving your production confirmation. |
Design Work |
3, We will start the design work (for this please send 3D drawings if possible, our specialists will be more efficiently work out the design with CAD/CAM/CAE systems) |
Mould |
4, We will give the mould drawings within 15 days (depending on the structure of the product), and we start the manufacture after your approval. |
Samples |
5,Then will be the first test, we will send you the samples by the ordered mould. |
Modification |
6,Mould modification until the customers satisfy it. |
Delivery |
7, We will delivery the mould after the above mentioned working process. |
