Help CenterCold Rolled Silicon Steel Motor Stator Rotor Lamination , Stator Rotor, Motor Lamination Stamping Die
Related Products
-
Stepper Motor Stator and Rotor Lamination Interlocked Progressive Stamping Die /tool/mouldUS$ 1 - 2MOQ: 1 Set -
Electric Water Pump Motor Stator Rotor Progressive Stamping Mould/tool/dieUS$ 1 - 2MOQ: 1 Set
-
Stamping Mould/tool/die for Brushless dc MotorUS$ 1 - 2MOQ: 1 Set
-
ac Motor Stator Rotor Lamination Progressive Stamping Mould Quality ChoiceUS$ 1 - 2MOQ: 1 Set
-
DC/AC Motor Stator Rotor Core Lamination Progressive Stamping Mould /tool/toolUS$ 1 - 2MOQ: 1 Set
Specifications

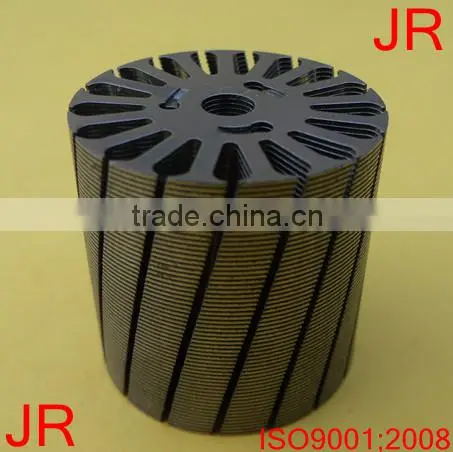

silicon steel lamination core ,tolerence 0.05mm , conectricity :0.05mm
, ISO9001;2008 ,
Progressive stamping die for motor stator rotor lamination technology
QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,
STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,
SPEED: stamping speed reach 350-400 strokes per minute .
Life : regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,
Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,
Technology: 1.auto interlocking
2. skewing
3.shoulder hole for stator rotor lamination
4.rotation for lamination within 180 degree .
Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .
Shenzhen jiarun precision stamping mould company
Brief introduction :
Shenhen jiarun precision stamping mould company ,which was establish in 1997 , is located in Shenzhen ,China .the total investment of company over 40 million RMB , with annual production is RMB 30 million , there are 125 employees , 70 of which are professional operetors , and 15 professional engineer , we are on of largest and most professional manufacturer of motor stator rotor lamination progressive stamping mould.
The company focus on motor stator rotor stamping mould . we import the motor stator rotor stamping mould technology from Japanese Mitsui high-tech company and we also import advanced technology from Japan ,Germany . now we have become the NO.1 manufacturer in South of China .we also cooperate with Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec etc , we offer them motor core stamping mould , and they also give us some suggest about the die . mow our mould have export to Europ , America , Japan etc and we also obtained good reputation in the oversea market .
The company processes many precise equipment , such as Sodic EDM machine (12 sets ) , Taiwan grinding machine (15 sets ) , big milliong machine (3sets ) , Taiwan CNC center machine (4 sets ) , CNC milling machine (15 sets ) , press machine from 25T to 400T (20sets ) . Greman 3D-CMM universal microscope machine , Taiwan projector , etc
The company specialzing in progressive lamination stamping die for various motor core used in home appliance , automobile , transfer,and so on , and we also product stamping spare part , such as punches , inserts etc , all the die are designed by senor engneers . and we can ensure their high precision , long life , and good stability .
R&D DEPARTMENT
There are 35 professional engineers and opereatios at JR . who engage in technical research and development , by advanced software , we improve our design and calculation , which facilitates desigan and therefore shorten lead time , all motor stator rotor core progressive stamping dies are designed by senior engineers to guarantee their high precision ,long life , and great stability .
- air condition compressor motor core automatic interlocked two-raw progressive die
- DC motor core winding automatic interlocked two-raw progressive die
- AC motor core interlocking progressive die
- industrial motor lamination interlocked progressive die
- electric tool motor core automatic interlocked three-raw progressive die
- fridge compressor motor lamination two-raw progressive die with servo motor for rotor rotation
- power generator core single raw loose lamination progressive die
- Double rows progressive die for sealing motor lamination
- Three rows progressive die for C48 air conditioner motor core
- Double rows two-poles motor lamination progressive die
- J series of progressive die for refrigerator motor
- Double rows big rotation progressive die for refrigerator motor lamination
Metal stamping involves cutting and forming sheet metal with the aid of a punch press. Punch presses vary extensively in bed size, speed and tonnage. Regardless of the size of the press, tooling must be made to produce a part to a specific configuration. Although there are other specialty stamping processes used in industry such as hydro forming, multi-slide stamping, and transfer press stamping, our focus here is on the two most commonly used in industry, progressive die stamping as well as short run or small lot stamping.
Progressive Die stamping – As the name implies a progressive die performs operations on a part as the metal progresses or moves through stations in a die. Each station in a progressive die performs a unique operation on the strip of material. Each stroke of the press results in a part regardless of how many operations or stations are in the die. Material is typically feed through a progressive die in coil form and once the press is started the operation does not require much operator interface.
Short run stamping - Short run stamping differs from progressive die stamping in the method in which the tooling is constructed. Tools are engineered to fit into standard holders eliminating the need for a stand alone die set for each part. Short run stamping companies maintain an inventory of most standard punch sizes and form tools. In many cases the only unique tooling produced is the banking die. Material is sheared to width and then hand fed through the blanking tool cutting the part out. Subsequent operations such as forming are performed at another press with the parts being placed into and removed from the tools by hand. Because of the simplicity of the tooling scenario initial cost and lead time is generally a fraction of building a progressive die.
Metal stamping design guidelines - The guidelines listed below will work for either short run or progressive die stampings. In most instances progressive die stampings can be held to tighter tolerances than listed below with the exception of material thickness tolerance.
Material Thickness Tolerance – The chart below lists standard tolerance for cold rolled coil and sheet steel. Tighter tolerance can be achieved through secondary rolling although this adds to cost, lead time and results in larger minimum material buys.
