hard alloy progressive stamping tool/die/mould for automotive fan motor stator and rotor

Specifications

automotive fan motor stator and rotor progressive tool
ISO9001;2008
14 years experience
Japan hightech

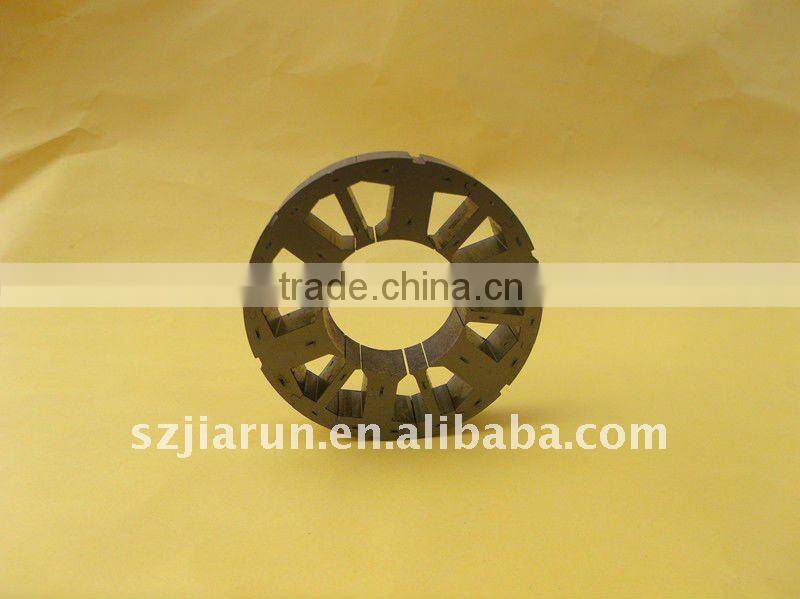

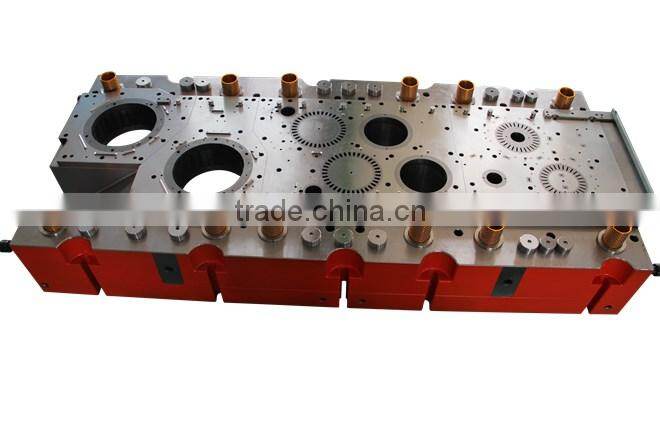

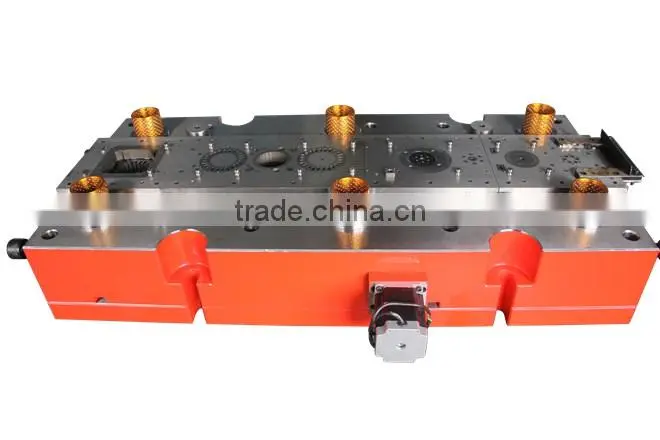

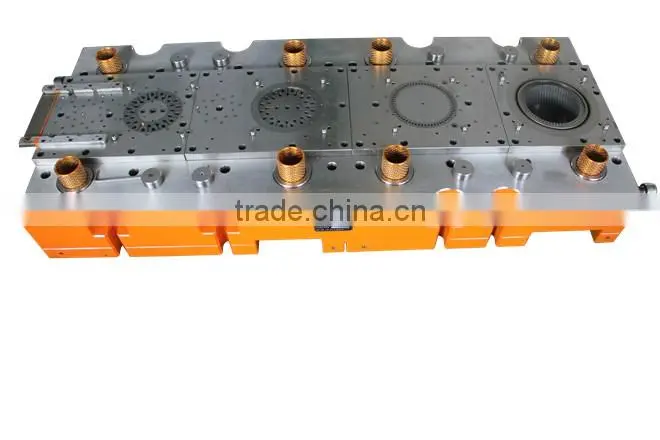

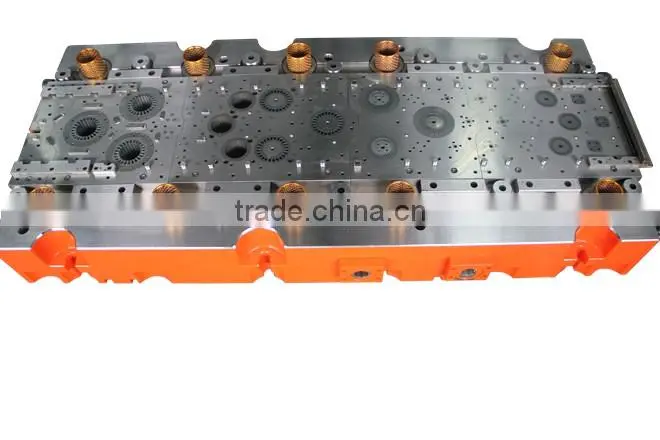

auto stamping tool for automotive fan motor stator and rotor

Shenzhen jiarun precision stampingf mould was founded in 1997, which is specializing in the producing of motor core, stator and rotor , motor core , motor bracket , motor deep drawing cover , stamping die for motor etc . It is a leading Enterprise of Motor stator and rotor . JR ranks the first in the talents team, capability and facilities for R & D and production of motor die. The company covers a land area of 3600 square meter,The investment in the fixed assets more than 10 million.

Through hard working and uninterrupted technical innovation for more than 14 years, Shenzhen jiarun precision stamping mould becomes the most advanced and professional and the largest R & D center and manufacture base of motor core lamination precision punching die in China. JR has received the ISO system qualification. Its annual capacity is 600 sets of stator and rotator core compound die. It is an ideal substitute for the sophisticated die made by developed countries such as Japan and American and European countries. Hongda occupies the first position in domestic sales of Chinese motor core die market for a long time and around 1,00 customers in the world are using the motor stator and rotor from JR



product name	progressive stamping tool
product material	Carbon steel, hot-dipped galvanized steel, SECC, stainless steel, aluminum, brass, copper, plastic, rubber, FPC(flexible printed circuit) etc.
process method	stamping ,punching ,forming ,bending ,deep drawing
mould steel	AISI D2/JIS SKD11/ Din1.2379, ASP-23, SKH-9,etc
mould type	progressive stamping die ,transfer die , high speed die ,deep drawing die,punching die,forming die, bending die ,etc
equipment	20-220T press maqchine , CNC machine , wire EDM machine ,laser machine ,conputer CNC machine , grinding machine etc
stamping capacity	0.1mm to 5mm , longth 3000mm ,width 2000mm 20t-220t
surface finish	electroplating, Powder coating, Conversion, Passivation , Anodize, Alodine, Electrophoresis, etc.
product	auto stamping part ,machinerty stamping part ,office appliance stamping part ,computer stamping part ,terminal,connector ,contact ,flat spring ,flat washer, HDMI stamping part , IC chip Lead Frame ,micro SD stamping part, PC terminal,I/O ,USB stamping part,motor stator ,motor rotor ,motor bracket, motor cover ,motor case , electornic stamping part , usb connector , wire EDM part , stamping mould deep drawing die ,etc
output	500 sets die , 25sets press machine ,5 sets CNC machine ,20 sets grinder machine ,12 sets SODIC wire EDM ,5sets laser machine ,
market	Europe ,America,Japan,India ,southeast Asia ,Africa,
main customer	Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec.
after-sales service	guarantee replace , engineers are access for oversea,
brand	JR ,OEM ,and other
certificate	ISO9001;2008



shenzhen jiarun precision stamping mould company
brand	JR
certificate	ISO9001;2008
high-tech	14 years experience ; Japan high tech ;
manufacture type	OEM ,JR and other
main product	1.stamping part ( auto stamping part ,machinery stamping part ,electric appliance stamping part ,office equipment stamping part );                                                                                                 2. component ( HDMI stamping part , IC chip Lead Frame ,micro SD stamping part, PC terminal,I/O ,USB stamping part,etc)                                                                     priecision 3.precision stamping part ( terminal,contact ,connector ,flat spring , flat washer etc)                                                                     deep drawing part ( stainless steel deep drawing part , aluminum stamping part , copper dep drawing part ,etc) 4.motor part( stator , rotor , motor core . motor case , motor body . motor bracket ,wound motor stator and rotor ,coating motor stator and rotor , etc)                                                     5.stamping die( metal stamping die ,deep drawing die ,transher die , progressive die ,punching die ,forming die , bending die ,deep drawing die , high speed stamping die ,single die ,etc
mould	stamping die,deep drawing die ,punching die , bending die , forming die , high speed stamping die , progressive stamping die , transfer die , single die, etc .
equipment	25 sets 20-220T press machine , 5 sets CNC machine , 10 sets Japan SODIC wire EDM machine , 15 sets grinder machine , etc
factory	our company was established in 1997 , the factory base covers an area of 3600 square meters and is worth of about 20million total invistment ,we have advanced equipment which are imported from Japan ,Taiwan ,Switzerland .
our services	1. we can offer the winding and coating , motor cover , motor bracket of motor .                                                                                     2.we can offer the install of every part                                             3.we offer the surface finish
other service	1.In-time response on letters, telephone calls or fax 2.In-time supply the quotation and mould designs 3.In-time communication on the technical points 4.In-time sending pictures for the mould machining progress and mould finishing schedule 5.In-time mould delivery







METAL STAMPING PROCESS:

From concept to completed metal part

From a small metal part or a deep drawn metal part to a complex welded assembly, Shenzhen jiarun precision stamping Tool & Die has the expertise and the metal stamping facilities to produce your metal component project, with a diversified capability for size, material or complexity.

The JR stamping Tool & Die Way:

We use lean manufacturing principles to govern our entire metal stamping system, helping to minimize waste, manage flow and deliver quality products on time and on budget. Our web-based software system creates a paperless process that enables us to set up, schedule inspect and control other data throughout the component-manufacturing project. We also use many of the standard design software programs, ensuring that we can translate and deliver your concept and vision into a completed metal part.

Customer Project Review:

The metal stamping process starts with our design review meeting and continues with:

Discussion of customer and internal quality requirements

Development of a process flow for governing the project

Failure modes and effects analysis (FMEA)

Simulation and development of part prototype if necessary to ensure a robust design and manufacturability

Tool & Die Services:

From there, we start the process of complete tooling for the metal part and review of the tooling through short- and long-term capability studies. If necessary, we will re-tool or make engineering changes to your current design.

Metal Stamping Production:

Once your metal part is ready for production, we move on to one of our 30 metal presses, ranging from 20 ton to 220 tons. These presses are equipped with variable speed and accessory items such as feeds, reels, nitrogen cushion systems and electronic detection systems and link motion technology. We can produce metal parts from blank parts to formed and drawn metal parts, small parts, large parts, thin metal parts (0.1mm) or thick gauge metal parts (5 mm). We also have resistance welding using conventional and dedicated welding equipment per part requirements. In addition, our secondary equipment can drill, tap and sub-assemble.

Finishing Touches:

For customers who require more detail in finished metal parts or assemblies, we also have a diversified set of welding, part assembly and finishing capabilities for completing your metal component project.
