Help CenterAuto Interlock Progressive Stamping Tool/mould/die for Segmented Stator Laminations
Related Products
-
Progressive Stamping Tool/mould/die for Motor Silicon Steel Lamination Core , Motor Stator Rotor Stamping ToolUS$ 1 - 2MOQ: 1 Set -
Motor Core Stamping Die /progressive Stamping Tool for Motor LaminationUS$ 1 - 2MOQ: 1 Piece
-
Stamping Hardware for FurnitureUS$ 1 - 2MOQ: 1 Set
-
Sheet Metal Deep Drawing Mould/tool/die , Die for Deep RdrawingUS$ 1 - 2MOQ: 1 Set
-
Servo Motor Stator Rotor Core Progressive Stamping Tool/mould/die , Silicon Steel LaminationUS$ 1 - 2MOQ: 1 Set
Specifications
Segmented Stator Laminations dieISO9001;2008
14 years experience
Japan high-tech
profession

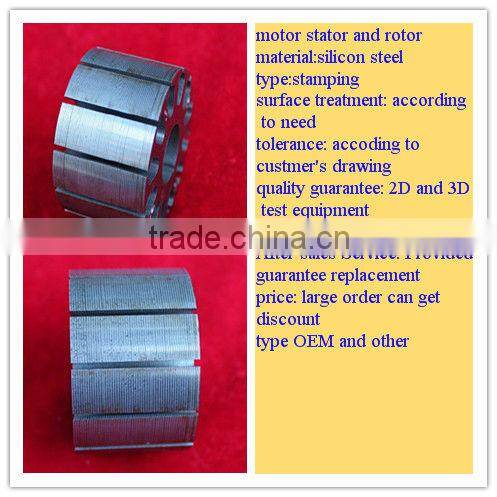

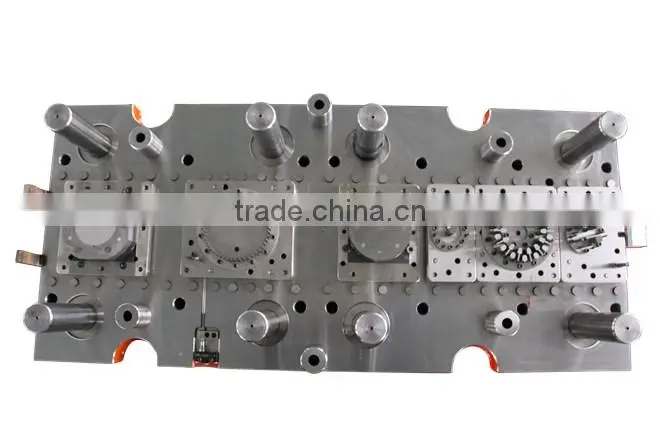

Segmented Stator Laminations progressive stamping tool
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | JR |
| Model Number | jr2130 |
| Size | according to need |
| Type | metal stamping |
| prduct | servo motor stator and rotor |
| material | metal |
| surface treatment | according to need |
| tolerance | accoding to custmer's drawing |
| quality guarantee | 2D and 3D test equipment |
| certificate | ISO9001:2008. |
| After-sales Service Provided | guarantee replacement |
| price | large order can get discount |
| type | OEM and other |
shenzhen jiarun precision stamping mould was establish in 1997, we are specilizing in stator and rotor , we have advanced equipment such as 20-220T stamping machine , CNC machine , we have 12 professional stator and rotor engineers whom are specilizing in stator and rotor for more than 14 years , we also have 3d test machine to guarantee the quality . our customers include:sanyo ,comix, panasonic , midea , etc we have obtained their highly speeking . we get ISO9001;2008 in 2008 ,

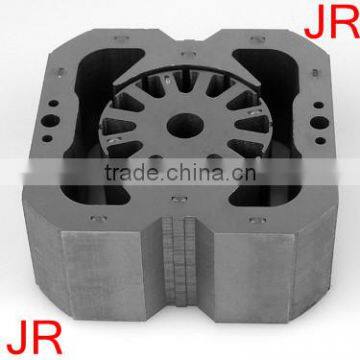

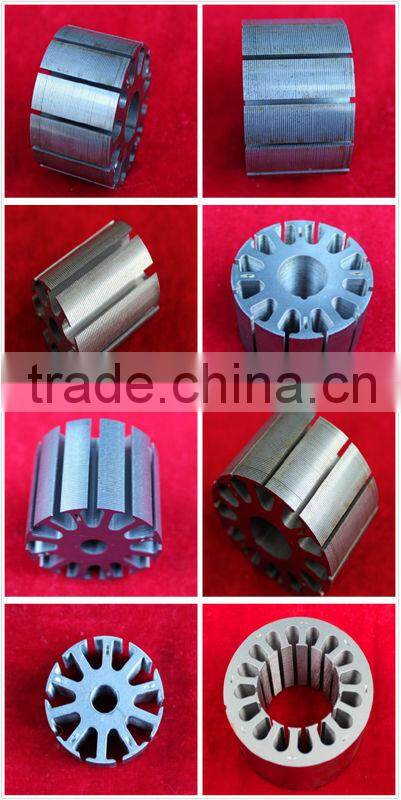

JR stator and rotor
1.ac/dc motor stator and rotor
2.servo motor stator and rotor
3.stepper motor stator and rotor
5.pump motor stator and rotor

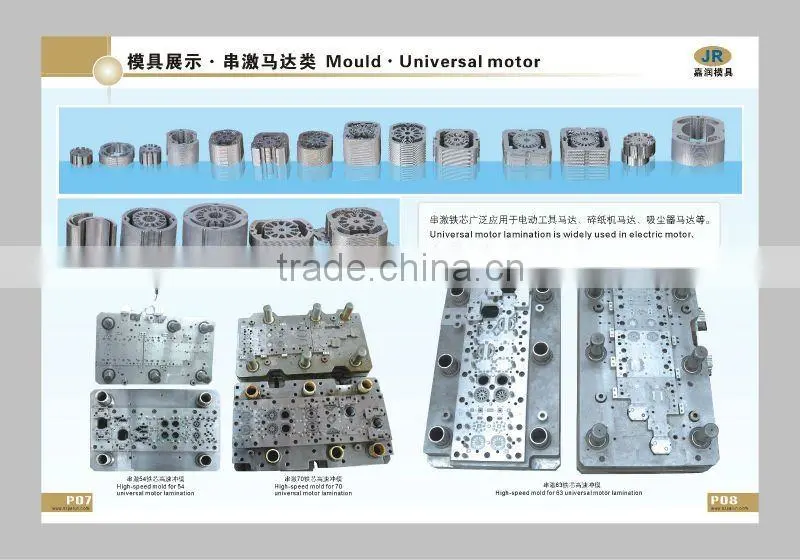

6.universial motor stator and rotor

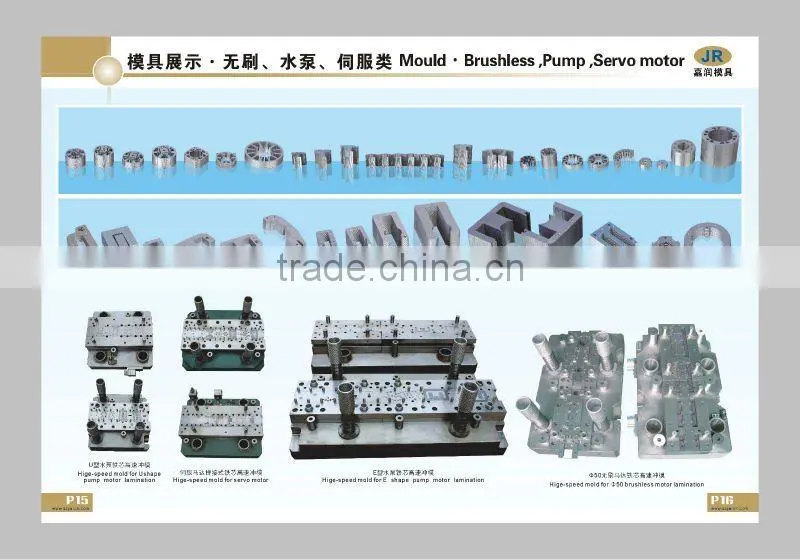

7.brushless motor stator and rotor

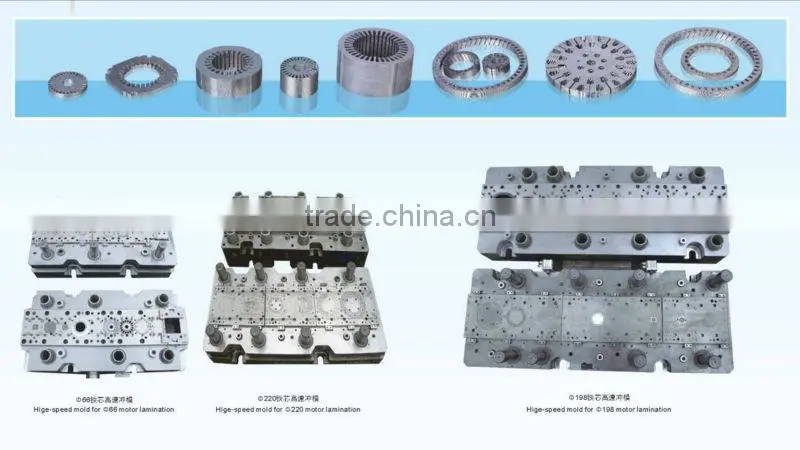

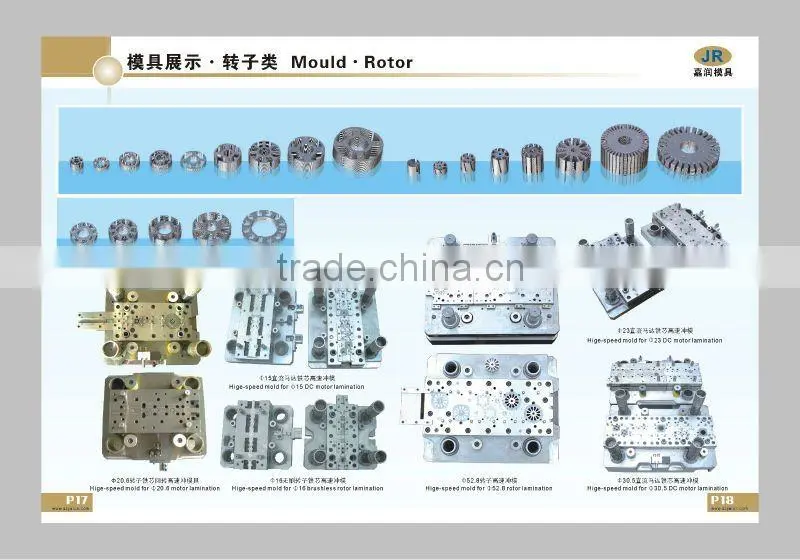

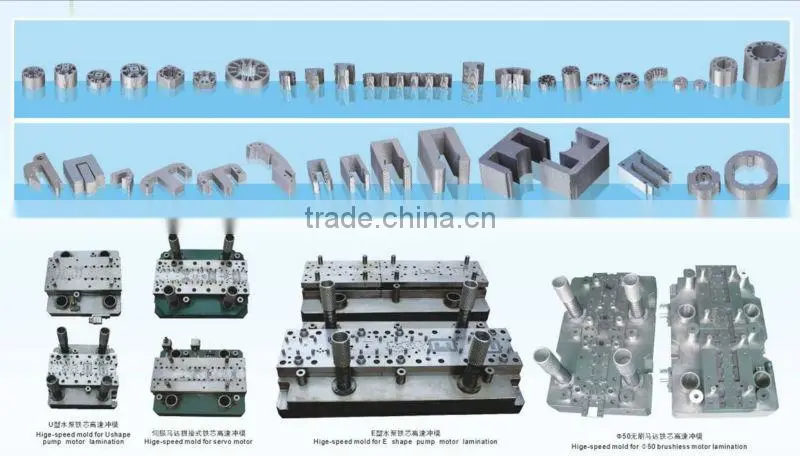

Progressive stamping die for motor stator rotor lamination technology
QUALITY:tolerance of spare part is within 0.002mm , tolerance of feeding length is within 0.003-0.005mm , and groundness is within R0.05-0.5,
STATOR ROTOR Technology : stator rotor tolerance is within 0.05mm , concentricity is within 0.05mm ,
SPEED: stamping speed reach 350-400 strokes per minute .
Life : regarding life reaches 1 million to 5 million strokes , while total life from 100million to 200 million ,
Product size : we make stamping die for motor stator rotor from od 3mm to 1000mm ,
Technology: 1.auto interlocking
2. skewing
3.shoulder hole for stator rotor lamination
4.rotation for lamination within 180 degree .
Mould material: tungsten steel ,SKD11 , SAP-60, ASP-9 etc .
product name |
motor lamination progressive stamping tool |
product material |
Carbon steel, hot-dipped galvanized steel, SECC, stainless steel, aluminum, |
process method |
stamping ,punching ,forming ,bending ,deep drawing |
mould steel |
AISI D2/JIS SKD11/ Din1.2379, ASP-23, SKH-9,etc |
mould type |
progressive stamping die ,transfer die , high speed die ,deep drawing die,punching die,forming die, bending die ,etc |
equipment |
20-220T press maqchine , CNC machine , wire EDM machine ,laser machine ,conputer CNC machine , grinding machine etc |
stamping capacity |
0.1mm to 5mm , longth 3000mm ,width 2000mm 20t-220t |
surface finish |
electroplating, Powder coating, Conversion, Passivation , Anodize, Alodine, |
product |
auto stamping part ,machinerty stamping part ,office appliance stamping part ,computer stamping part ,terminal,connector ,contact ,flat spring ,flat washer, HDMI stamping part , IC chip Lead Frame ,micro SD stamping part, PC terminal,I/O ,USB stamping part,motor stator ,motor rotor ,motor bracket, motor cover ,motor case , electornic stamping part , usb connector , wire EDM part , stamping mould deep drawing die ,etc |
output |
500 sets die , 25sets press machine ,5 sets CNC machine ,20 sets grinder machine ,12 sets SODIC wire EDM ,5sets laser machine , |
market |
Europe ,America,Japan,India ,southeast Asia ,Africa, |
main customer |
Midea, Casic, Canon, Tong-chang electric machinery, Chigo Air conditioning, Mitsubishi Electric, Mitsui High-Tec. |
after-sales service |
guarantee replace , engineers are access for oversea, |
brand |
JR ,OEM ,and other |
certificate |
ISO9001;2008 |
Motor stator rotor core stamping die service
- our motor stamping mould life is from 100 milion to 200 million , ans the punches grinding 1 time every 1 million strokes ,
- we will offer customer maintenance instruction and opereation instruction file to help customer to maintenance and operate the mould
- mould repair: A. online service : if you mould have any problem , please send us the problem by file to us , our engineer department will offer solve way
B. if the mould have big problem or customer need our engineer to oversae service , we also can offer
4. mould install , A. we will offer install instruction file ,
B,. our engineer can go to aboard to help you install the mould
5. we will offer mould spare part , such as punches and inserts to customer ,
6.if customer have no press machine , we also can help customer stamping stator rotor ,

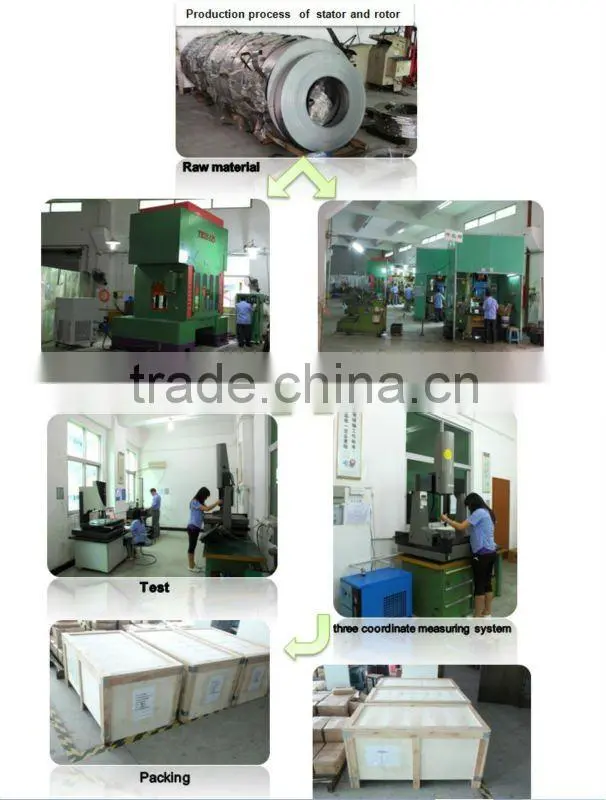

company information
PACKING
Shenzhen jiarun precsion stamping mould company , which was established in 1997, is one of the professional Motor Core progressive die manufacturers in China.There are 100 employees, including 15 skilled engineers and operators.
The company possesses hundreds of precision equipments, such as Switzerland test machine and Japan sodic grinders, Switzerland +G Wire Cutting EDM machin, precision machining center, 60T to 220T high speed presses, 3D-Coordinates measuring machines, Japan Misutuyo Height testor.
The company specializes in producing Lamination progressive die, compound die, and rotor die casting. Most of them are used in segment and stator & rotor motor laminations. All toolings are designed by senior engineers to ensure their precision, durability and stability, by which we bring in more value and bring you greater profit.
We welcome people in all walks of life, and work for even brighter future.
