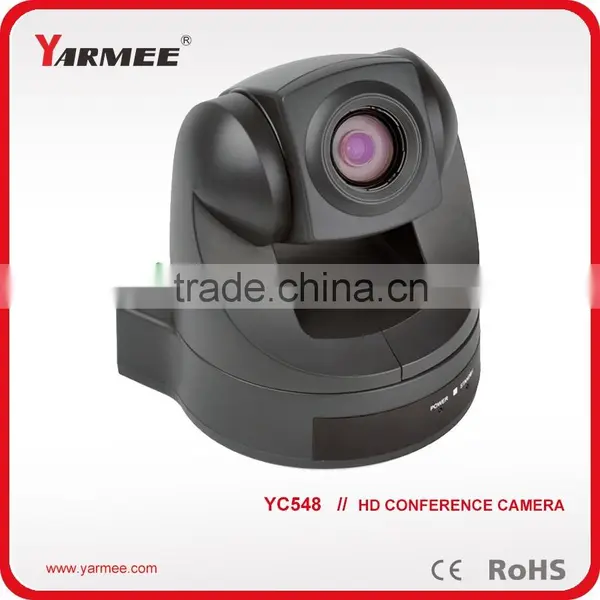

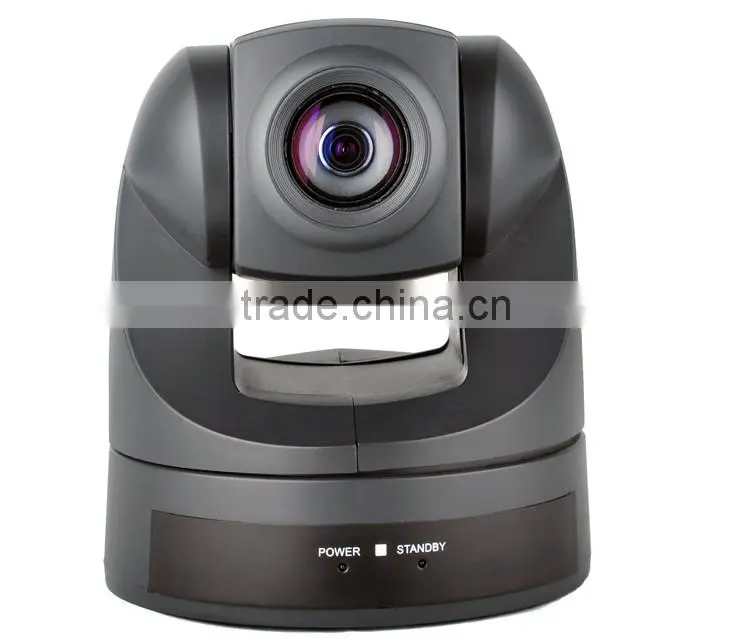

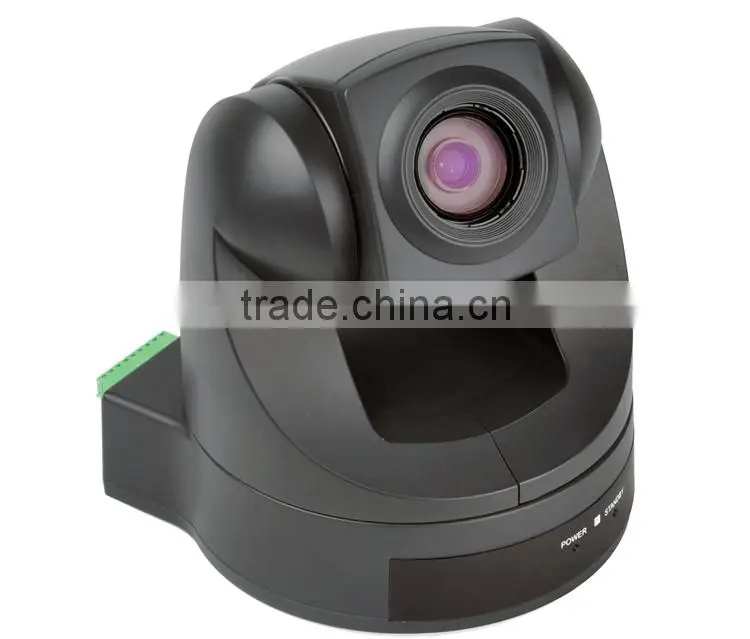

HD 1080P 18x Zoom HDMI CVBS PTZ Video Conference Camera for video conference system YC548-YARMEE
Features
- Adopting 1/2.9’’ CMOS 2.1 Megapixel Sensor;
- 2.1Megapixels 16:9 and 4:3;
- 18x Optical Zoom;
Video Format:1080p/30, 1080p/25, 720p/60, 720p/50, PAL/NTSC; - View Angle: 54.8°;
- Pan/Tilt Rotation Angle: Horizontal 355°, Vertical 120°;
- Max Pan Speed:80 degree/s; Max Tilt Speed: 60 degree/s;
- Support HDMI and CVBS(VIDEO) Simultaneously output, CVBS output video is better than Sony D70P;
- SD CVBS(VIDEO) can Output 16:9 and 4:3;
- PTZ Controlling Protocol: Sony VISCA, PELCO-P/D, with RS-232C, RS-422/485;
- Preset Position:9 by Remote IR Controller, 255 by Keyboard Controller;
- Remote Controller for controlling PTZ, Zoom, Preset Position etc;
Accessories
- 1 x HD Video Conference Camera;
- 1 x Power Adaptor;

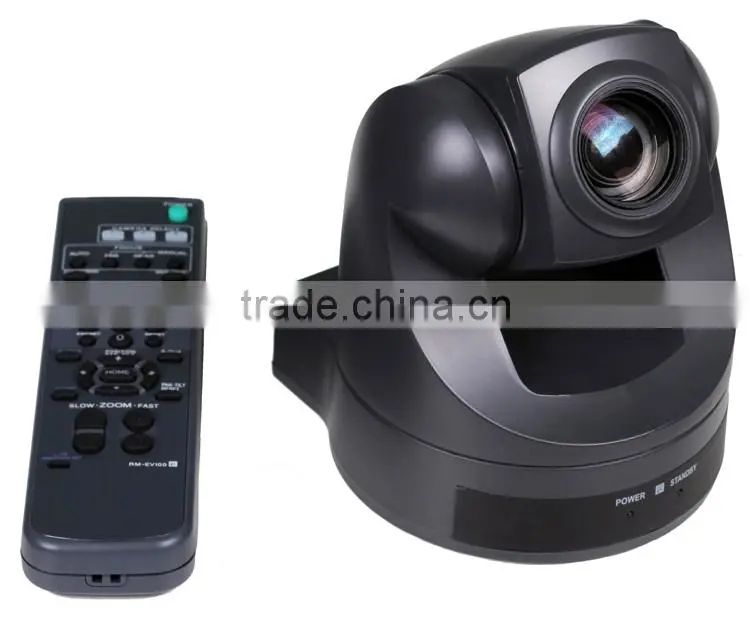

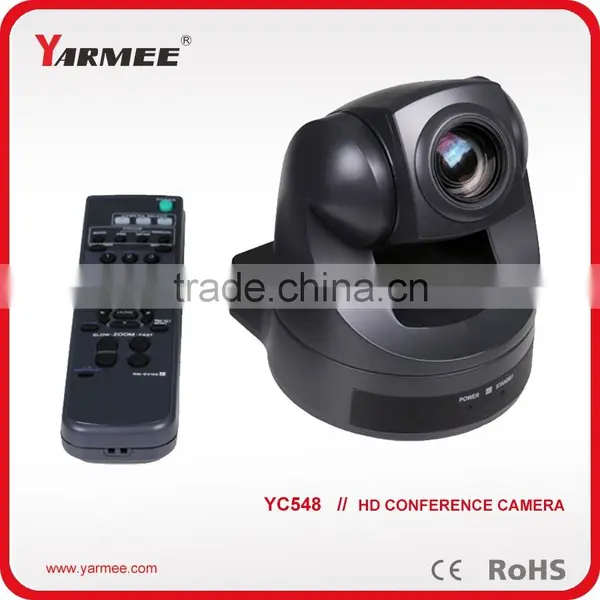

- 1 x Remote Controller;

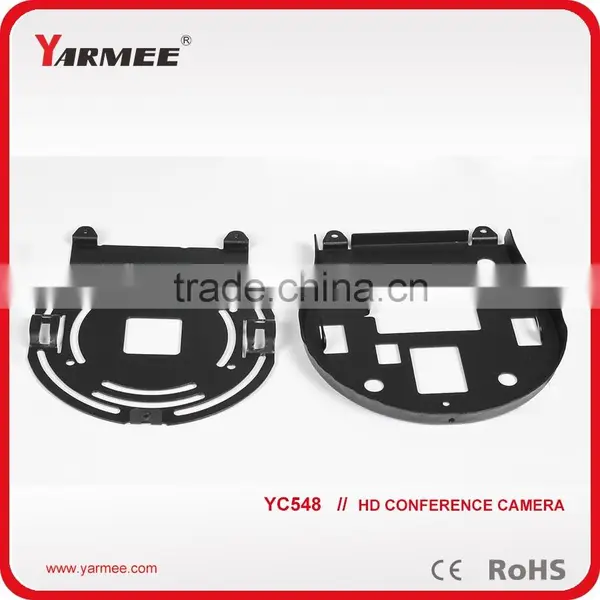

- 1 x Bracket;
- 1 x User Manual;
- 1 x Qualified Certificate Card.
It’s a HD 1080P HDMI CVBS PTZ Video Conference Camera, Supports 18x Optical Zoom, 355 degree Pan Rotation,120 degree Tilt Rotation, PELCO,VISCA Control Protocol with RS-232 and RS-422/485, Supports HDMI and CVBS(VIDEO) Video Output simultaneously.
Specifications
| Camera Model | YC548 |
| Image Sensor | 1/2.9’’ CMOS |
| Effective Pixels | Approx. 2.1 Mega pixels 16:9 and 4:3 |
| Signal System(HD) | 1080p/30, 1080p/25, 720p/60, 720p/50 |
| Signal System(SD) | PAL/NTSC |
| Horizontal Viewing Angle | 54.8°(W)~3.4°(T) |
| Focus system | Auto/Manual |
| Lens | 18x Optical Zoom, f = 4.7 to 84.6mm, F1.6 to F2.7 |

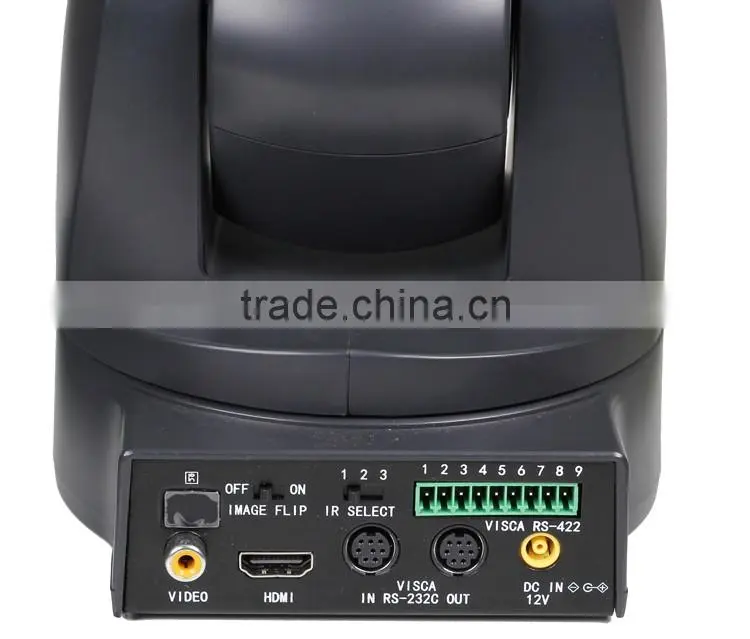

| HD Video Output | HDMI |
| SD Video Output | CVBS(VIDEO) |
| Minimum Illumination | Color: 0.1Lux, W/B: 0.01Lux |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
| Shutter Speed | 1/30 ~ 1/10,000s |
| Gain | Auto/Manual |
| S/N Ratio | ≥50dB |
| Pan/Tilt | Pan Angle: 355° (max. speed: 80°/s) Tilt Angle: 120° (max. speed: 60°/s) |
| Preset Position | 9 by remote control,255 by keyboard controller |
| Control Protocol | SONY VISCA, PELCO P/D |
| Camera Control Interface | RS-232C, RS-422/485 |
| Dimensions | (L)153×(W)134×(H)153mm |
| Weight | 1200g |
| Power | 10.8V~13.0V |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~+60℃ |
| Consumption | 30W |
