HD 1080p super zoom digital auto tracking video conference camera YC547-YARMEE
Features
- Adopting Sony 1/2.8’’ Progressive CMOS Sensor;
- 2.7 Megapixels;
- 20x Optical Zoom;
- Video Format:1080P/60, 1080P/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50; SD: NTSC/PAL;
- View Angle: 58.7°;
- Support Image Flip Function;
- Pan/Tilt Rotation Angle: Horizontal 355 degree, Vertical 120 degree;
- Pan Speed:80 degree/s; Tilt Speed: 60 degree/s;
- Support HDMI,HD-SDI, and Ypbpr HD Video Output;
- PTZ Controlling Protocol: PELCO-P/D, VISCA;
- Preset Position:9 by Remote IR Controller, 255 by Keyboard Controller;
- Remote Controller for controlling PTZ, Zoom, Preset Position etc.
Accessories
- 1 x HD Video Conference Camera;
- 1 x Power Adaptor;
- 1 x Remote Controller;

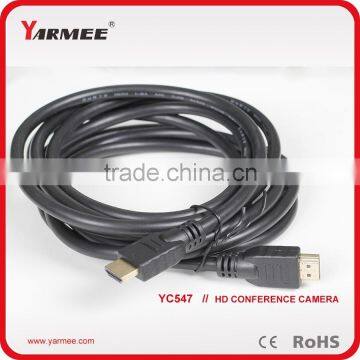

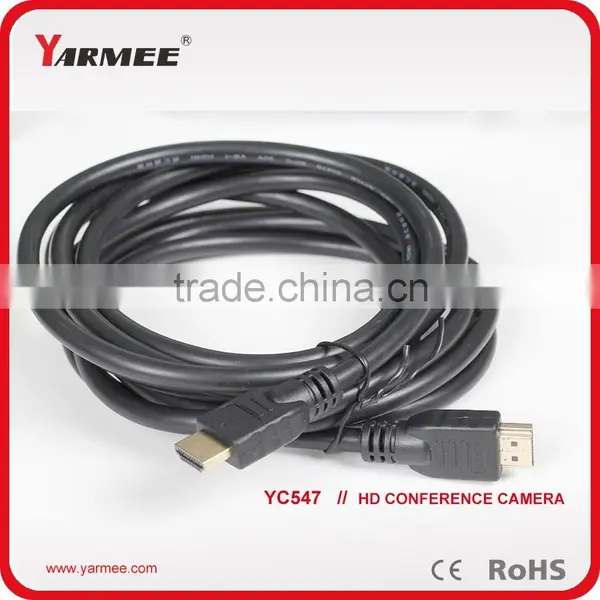

- 1 x Ypbpr cable;
- 1 x Bracket;
- 1 x User Manual;
- 1 x Qualified Certificate Card.
Model Number: YC547

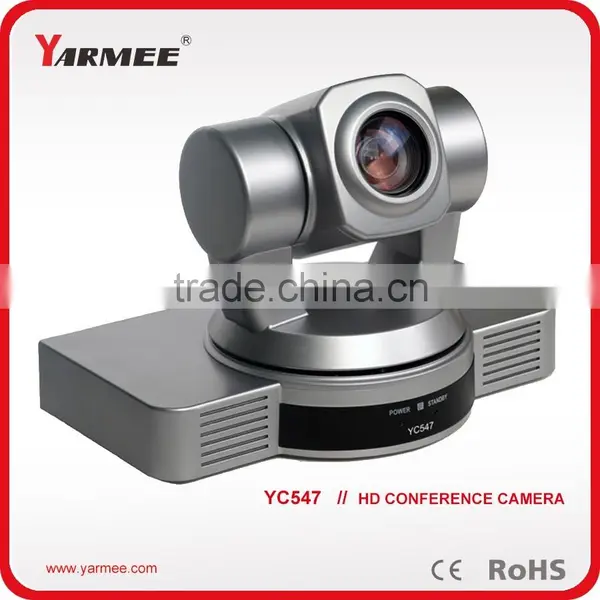

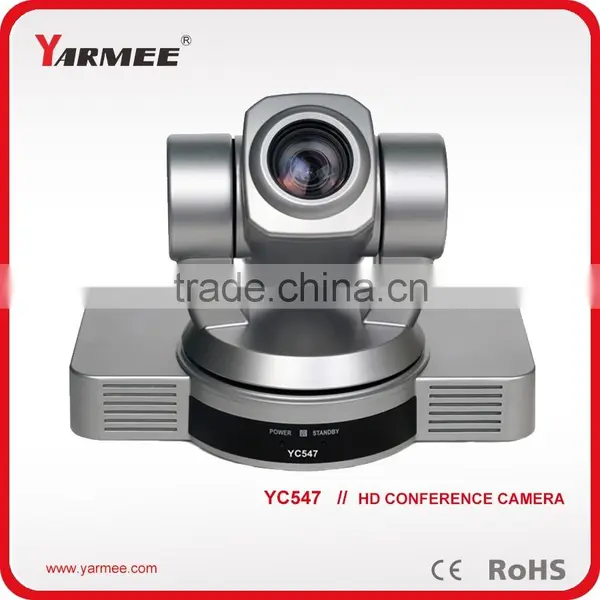

It’s a HD 1080P/60 PTZ Video Conference Camera, Supports 20x Optical Zoom, 355 degree Pan Rotation,120 degree Tilt Rotation, PELCO,VISCA Control Protocol, with HDMI, HD-SDI, Ypbpr HD Component Video Output.
Specifications
| Camera Model | YC547 |
| Image Sensor | Sony 1/2.8’’ Progressive CMOS Sensor |
| Effective Pixels | Approximately 2.7 Mega pixels(16:9) |
| Video Output Format | 1080P/60,1080pP/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50, SD: NTSC/PAL |
| Horizontal Viewing Angle | 58.7° (wide-angle) to 3.2° (far-end) when HD signal output |
| Focus system | Auto/Manual |
| Lens | 20x Optical Zoom, f = 4.7 to 94mm, F1.6 to F3.5 |
| Min. object distance | 10-800mm |
| Minimum Illumination | 0.1Lux |
| Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
| Shutter Speed | 1/30 ~ 1/10,000s |
| Gain | Auto/Manual |
| White Balance | Auto/ Indoor/Outdoor/One push Auto/Manual |
| S/N Ratio | ≥50dB |
| Pan/Tilt | Pan: +355° (max. speed: 80°/s) Tilt: 120° (max. speed: 60°/s) |
| Preset Position | 9 by remote commander,255 by keyboard controller |
| Camera Control | RS-232C, RS-422/485 with Sony VISCA, PELCO-P/D Protocol |

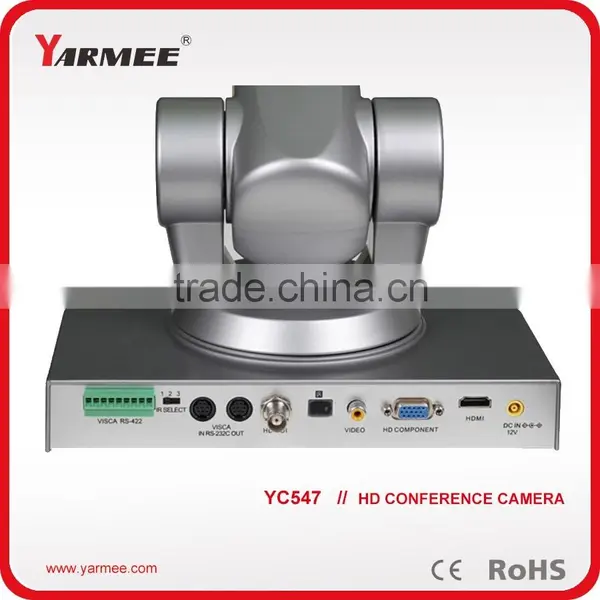

| Video Output | HD-SDI,HDMI, HD analog component (YPbPr), CVBS |
| Dimensions | (L)244×(W)158×(H)140mm |
| Weight | 1550g |
| Power | 10.8V~13.0V |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~+60℃ |
| Consumption | 30W |
