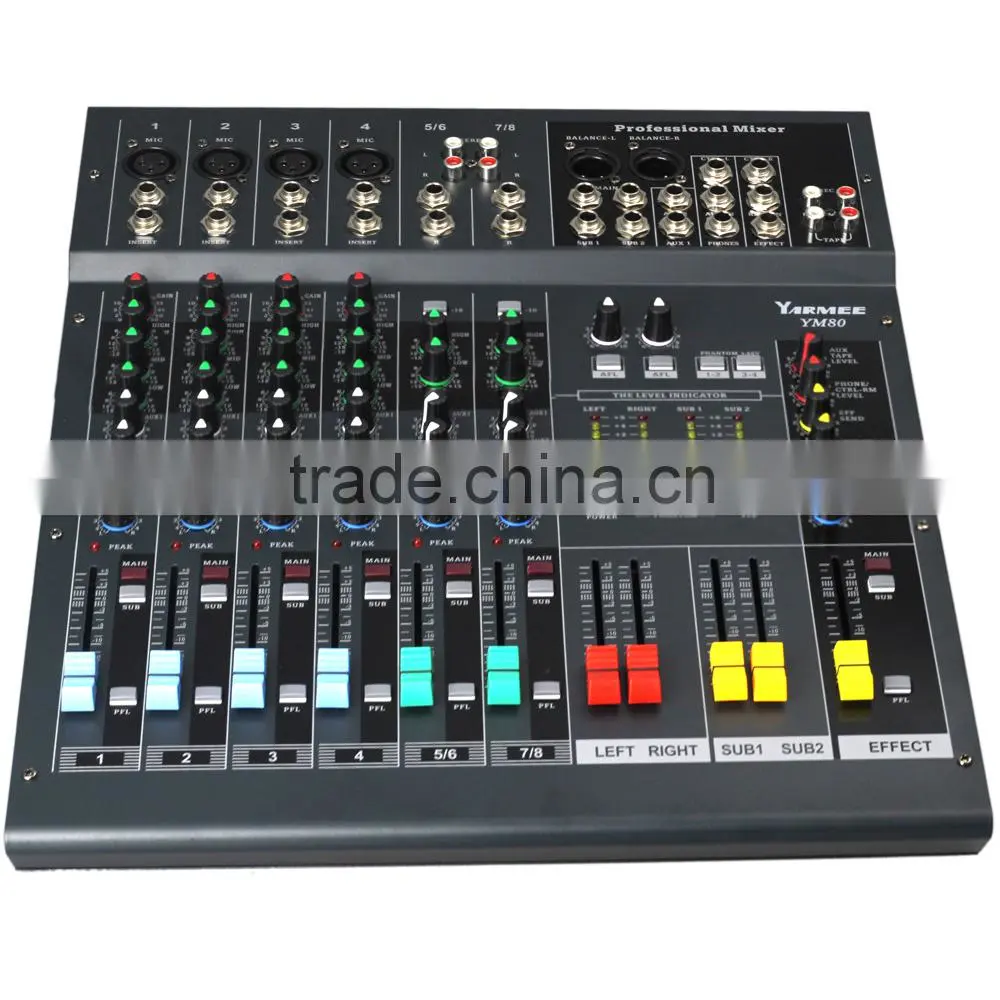

Karaoke mini audio mixer YM80 --YARMEE
Overviews
The pro mixing console is key to a professional audio system. Using pre amplifier as the main part, it can receive multichannel audio signals of different impedances and levels and can equalize, mix, distribute these signals. As long as you achieve the best SNR and timbre through adjustment, the pro mixing console will complete efficient and quality transmission of audio signals.
Technical Specifications of the YM80, YM120, YM160
YM80: 4 channels Mono and 4 channels Mic input, 2 channel stereo input
YM120: 8 channels Mono and 8 channels Mic input, 2 channel stereo input
YM160: 12 channel Mono and 12 channels Mic input, 2 channel stereo input
High-performance Microphone Pre amplifiers with Switchable Phantom Power
3-band Channel EQ and High-pass Filters
Built-in Channel Compressors
Smooth 60-millimeter Faders & Illuminated Channel ON Switches
Bright Meters for Visual Level Monitoring
Technical Specification
| Model | YM80 | YM120 | YM160 |
| Max. Output Level | 19dBm (1kHz, THD=0.5%) | 19dBm (1kHz, THD=0.5%) | 19dBm (1kHz, THD=0.5%) |
| -75dB | -75dB | -75dB | |
| 71dB | 71dB | 71dB | |
| 40mW (1kHz, THD-0.5%, 200 Ohm) | 40mW (1kHz, THD-0.5%, 200 Ohm) | 40mW (1kHz, THD-0.5%, 200 Ohm) | |
| LOW: 80Hz ±15dB | LOW: 80Hz ±15dB | LOW: 80Hz ±15dB | |
| MID:2.5kHz ±15dB | MID:2.5kHz ±15dB | MID:2.5kHz ±15dB | |
| HIGH: 12kHz ±15dB | HIGH: 12kHz ±15dB | HIGH: 12kHz ±15dB | |
| Mono: -55dB~0dB | Mono: -55dB~0dB | Mono: -55dB~0dB | |
| Stereo: -10Db~0dB | Stereo: -10Db~0dB | Stereo: -10Db~0dB | |
| 20Hz~20kHz +1.0, -3dB | 20Hz~20kHz +1.0, -3dB | 20Hz~20kHz +1.0, -3dB | |
| T.H.D | Less than 0.05 (1kHz,0.775V) | Less than 0.05 (1kHz,0.775V) | Less than 0.05 (1kHz,0.775V) |
| 25W | 35W | 45W | |
| 400x400x45 | 443x400x45 | 560x400x90 | |
| 4.41 kg | 5.57 kg | 7 kg |
