China wholesale 360 degrees pan video conference camera video conference camera
Model Number: YC549

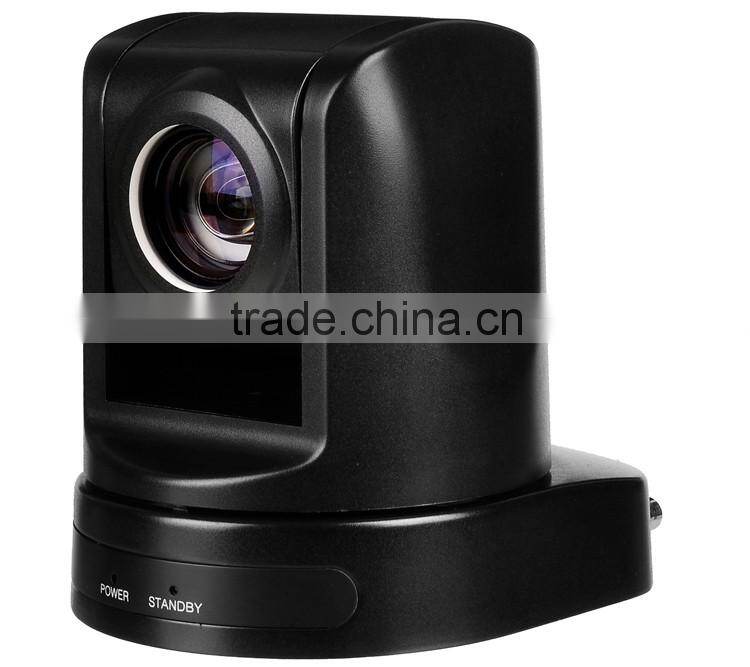

It’s a HD 1080P/60 PTZ Video Conference Camera, Supports 20x Optical Zoom, 355 degree Pan Rotation,120 degree Tilt Rotation, PELCO,VISCA Control Protocol, with HDMI, HD-SDI, Ypbpr HD Component Video Output.
Features:
1.Adopting Sony 1/2.8’’ Progressive CMOS Sensor;
2.2.7 Megapixels;
3.20x Optical Zoom;
4.Video Format:1080P/60, 1080P/50, 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50; SD: NTSC/PAL;
5.View Angle: 58.7°;
6.Support Image Flip Function;
7.Pan/Tilt Rotation Angle: Horizontal 355 degree, Vertical 120 degree;
8.Pan Speed:80 degree/s; Tilt Speed: 60 degree/s;
9.Support HDMI,HD-SDI, and Ypbpr HD Video Output;
10.PTZ Controlling Protocol: PELCO-P/D, VISCA;
11.Preset Position:9 by Remote IR Controller, 255 by Keyboard Controller;
12.Remote Controller for controlling PTZ, Zoom, Preset Position etc.
Accessories:
*1 x HD Video Conference Camera;
*1 x Power Adaptor;
*1 x Remote Controller;
*1 x Ypbpr cable;

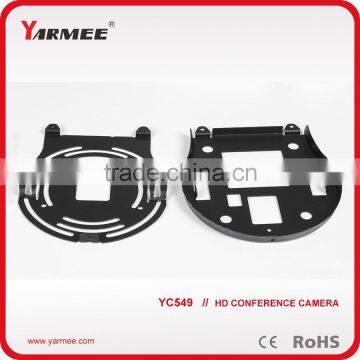

*1 x Bracket;
*1 x User Manual;
*1 x Qualified Certificate Card.
Model Number: YC549
It’s a HD 1080P/60 PTZ Video Conference Camera, Supports 20x Optical Zoom, 355 degree Pan Rotation,120 degree Tilt Rotation, PELCO,VISCA Control Protocol, with HDMI, HD-SDI, Ypbpr HD Component Video Output.
Specifications:
Camera Model | YC549 |
Image Sensor | Sony 1/2.8’’ Progressive CMOS Sensor |
Effective Pixels | Approximately 2.7 Mega pixels(16:9) |
Video Output Format | 1080P/60,1080pP/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50, SD: NTSC/PAL |
Horizontal Viewing Angle | 58.7° (wide-angle) to 3.2° (far-end) when HD signal output |
Focus system | Auto/Manual |
Lens | 20x Optical Zoom, f = 4.7 to 94mm, F1.6 to F3.5 |
Min. object distance | 10-800mm |
Minimum Illumination | 0.1Lux |
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/ Bright |
Shutter Speed | 1/30 ~ 1/10,000s |
Gain | Auto/Manual |
White Balance | Auto/ Indoor/Outdoor/One push Auto/Manual |
S/N Ratio | ≥50dB |
Pan/Tilt | Pan: +355° (max. speed: 80°/s) Tilt: 120° (max. speed: 60°/s) |
Preset Position | 9 by remote commander,255 by keyboard controller |
Camera Control | RS-232C, RS-422/485 with Sony VISCA, PELCO-P/D Protocol |

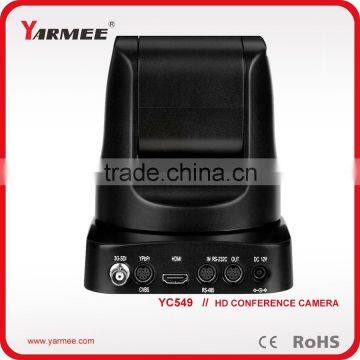

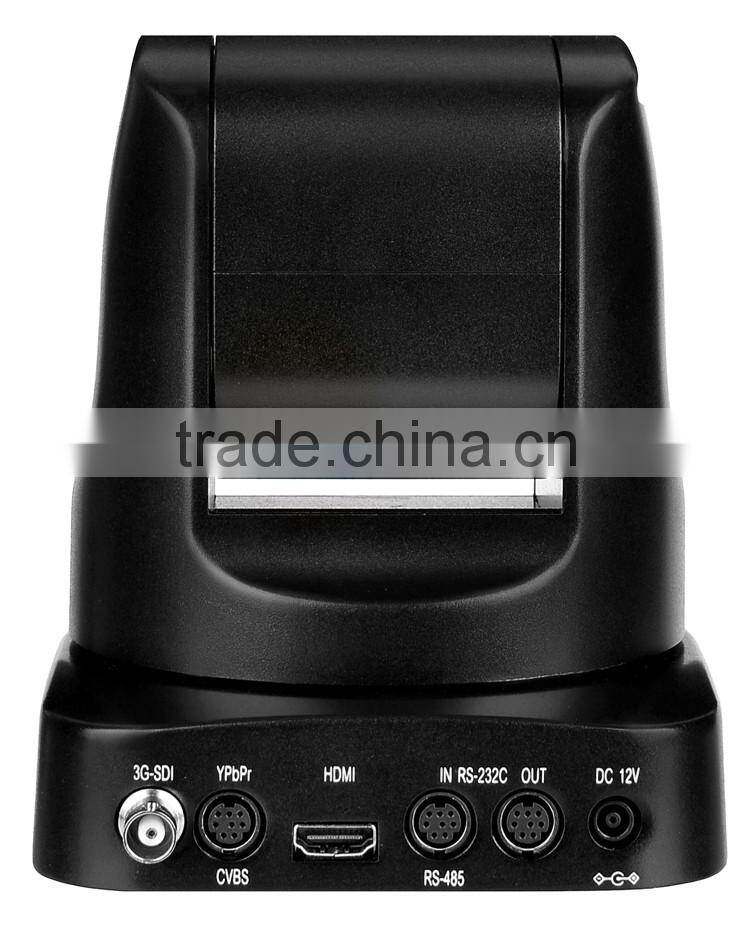

Video Output | HD-SDI,HDMI, HD analog component (YPbPr), CVBS |
Dimensions | (L)244×(W)158×(H)140mm |
Weight | 1550g |
Power | 10.8V~13.0V |
Operating Temperature | 0℃~50℃ |
Storage Temperature | -20℃~+60℃ |
Consumption | 30W |
1) Door to door services by courier is ok. By TNT,FEDEX,UPS,DHL,EMS,etc to all countries
2) By air or sea is available.
1. Payment: L/C at sight, or Bank transfer with 30% deposit, 70% balance to be paid before shipment
2. Production lead time: 5-15 days upon deposit according to different quantity.
3. Shipping port: Shenzhen of China, Hongkong port. Or any seaport which customers offer.
About Us
YARMEE ELECTRONIC TECHNOLOGY CO., LIMITED engaged in conference system & microphone which collects together research and development (R&D), production and sale. Professional enterprise of the series of Microphones, various types of microphone.
Main products are: simultaneous interpretation, Wireless Microphones, Conference Microphones, gooseneck microphones, wired microphones, and drum microphones, UHF wireless microphones,teaching microphones, recording microphones,and microphone accessories.
Our Factory
YARMEE is located in Yuewang Building, Baiyun District,Guangzhou, Guangdong. With offices and manufacturing facilities, transportation is convenient!
